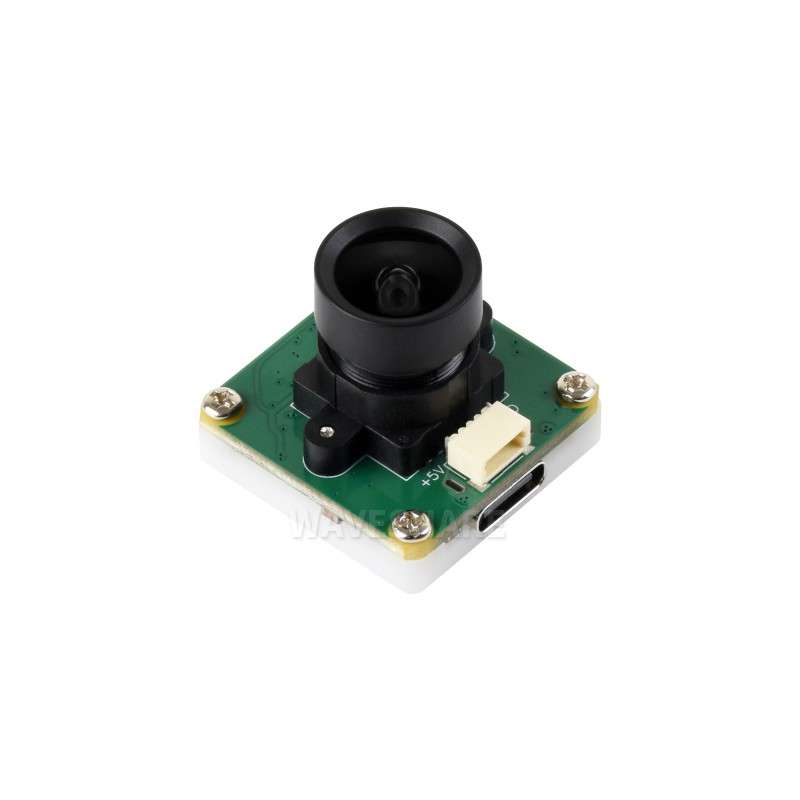

OV4689 4MP USB Camera (A), 92° FOV, supports Type-C port and SH1.0 4PIN header, distortion-free, plug and play (WS-34767)
WS-34767
€20.30
16.50 € tax excl.
OV4689 4MP USB Camera (A), 92° FOV, supports Type-C port and SH1.0 4PIN header, distortion-free, plug and play (WS-34767)
OV4689 4MP USB Camera (A), 92° FOV, supports Type-C port and SH1.0 4PIN header, distortion-free, plug and play (WS-34767)
- Part No.: OV4689 4MP USB Camera (A)
OV4689 4MP USB Camera (A), 92° FOV, supports Type-C port and SH1.0 4PIN header, distortion-free, plug and play
OV4689 4MP USB camera
OV4689 sensor | USB 2.0 Type-C port | 92° distortion-free lens
Specifications
| Pixels | 4MP | |
|---|---|---|
| Sensor | OV4689 | |
| Interface | USB2.0 Type-C port / SH1.0 4PIN header | |
| Camera | Sensor size | 1/3 inch |
| Aperture (F) | 2.7 | |
| Focal length (EFL) | 2.88mm | |
| Field of view (FOV) | 92° | |
| Distortion | <-0.2% | |
| Focusing | Fixed-focus | |
| Mount | M12 | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 2688 × 1520 | |
| Video recording | MJPG: 30 FPS 2688 × 1520 30 FPS 2560 × 1440 60 FPS 1920 × 1080 60 FPS 1280 × 720 60 FPS 640 × 480 YUY2: 2 FPS 2688 × 1520 2 FPS 2560 × 1440 5 FPS 1920 × 1080 10 FPS 1280 × 720 30 FPS 640 × 480 |
|
| Operating voltage | 5V ± 5% | |
| operating temperature | -10°C ~ 60°C | |
| Module size | 25.00 × 25.00 (mm) | |
4MP High resolution
Supports 60 FPS output, suitable for capturing details
Better Low-light sensitivity
OV4689 adopts Backside-Illuminated (BSI) technology, providing better
imaging effect in low light condition
Plug and Play, Easy Connection
Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included
Pinout Definition
Outline dimensions
Balenie Obsahuje / Package Content
- OV4689 4MP USB Camera (A) x1
- SH1.0 4PIN dual plug cable x1
