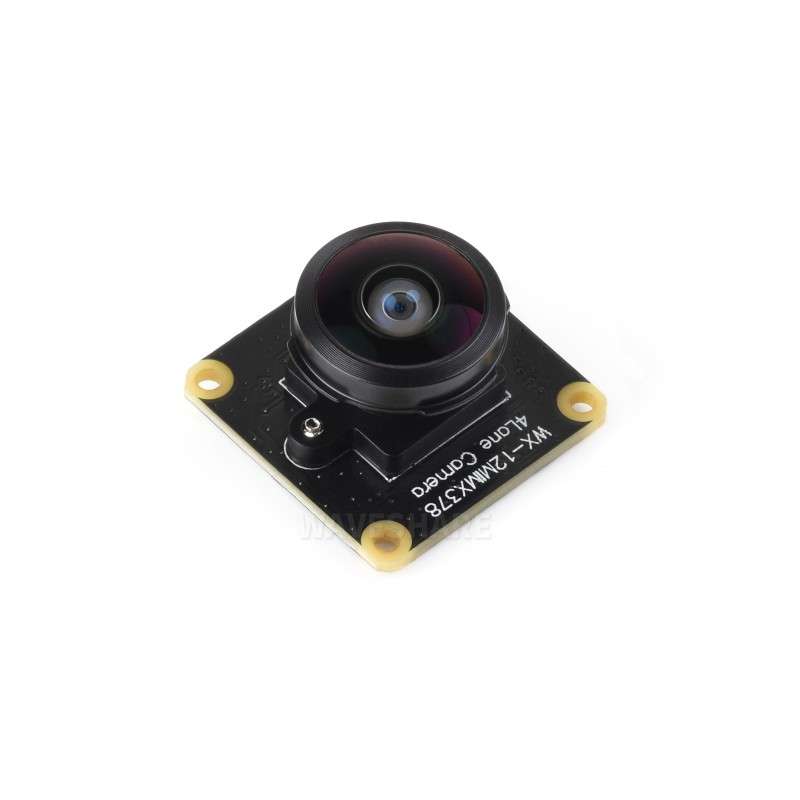

IMX378-190 12.3MP Fisheye Lens Camera Type B, 190° FOV, Rolling Shutter, Raspberry Pi  (WS-34709)

IMX378-190 12.3MP Fisheye Lens Camera Type B, 190° FOV, rolling shutter, compatible with Raspberry Pi series boards

IMX378-190 Fisheye Lens Camera

12.3MP | Fisheye | 190° FOV

Compatible with Raspberry Pi series boards



Device & System Support



Raspberry Pi series

Supports Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W

CM3 / 3+ / 4 / 5 (extra adapter board required)

Specifications

Sensor	IMX378	CMOS size	1/2.3"
Camera type	color	Pixels	12.3MP (4056 × 3040)
Shutter	Rolling Shutter	Aperture	F2.4
Distortion	< 58%	Field of view	190°
Focal length	6.5mm	Focusing	Fixed-focus

High definition, wide angle

12.3MP HD resolution for clearer imaging
190° wide angle fisheye lens, cover all in sight

Working with Raspberry Pi

Compatible with Raspberry Pi series, CM3 / 3+ / 4 / 5 series, and Zero series

Connecting with Raspberry Pi 4



Connecting with Raspberry Pi 5



Connecting with Zero 2 W



Connecting with CM5 IO Board

for reference only, please refer to the package content for detailed part list.

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/IMX378-190_12.3MP_Camera_B

Balenie Obsahuje / Package Content

1. IMX378-190 12.3MP Camera (B) x1
2. 15PIN FFC 1.0mm pitch cable (opposite) ~160mm x1
3. FPC cable ~160mm x1
