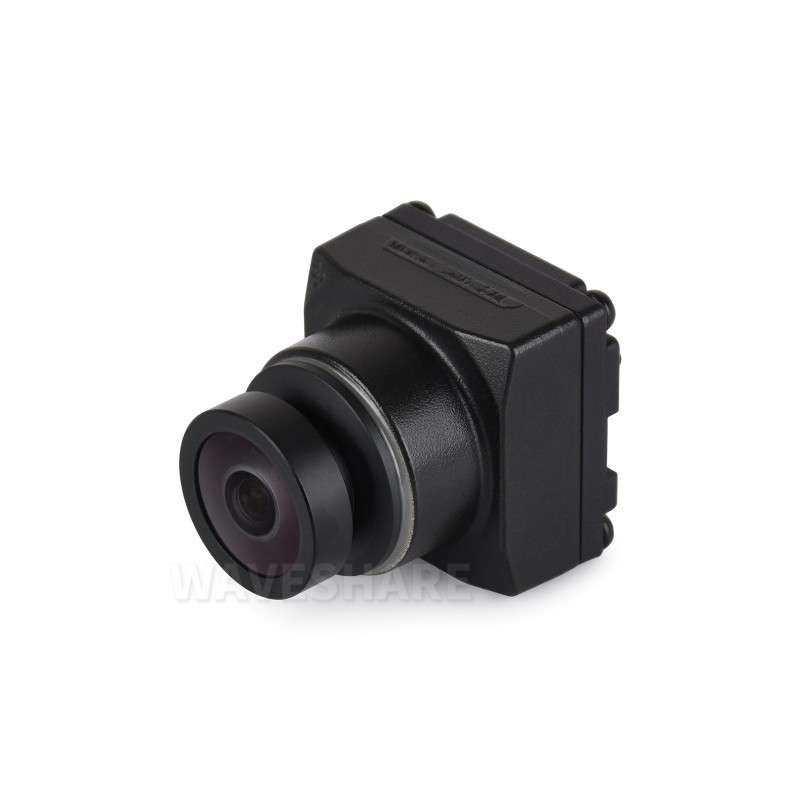

2MP GMSL Camera Module, Automotive-grade Image Sensor, ISP, AA Lens, IP67 Protection Degree (WS-35539) 118.4° Wide FOV
WS-35539
€121.77
99.00 € tax excl.
2MP GMSL Camera Module, Automotive-grade Image Sensor, ISP, AA Lens, IP67 Protection Degree (WS-35539) 118.4° Wide FOV
2MP GMSL Camera Module, Automotive-grade Image Sensor, ISP, AA Lens, IP67 Protection Degree (WS-35539) 118.4° Wide FOV
- With 118.4° Wide FOV
2MP GMSL Camera Module, Automotive-grade Image Sensor, Built-in ISP, AA Lens, IP67 Protection Degree And More Durable
GMSL 2MP Camera
2MP | IP67 Water-resistant | GMSL2 communication protocol
version options
GMSL-2MP-Camera-A
With 195° Ultra-Wide FOV
GMSL-2MP-Camera-B
With 118.4° Wide FOV
Product Introduction
The GMSL-2MP-Camera camera module adopts a 2MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717F GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.
Specifications
| Product | GMSL-2MP-Camera-A | GMSL-2MP-Camera-B | |
|---|---|---|---|
| Sensor | Model | 2.51MP RGGB | |
| Resolution | 1920 × 1080 | ||
| CMOS Size | 1/2.57inch | ||
| Pixel Size | 3.0 × 3.0 (um) | ||
| Camera | FOV | 195°(H) × 152°(V) | 118.4°(H) × 62.6°(V) |
| Aperture | 2 | ||
| Focal Length | 1.51mm | 3.04mm | |
| Depth of Field | 0.083 m ~ ∞ (fixed focus at 0.4m) | 0.47 m ~ ∞ (fixed focus at 1.4m) | |
| Distortion | < -155% | < -92.2% | |
| ISP | Built-in | ||
| Frame Rate | 1920 × 1080 at 30fps | ||
| High Dynamic Range | Supported | ||
| LED Flicker Mitigation | Supported | ||
| Output Format | YUV422 at 8bit | ||
| Serializer | Model | MAXIM MAX96717F | |
| I2C Address | 0x80 (8-bit address) | ||
| Camera Interface | Fakra Z-Coded connector | ||
| Operating Voltage | 9 ~ 12V PoC | ||
| Operating current | < 200mA at 12V | ||
| Operating Temperature | -40°C ~ 85°C | ||
| Protection Grade | IP67 | ||
Application Example
* for reference only, the Raspberry Pi 5 and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.
Outline dimensions
GMSL-2MP-Camera-A
GMSL-2MP-Camera-B
Balenie Obsahuje / Package Content
GMSL-2MP-Camera-B
- GMSL-2MP-Camera-B x1
- GMSL camera cable ~2m (coaxial cable with dual female connectors) x1
