3MP | IP67 Protection | GMSL2 communication protocol

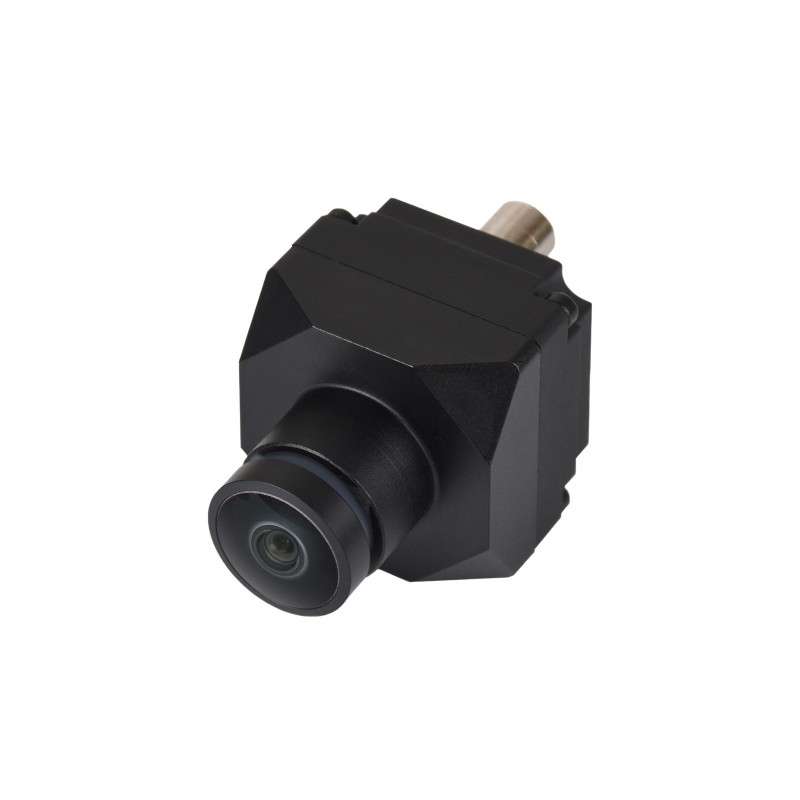

The GMSL-3MP-Camera-A camera module adopts a 3MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717G GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.

• Adopts a 3MP automotive-grade CMOS image sensor
• Ultra-wide FoV with a horizontal field of view (HFoV) of up to 120°, providing a wider view of the surroundings
• Built-in ISP optimizes image quality and reduces the processing load on the host controller

• Adopts the GMSL2 protocol with a data rate of up to 6Gbps
• High bandwidth, low latency, secure connection, and strong immunity to interference
• Supports long-distance transmission and enables remote deployment over a single coaxial cable

Supports 120dB HDR, preserving details in both shadows and highlights, even in challenging scenes with intense light, backlighting, or high contrast

* for reference only, the Raspberry Pi 5 and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.
