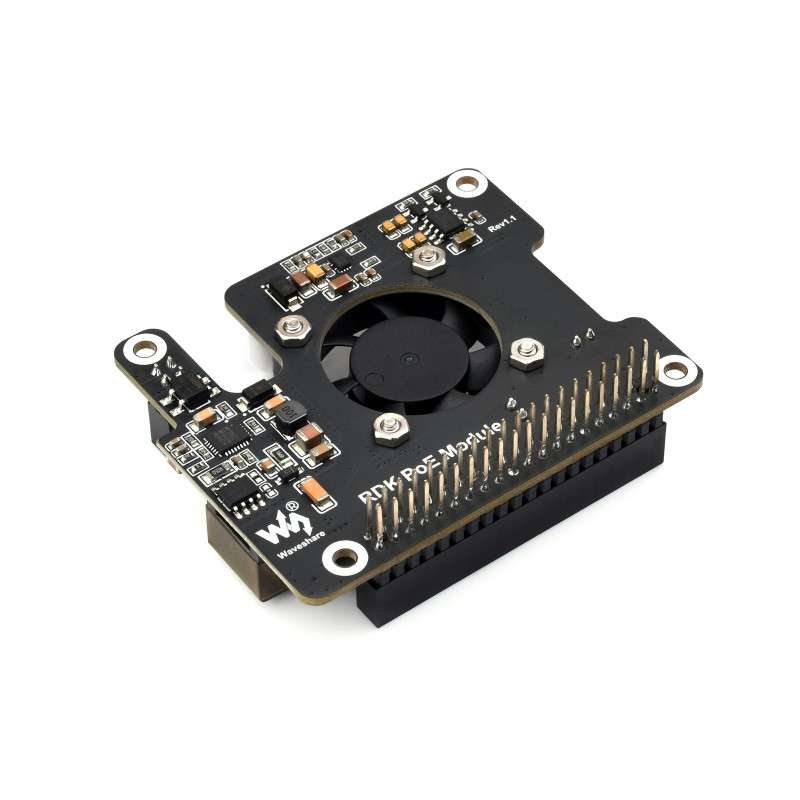

Power Over Ethernet Expansion Board For RDK X5, Onboard Cooling Fan, Metal Heatsink, 802.3af/at (WS-29927)
WS-29927
€23.06
18.75 € tax excl.
Power Over Ethernet Expansion Board For RDK X5, Onboard Cooling Fan, Metal Heatsink, 802.3af/at (WS-29927)
Power Over Ethernet Expansion Board For RDK X5, Onboard Cooling Fan, Metal Heatsink, 802.3af/at (WS-29927)
Power over Ethernet Expansion Board For RDK X5, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at Network Standard
PoE Expansion Board For RDK X5
Suitable For D-Robotics RDK X5 Development Board, Supports 802.3af/at Network Standard
Onboard 5V and 12V power outputs to meet the needs of more peripherals
Features
This is a 802.3af/at-compliant Power Over Ethernet accessory for the RDK X5 development board. By using this module and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your RDK X5 in only one Ethernet cable.
- Standard 40PIN GPIO header, suitable for D-Robotics RDK X5 development board
- PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
| PoE power input | 38V~57V DC in | |
|---|---|---|
| Power output | GPIO header 5V 4.5A (MAX) | |
| 2pin header 12V 2A (MAX) | ||
| Outline dimensions | 56.5 × 70.0 (mm) | |
| network standard | IEEE 802.3af/at PoE | |
Suitable for RDK X5 development board
Standard RDK X5 40PIN GPIO stackable header, allows connecting other expansion boards
Power Over Ethernet
providing both network connection and power supply for your RDK X5 in one cable
* for reference only, the RDK X5 and switch are NOT included.
Onboard 5V & 12V header outputs
5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to RDK X5
Onboard active cooling fan
Accelerates Cooling Effect, More Stable Performance
Onboard high-power buck chip
Incorporates the original voltage buck chip, providing up to 5A under sufficient heat dissipation condition
Installation Introduction
Install the metal heatsink on the development board first, and then use the screws in the package to secure the PoE expansion board as shown in the picture below
* for reference only, please refer to the Package Content for detailed part list.
Product Show
* for reference only, please refer to the Package Content for detailed part list.
Outline dimensions
Balenie Obsahuje / Package Content
- RDK PoE Module × 1
- Heatsink × 1
- Screws pack × 1
