EMW3162 WIFI Shield for Arduino/Nucleo (Waveshare)

Overview

EMW3162 WIFI Shield consists of a base board and a WiFi module EMW3162. It allows you to connect your Arduino/Nucleo board with the Internet. Thanks to the EMW3162 WIFI Shield, WiFi communication will become easy for devices that feature Arduino connectivity.

Features

The WiFi module EMW3162 :

• As easy to use as an serial module with the provided serial transparent transmission firmware
• High stability, hardly goes down
• Ultra low power consumption, online standby 7mA only

The base board :

• Compatible with Arduino interface, use UART only
• Works as an Arduino WiFi Shield, connects to Arduino boards like : UNO, Leonardo, Nucleo, Xnucleo, etc.
• Works as an Arduino WiFi board, allows connecting with Arduino shields
• Onboard USB to UART converter FT230XS, for UART debugging and/or firmware updating
• Onboard WiFi TX/RX LEDs, indicating the WiFi communication status
• Supports EasyLink fast matching (instant networking by pushing the SSID and password of the wireless router via smart phone APP)
• Supports one-key recovery to factory setting (no need to flash the firmware for configuration errors)
• Flexible boot mode configuration
• 500mA fast self-recovery fuse, stable and safe

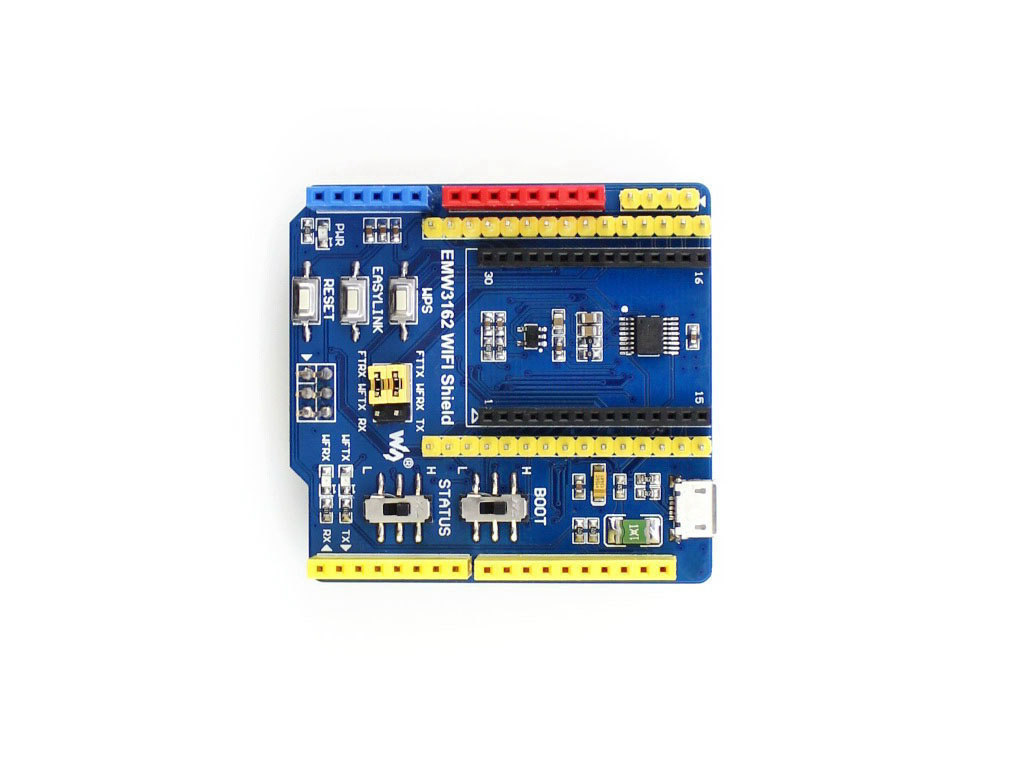

What's on Board

1. Arduino interface : for connecting with Arduino boards and/or Arduino shields
2. EMW3162 connector : for connecting the WiFi module EMW3162
3. EMW3162 extend pin headers : access to the common used pins of EMW3162
4. SWD interface : for programming and debugging
5. USB TO UART interface : for UART debugging and/or firmware updating
6. FT230XS : onboard USB to UART converter
7. RT9193-33 : onboard 3.3V regulator
8. Fuse : 500mA fast self-recovery fuse
9. BOOT switch
   • turn to H, the BOOT pin will be connected to 3.3V
   • turn to L, the BOOT pin will be connected to GND
10. STATUS switch
    • turn to H, the STATUS pin will be connected to 3.3V
    • turn to L, the STATUS pin will be connected to GND
11. WiFi indicator : LEDs for indicating the WiFi communication status
12. WPS key
    • press the key, the EMW3162 will start WPS matching
    • press the key and hold it for 5 seconds, the EMW3162 will recover to factory setting
13. EASYLINK key
    • press the key, the EMW3162 will start EasyLink matching
14. RESET key
15. Power indicator
16. WiFi serial port configuration jumpers
    • connect the WFRX to FTTX, WFTX to FTRX respectively, you can communicate with the EMW3162 through USB TO UART interface
    • connect the WFRX to TX, WFTX to RX respectively, you can communicate with the EMW3162 through Arduino interface

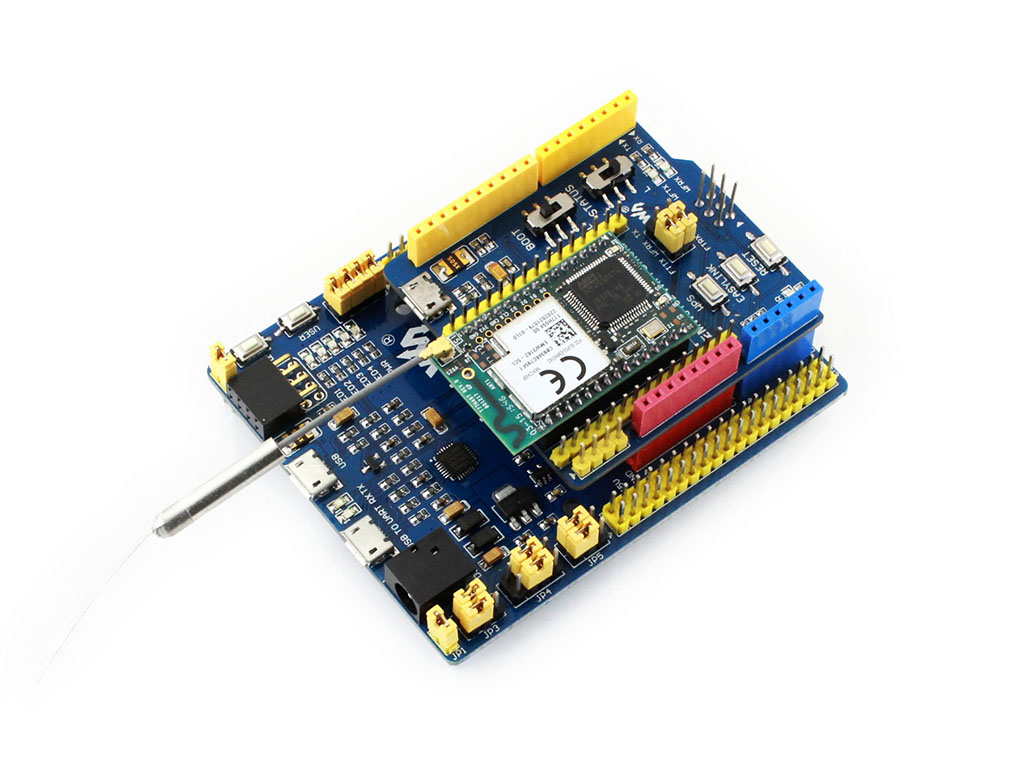

Photos

Photos are for reference only.

Development Resources

Wiki : www.waveshare.com/wiki/EMW3162_WIFI_Shield
