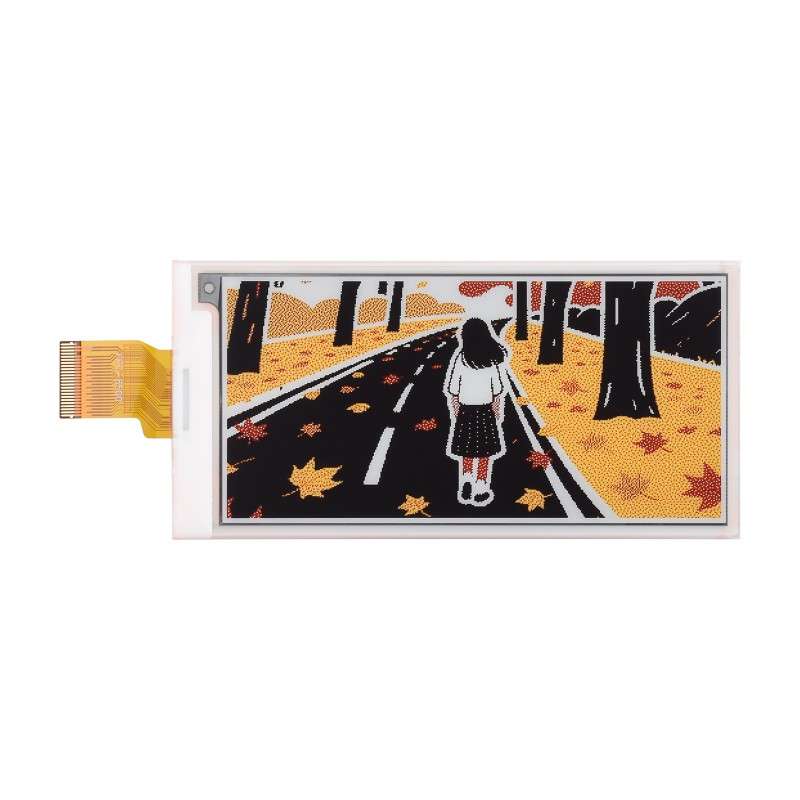

3.5inch E-Paper Display (G), E-Ink Display, 384 × 184 Pixels, Red/Yellow/Black/White (WS-31370)
WS-31370
€12.29
9.99 € tax excl.
3.5inch E-Paper Display (G), E-Ink Display, 384 × 184 Pixels, Red/Yellow/Black/White (WS-31370)
3.5inch E-Paper Display (G), E-Ink Display, 384 × 184 Pixels, Red/Yellow/Black/White (WS-31370)
3.5inch E-Paper Display (G), E-Ink Display, 384 × 184 Pixels, Red/Yellow/Black/White
3.5″ e-Paper (G)
low power, wide viewing angle, paper-like effect without electricity
Ideal for price tags, shelf labels, industrial instruments...
Note: the driver board is optional, please refer to the Package Content for detailed part list
- Size
3.5″ - Resolution
384 × 184 - Viewing Angle
>170° - Display Color
Red/Yellow/Black/White - Grey Scale
2
- Size
- Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
Version Options
3.5inch e-Paper (G)
raw display, without driver board
3.5inch e-Paper Module (G)
with driver board
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32)
- Optional for e-Paper driver board
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Arduino/STM32/ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 91.75 × 45.03 × 1.00 (mm) | fast refresh time | 15s |
| with driver board: 94.00 × 47.50 (mm) | full refresh time | 20s | |
| display size | 79.68 × 38.18 (mm) | refresh power | <30mW |
| DOT PITCH | 0.2075 × 0.2075 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 384 × 184 pixels | viewing angle | >170° |
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Optional for e-Paper driver board
Onboard SPI Control Interface, for use with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32
| PWR | Power on/off control |
|---|---|
| BUSY | Busy status output pin |
| RST | External reset, low active |
| DC | Data/Command selection (high for data, low for command) |
| CS | SPI chip selection, low active |
| SCLK | SPI SCK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Outline dimensions
3.5inch e-Paper (G)
3.5inch e-Paper Module (G)
Balenie Obsahuje / Package Content
3.5inch e-Paper (G)
3.5inch e-Paper (G) × 1
WS-31370
