10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface (WS-29790)

10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface (WS-29790)

Name: 10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface (WS-29790)
Brand: Waveshare Electronics
SKU: WS-29790
Price: 103.32 EUR
Availability: PreOrder

Reference WS-29790

€103.32

84.00 € tax excl.

Description
Product Details

10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface (WS-29790)

with driver HAT

10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface

10.85″ e-Paper display

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list

- Size10.85″
- Resolution1360×480
- Viewing Angle>170°
- Display ColorBlack/White
- Grey Scale2

- CommunicationSPI
- Display PanelE-paper
- ExperiencePaper-like
- EnvironmentAmbient Light Required
- Display TypePassively Reflective

HAT+ StandardImproves interoperability

Version Options

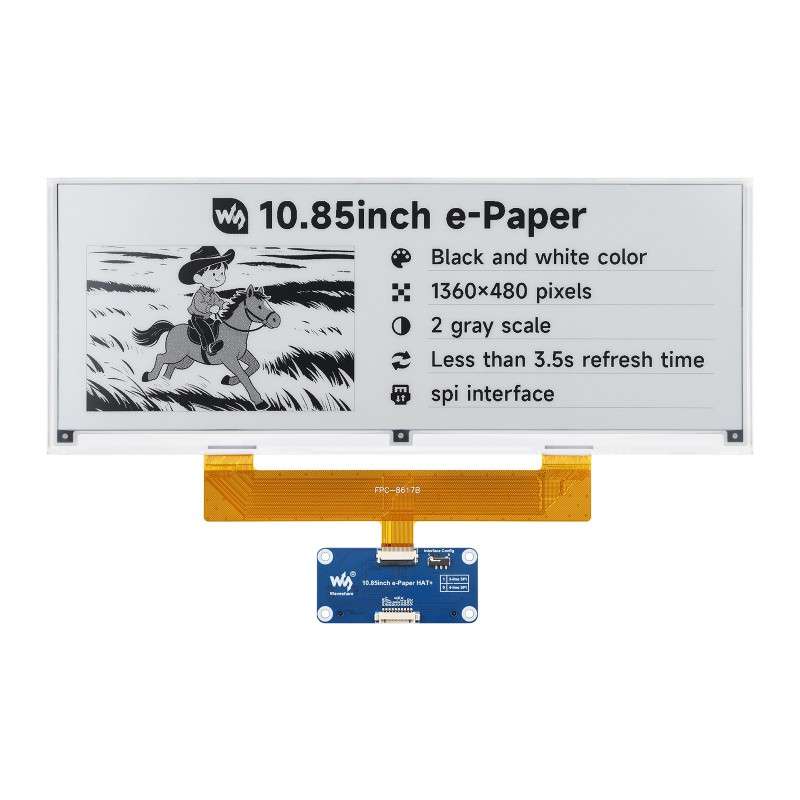

10.85inch e-Paper
raw display, without driver board

10.85inch e-Paper HAT+
with e-Paper Driver HAT

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)
Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	Black/White
operating voltage	with driver HAT: 3.3V/5V	display color	Black/White
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	Raw display: 270.56 × 105.92 × 1.20 (mm)	partial refresh time	0.6s
outline dimensions	e-Paper Driver HAT: 65.00 × 30.50 (mm)	full refresh time	3.5s
display size	259.76 × 91.68 (mm)	refresh power	<50mW
DOT PITCH	0.191 × 0.191 (mm)	standby current	<0.01uA (almost none)
RESOLUTION	1360 × 480 pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards, Jetson Nano

10.85inch e-Paper Driver HAT, standard Raspberry Pi 40PIN GPIO header

* for reference only, the Raspberry Pi in the picture is NOT included

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32

10.85inch e-Paper Driver HAT front view, interface introduction

PWR	Power control pin
BUSY	Busy status output
RST	External reset, low active
DC	Data / Command selection (high for data, low for command)
CS_S	e-paper S area chip selection, low active
CS_M	e-paper M area chip selection, low active
SCLK	SPI SCK pin
DIN	SPI MOSI pin
GND	Ground
VCC	3.3V/5V
