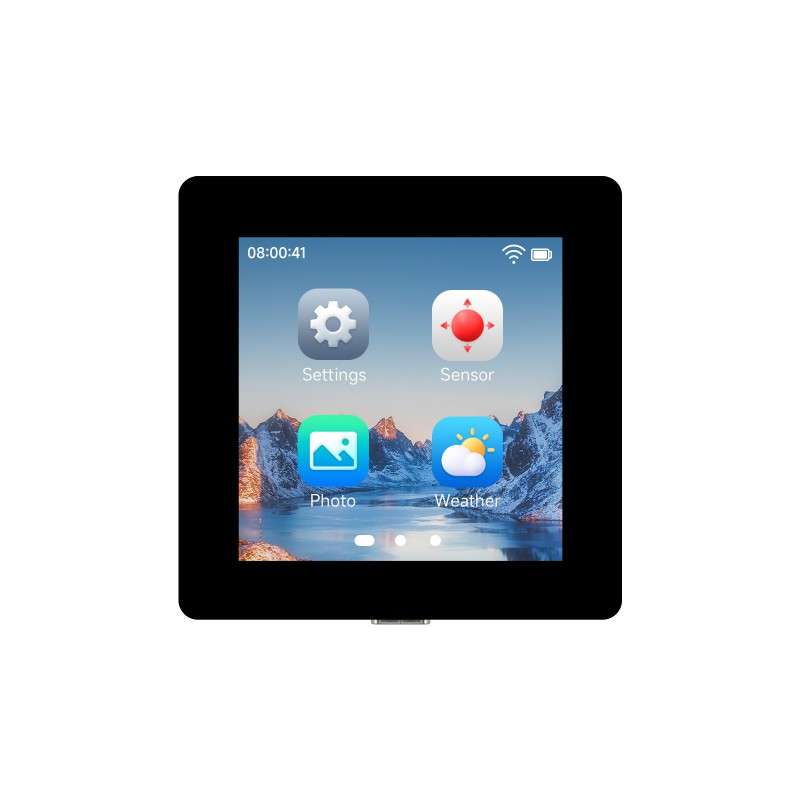

The ESP32-C5-LCD-2.73 is a low-cost, high-performance microcontroller development board designed by Waveshare. With a compact form factor, it integrates 2.73inch LCD display, three programmable buttons, TF card slot, Lithium Batt charging management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, temperature & humidity sensor, and other peripherals. It is ideal for GUI display, button interaction, data logging, motion sensing, environmental monitoring, and Batt-powered applications, enabling rapid development and integration into end products.

• Equipped with a high-performance ESP32-C5 32-bit RISC-V processor, up to 240MHz main frequency
• Built-in 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, it meets the requirements of program execution, GUI applications, and data storage
• Integrated 2.4GHz/5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
• Onboard 2.73inch LCD display for GUI, status information, data curves, and other content display
• Onboard three programmable buttons for menu navigation, parameter configuration, human-machine interaction, and more
• Onboard TF card slot for external storage expansion, suitable for storing images, logs, configuration files, and collected data
• Onboard Lithium Batt charging management chip for portable and Batt-powered supply applications
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion detection and interactive control
• Onboard RTC chip for time recording, offline timekeeping, and other applications
• Onboard temperature & humidity sensor for environmental data collection and monitoring
• Features USB Type-C port for power supply, program downloading, and debugging
• Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development
• Adapting multiple GPIO and peripheral interfaces for connecting sensors, actuators, and other modules
