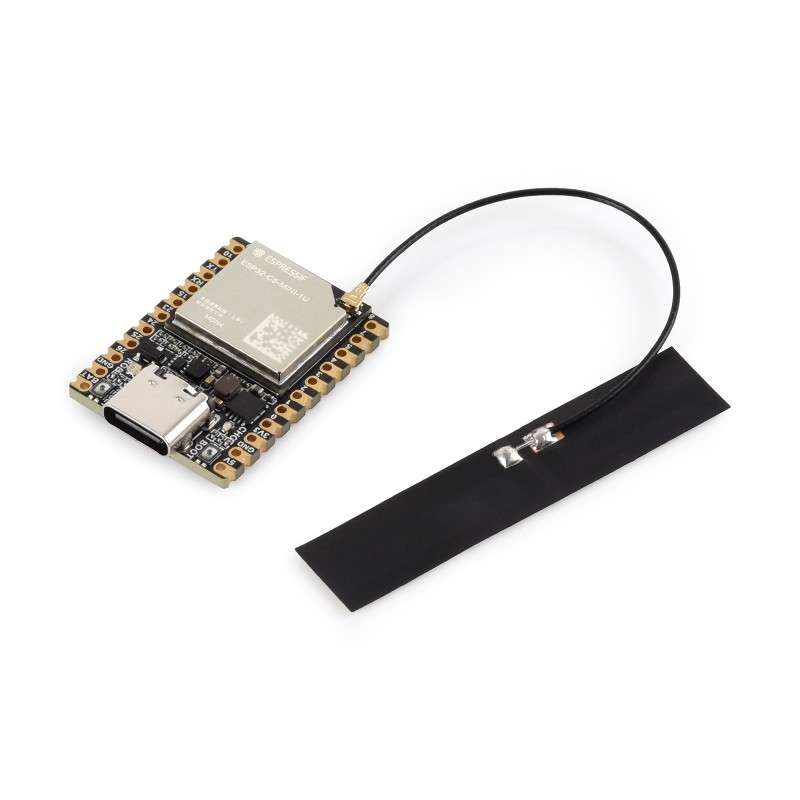

The ESP32-C5-MINI-KIT is a compact, entry-level RISC-V microcontroller development board integrating 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread). Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.

Adopts ESP32-C5-MINI-1 series module, which is equipped with a RISC-V 32-bit single-core processor, up to 240MHz main frequency, built-in 320KB ROM, 384KB HP Static RAM, 16KB LP Static RAM and 4MB Flash. Onboard MP1605GTF-Z DC-DC buck-boost chip provides a stable 3.3V output with a load current of up to 2A. Also integrates ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring.

You can choose ESP-IDF, Arduino or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

• Adopts ESP32-C5-MINI-1 series module with RISC-V 32-bit single-core processor, up to 240MHz main frequency
• Integrated 320KB ROM, 384KB HP Static RAM, 16KB LP Static RAM and 4MB Flash
• Integrated 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Onboard USB Type-C port, easier to use, supporting convenient power supply and development debugging
• Onboard MP1605GTF-Z high-efficiency DC-DC buck-boost chip with a load current of up to 2A
• Onboard ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring
• Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM and more for flexible function expansion
• Castellated module allows soldering directly to carrier boards
• Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
