ESP32-C6 Series Basic Kit, Tutorials, MicroPython, And ESP-IDF Programming (WS-33357)

• Part No.: ESP32-C6-Zero-Basic-Kit

ESP32-C6 Series Basic Kit, with rich tutorials and resources for quick start with Arduino, MicroPython, and ESP-IDF programming

ESP32-S3/C6/C3 Series Basic Kit

Beginner-friendly learning kit specially designed for ESP32-S3 / C6 / C3

All modules and accessories are tested and selected by professional engineers. Comes with rich tutorials and resources for quick start with Arduino, MicroPython, and ESP-IDF programming

Kit Selection Guide

ESP32-XX-Basic-Kit-Acce

Item	Description
1.5inch OLED Module	1.5inch OLED module with built-in SSD1327 driver chip, using SPI / I2C interface for communication
PIR motion sensor	A pyroelectric infrared (PIR) sensor that detects infrared radiation emitted by humans or objects and outputs a digital (on/off) signal
8-Bit WS2812 RGB LED	8 × RGB LED, play around with cool light effects by programming
Alarm	A high-quality active buzzer designed for alert indication
Single-joint potentiometer	Adjustable potentiometer, 0 ~ 10K range, for ADC testing, volume / brightness adjustment, etc.
Round-shape Buttons	High-quality buttons available in three different colors
5mm LEDs	5mm LED indicators available in three different colors, suitable for traffic light simulation, PWM brightness control, and other applications
330R resistors	330Ω resistors with value identifiable via color bands, suitable for current limiting protection when used in series with LEDs
Experimental board & Jumper wires	830-point high-quality experimental board with jumper wires, easy for connecting components
USB Type-C cable	USB Type-A to USB Type-C cable ~1m, for power supply, programming burning, and debugging
Plastic Storage Box	Customized box for storing the modules and components

ESP32-S3-Zero-Basic-Kit

ESP32-XX-Basic-Kit-Acce + ESP32-S3-Zero development board

ESP32-S3-Zero

Equipped with ESP32-S3 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

Pin Definition

ESP32-C6-Zero-Basic-Kit

ESP32-XX-Basic-Kit-Acce + ESP32-C6-Zero development board

ESP32-C6-Zero

supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread), Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Pin Definition

ESP32-C3-Zero-Basic-Kit

ESP32-XX-Basic-Kit-Acce + ESP32-C3-Zero development board

ESP32-C3-Zero

Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

Pin Definition

Supports ESP-IDF, Arduino IDE, and MicroPython

Comprehensive SDK, dev resources, tutorials to help you easily get started



Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-XX-Basic-Kit-Acce

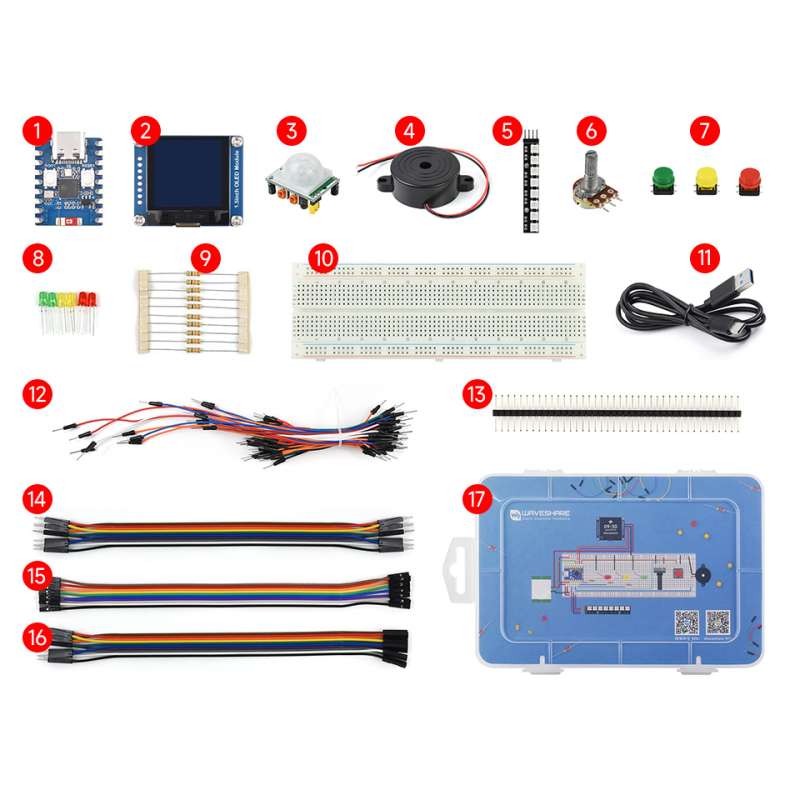

Balenie Obsahuje / Package Content

ESP32-C6-Zero-Basic-Kit

1. ESP32-C6-Zero x1
2. 1.5inch OLED module x1
3. RIP motion sensor x1
4. Alarm x1
5. 8-Bit WS2812 RGB LED x1
6. Single-joint potentiometer x1
7. Round-shape button (3PCS) x1
8. 5mm LED (3pcs) x1
9. 330R resistor x10
10. Experimental board x1
11. USB Type-A to USB Type-C cable ~1m x1
12. Experimental board wires x1
13. 40PIN straight header x1
14. Jumper wire 2.54mm pitch male-male 10PIN ~200mm x1
15. Jumper wire 2.54mm pitch female-female 10PIN ~200mm x1
16. Jumper wire 2.54mm pitch male-female 10PIN ~200mm x1
17. Plastic storage box x1
