Waveshare ESP32-C6 GEEK Dev.Board, 1.14inch 65K Color LCD, 240×135, 2.4GHz Wi-Fi 6 & BLE 5, USB-A (WS-33675)
WS-33675
€12.18
9.90 € tax excl.
Waveshare ESP32-C6 GEEK Dev.Board, 1.14inch 65K Color LCD, 240×135, 2.4GHz Wi-Fi 6 & BLE 5, USB-A (WS-33675)
Waveshare ESP32-C6 GEEK Dev.Board, 1.14inch 65K Color LCD, 240×135, 2.4GHz Wi-Fi 6 & BLE 5, USB-A (WS-33675)

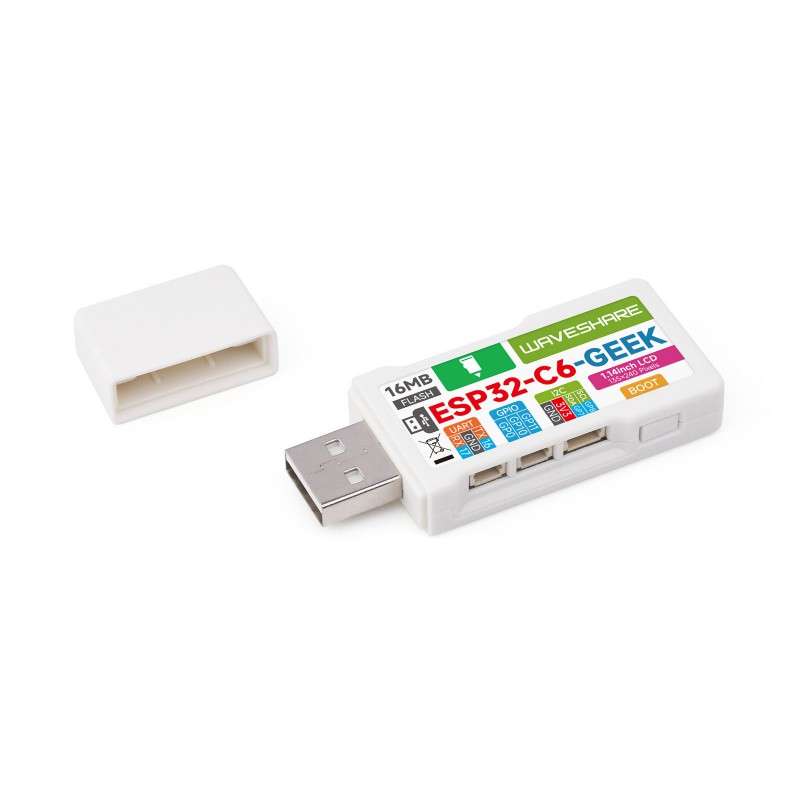

Waveshare ESP32-C6 GEEK Development Board, with 1.14inch 65K color LCD display, 240 × 135 resolution, supports 2.4GHz Wi-Fi 6 and BLE 5, USB-A male port, With White Plastic Case
ESP32-C6 GEEK Development Board
Integrated LCD display, TF card slot, BOOT button and other peripheral interfaces
Suitable for creative Wi-Fi 6 and Bluetooth applications based on ESP32-C6
features
The ESP32-C6-GEEK is a geek development board designed by Waveshare, onboard USB-A male port, 1.14inch LCD display, TF card slot, and other peripherals. Supports 2.4GHz Wi-Fi 6 and BLE 5, with integrated 16MB Flash, provides I2C header, UART header, and GPIO header, bringing more possibilities for your project.
Key features include:
- Adopts high-performance 32-bit RISC-V processor, up to 160MHz main frequency
- Built-in 512KB Static RAM, 320KB ROM, with onboard 16MB Flash memory
- Onboard 1.14inch 65K color IPS LCD display with 240 × 135 resolution
- Integrated 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) dual-mode wireless communication
- Onboard TF card slot for an external TF card to store images and files
- Onboard 3PIN UART header, 3PIN GPIO header and 4PIN I2C header
- Equipped with plastic case and cables
- Provides online open-source demo and resources, more convenient for learning and development
LCD parameters
| Operating voltage | 3.3V / 5V | Resolution | 240 × 135 pixels |
|---|---|---|---|
| Communication interface | 4-wire SPI | Display Size | 24.91 × 14.86 (mm) |
| Display Panel | IPS | pixel size | 0.1101 × 0.1035 (mm) |
| Driver IC | ST7789 | Outline dimensions | 61.00 × 24.50 (mm) |
Combines multiple functions in one
Onboard multiple interfaces and 1.14inch 65K color LCD display, Combined with
Wi-Fi 6 & Bluetooth for more possibilities
2.4GHz Wi-Fi 6 and BLE 5 support
Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Application Example
Suitable for creative Wi-Fi 6 and Bluetooth applications based on ESP32-C6,
as well as beginner programming and other applications
What's On Board
- ESP32-C6
- 16MB NOR-Flash
- TF card slot
- USB-A port
- UART header
- GPIO header
- I2C header
- BOOT button
- Onboard antenna
outline dimensions
Balenie Obsahuje / Package Content
- ESP32-C6-GEEK x1
- SH1.0 3PIN cable ~100mm x2
- SH1.0 4PIN cable ~100mm x1
WS-33675
