ESP32-C6 1.28inch Touch LCD Display Dev.Board, 240×240, 65K color, 2.4GHz Wi-Fi 6 and BT5 (WS-35442)
WS-35442
€20.54
16.70 € tax excl.
ESP32-C6 1.28inch Touch LCD Display Dev.Board, 240×240, 65K color, 2.4GHz Wi-Fi 6 and BT5 (WS-35442)
ESP32-C6 1.28inch Touch LCD Display Dev.Board, 240×240, 65K color, 2.4GHz Wi-Fi 6 and BT5 (WS-35442)

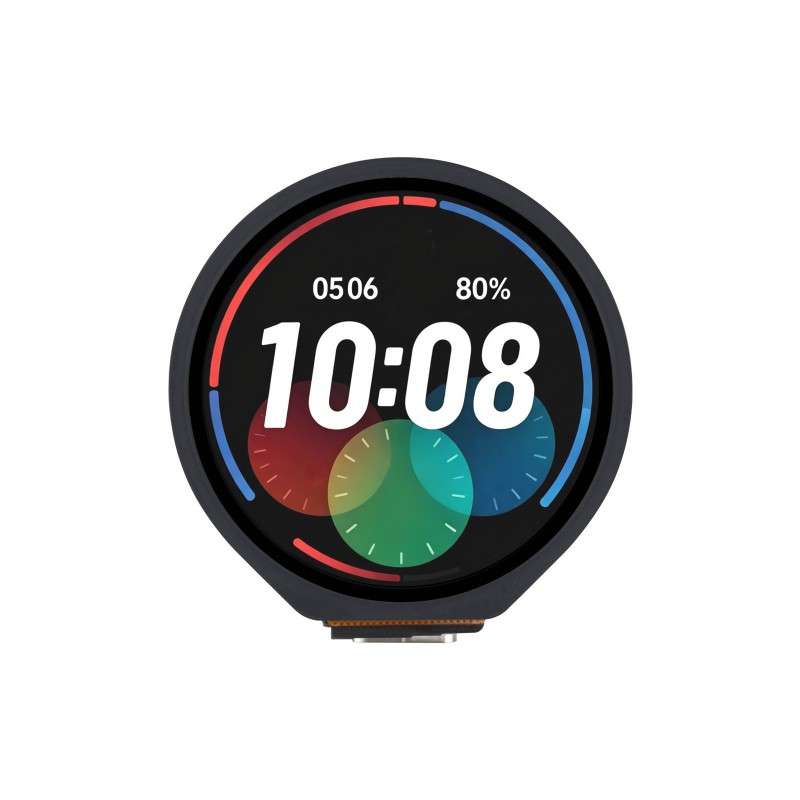

ESP32-C6 1.28inch Touch LCD Display Development Board, 240 × 240 resolution, 65K color, Supports 2.4GHz Wi-Fi 6 and Bluetooth 5
ESP32-C6 1.28inch Touch LCD display
development board
development board
Integrated GC9A01 display driver and CST816S capacitive touch driver
Version Options
ESP32-C6-Touch-LCD-1.28
with touch control, without CNC metal case
ESP32-C6-Touch-LCD-1.28-B
with touch control + CNC metal case
Features
The ESP32-C6-Touch-LCD-1.28 is a low-cost, high-performance microcontroller development board designed by Waveshare. With a compact form factor, it integrates 1.28inch touch LCD display, Lithium Batt charging management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), and other peripherals, making it easy to develop and integrate into end products.
Key features:
- Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency
- Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
- Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash
- Type-C port, easier to use
- Onboard 1.28inch touch LCD display for clear color picture display, 240 × 240 resolution, 65K color
- Optional CNC metal case, featuring a CNC metal top case with an acrylic dull-polish bottom plate on the back
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
- Onboard PCF85063 RTC chip for convenient RTC functionality
- Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
- Onboard SH1.0 12PIN expansion connector, adapting 4 × GPIO, 1 × UART, and 1 × I2C
- Onboard TF card slot, supporting storage expansion and high-speed data transfer for greater flexibility
LCD parameters
| Display panel | LCD | Display Size | 1.28inch |
|---|---|---|---|
| Display Resolution | 240 × 240 resolution | Display Color | 65K |
| Brightness | 400cd/㎡ | Contrast Ratio | 1100 : 1 |
| communication interface | SPI | Driver IC | GC9A01A |
| Touch | supported | Touch Driver | CST816S |
Optional CNC Metal Case
Adopts CNC metal case with Acrylic dull-polish bottom plate
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function
ESP32-C6 suitable for AIoT applications
Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features
Wi-Fi 6 and BLE 5 support
ESP32-C6 integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
What's On Board
- ESP32-C6
Integrated RISC-V single-core processor, up to 160MHz operating frequency, supports 2.4GHz Wi-Fi 6 and BLE 5 - SH1.0 RTC Batt header
for connecting rechargeable RTC Batt - 16MB NOR Flash
- BOOT button
Press it when resetting to enter download mode - TF card slot
- RESET button
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- MX1.25 Lithium Batt header
MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging - ETA6096
high-efficiency Lithium Batt charging chip - Charging indicator
When a Batt is connected, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected) - USB Type-C port
USB to UART, for programming and log printing - PCF85063 RTC chip
- 2.4GHz ceramic antenna
Pin Definitions
outline dimensions
ESP32-C6-Touch-LCD-1.28
ESP32-C6-Touch-LCD-1.28-B
Balenie Obsahuje / Package Content
ESP32-C6-Touch-LCD-1.28
- ESP32-C6-Touch-LCD-1.28 host x1
- SH1.0 12PIN cable 100mm x1
WS-35442
Specific References
