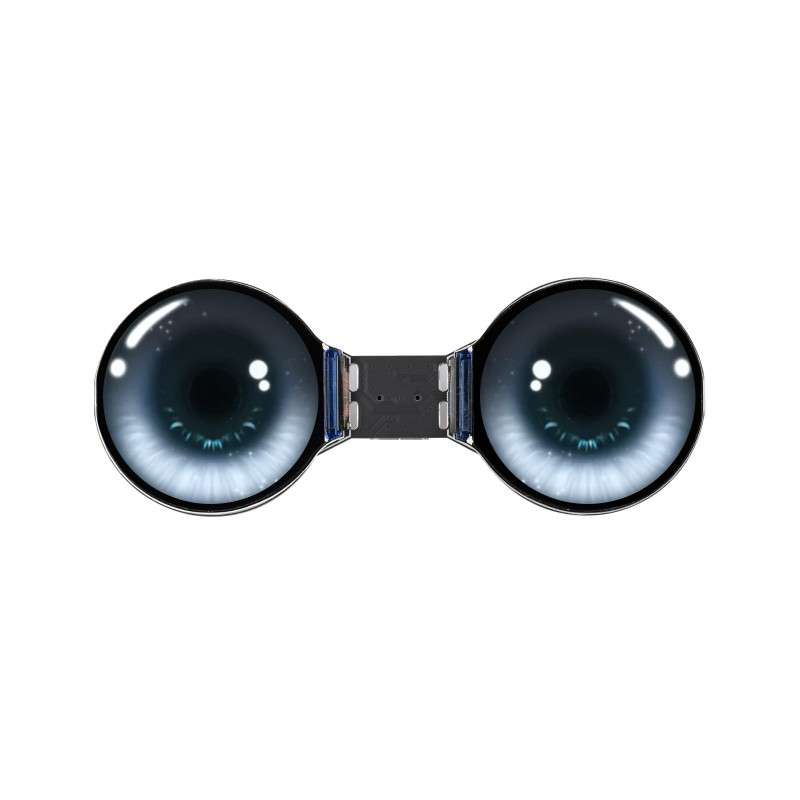

ESP32-S3 1.28inch Double Eye Round LCD AIoT Dev.Board, 1.28inch IPS Displays, 240×240 WiFi/BT5 (WS-32267)
WS-32267
€23.25
18.90 € tax excl.
ESP32-S3 1.28inch Double Eye Round LCD AIoT Dev.Board, 1.28inch IPS Displays, 240×240 WiFi/BT5 (WS-32267)
ESP32-S3 1.28inch Double Eye Round LCD AIoT Dev.Board, 1.28inch IPS Displays, 240×240 WiFi/BT5 (WS-32267)
- Without Touch Function
ESP32-S3 1.28inch Double Eye Round LCD AIoT Development Board, Onboard Dual 1.28inch IPS Displays, 240 × 240 Resolution, Dual-core 240MHz Processor, Supports Wi-Fi / Bluetooth 5
ESP32-S3 1.28inch Double Eye AIoT
Development Board
Development Board
Dual IPS Displays | 1.28inch | 240 × 240 | SPI Communication
Supports AI speech interaction, onboard TF card slot, Lithium battery header, and DIY connectors, etc.
Features
The ESP32-S3-DualEye-Touch-LCD-1.28 is an AIoT microcontroller development board based on ESP32-S3 with double eye LCD displays, designed for makers and electronics enthusiasts, supporting 2.4GHz Wi-Fi and Bluetooth BLE 5. It integrates high-capacity Flash and PSRAM, onboard dual 1.28inch LCD displays which can smoothly run GUI programs such as LVGL. Additionally, it also integrates a microphone, speaker header, Lithium battery recharge circuit, and reserves a TF card slot and DIY expansion connectors. It is suitable for the quick development based on ESP32-S3 such as HMI (Human-Machine Interface), double eye robotic agents, and AI voice-interactive toys. Whether you want to build a robot that can "wink", create an intelligent IoT Interface, design touch-controlled games, or develop futuristic wearable devices, this board is an ideal choice.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash
- Onboard dual 1.28inch LCD displays, 240 × 240 resolution, 65K color, optional for touch function
- Onboard ES8311 audio codec and ES7210 audio ADC chip, equipped with standard microphone and speaker header, supports AI speech interaction
- Onboard TF card slot for convenient local storage expansion, and supports the storing and reading of data, images, audio files, and more
- Onboard Lithium battery recharge management module, reserved 3.7V Lithium battery power supply header
- Onboard SH1.0 14PIN connector, adapting UART, I2C and some IO interfaces, for easy DIY customization
Version Options
ESP32-S3-DualEye-LCD-1.28
without touch function
ESP32-S3-DualEye-Touch-LCD-1.28
with touch function
Capacitive touch
Optional for capacitive touch function, controlled via I2C interface for flexible operation
and smooth UI interaction, with interrupt support
* Only the ESP32-S3-DualEye-Touch-LCD-1.28 version supports touch function.
Onboard audio codec chip
Supports high-quality audio processing, providing clear and high-quality audio input and output
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc
Application Scenarios
Robot
AI Toy
Wireless IoT Application
Learning or DIY Creative Project
What's On Board
- ESP32-S3R8
Dual-core processor, up to 240MHz operating frequency - 16MB Flash
- Battery recharge management chip
- Amplifier chip
- ES8311
- ES7210
- Microphone
- MP1605GTF-Z
Power module, supports up to 3.3V 2A output - Onboard ceramic antenna
- IPEX1 connector
for connecting external antenna, enabled via resoldering an onboard resistor - BOOT button
- GPIO1 function selection resistor
soldered on the side near the crystal by default: the GPIO1 pin is used for battery voltage measurement.
resoldered to the other side: the GPIO1 connects to the 17. FPC connector, enabling three-screen display function through software modification - Battery header
MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging - Charge indicator
Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
- Speaker header
- SH1.0 14PIN header
- 18PIN FPC connector
for three-screen display function by resoldering the 12. resistor and modifying the display configuration parameters in the program.
when the board is split into two halves, this FPC connector can be linked with 18. FPC connector so that both displays function properly (Note: when the board is split and connected via FPC cable, the RESET button will be unavailable) - 18PIN FPC header
for connection to the host - TF card communication mode selection
when the board is split into two halves, switching to SPI mode allows the TF card to be controlled by an external master controller. - TF card slot
Supports high-capacity TF cards - RESET button
- SH1.0 14PIN cable header
for controlling TF card and the LCD display via SPI interface when the board is split into two halves and resoldering 19. resistor to SPI mode - Type-C port
outline dimensions
