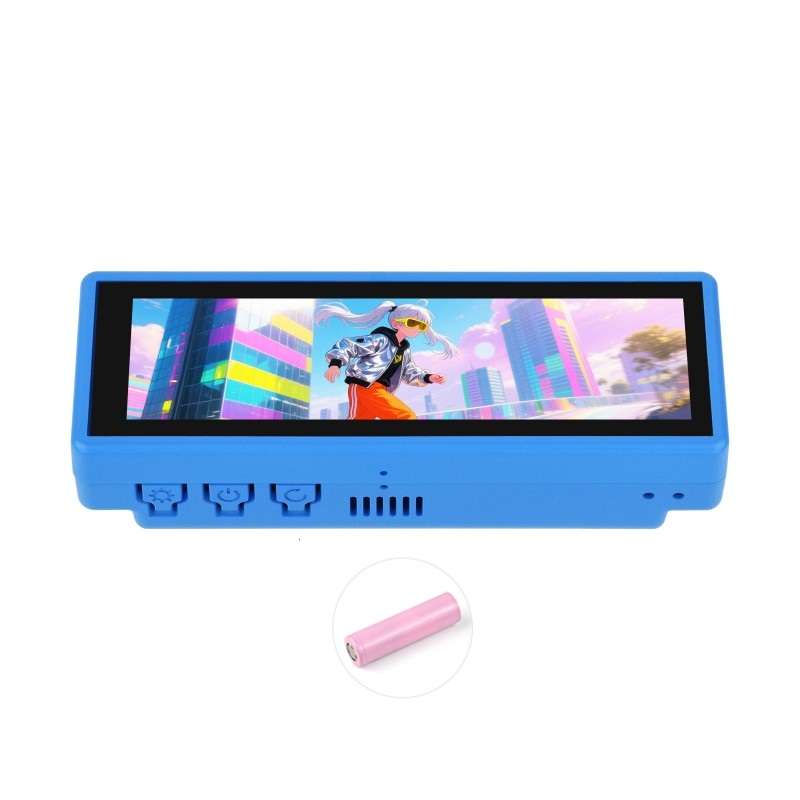

The ESP32-S3-Touch-LCD-3.49 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Onboard 3.49inch capacitive touch IPS display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec IC, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly.

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Onboard 3.49inch IPS capacitive touch display for clear color picture display, 172 × 640 resolution, 16.7M color
• Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up
• Built-in AXS15231B LCD & touch controller, using QSPI and I2C interfaces for communication respectively
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
• Onboard PCF85063 RTC chip for RTC functionality
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header or 18650 Lithium battery holder
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Reserved 22PIN 2.54mm pitch through-hole pads for easy connection to external modules or functional expansion, enhancing development flexibility.
