2 PACK 2.4inch ESP32 Solo Miner LCD Display Cryptocurrency Solo Miner 1000KH/s Hashrate WiFi, BLE (ER-DHM04624D)

• [2,4-palcový displej ESP32] Disponuje rezistívnym dotykovým displejom TFT LCD s rozlíšením 320*240, ktorý integruje modul ESP32 s frekvenciou až 240 MHz.
• [Samostatné ťaženie] Vstavaná WiFi podporuje nezávislé ťaženie, čím eliminuje potrebu externého počítača.
• [Oficiálna kompatibilita s NMMiner] Vysoko kompatibilný s oficiálnym softvérom NMMiner; stačí načítať a používať.
• [Nízka spotreba energie] Energeticky úsporný dizajn, podporuje nízkoenergetické duálne pripojenie Bluetooth/WiFi.
• [Viac vývojových prostredí] Podporuje viacero vývojových prostredí, vrátane Arduino IDE, Espressif IDF, PlatformIO a Micro Python, a je kompatibilný s grafickou knižnicou LVGL.
• [Široké uplatnenie] Je navrhnutý špeciálne pre ťažbu, ale je vhodný aj pre  inteligentné domy, automobilové HMI, domáce automatizácie, priemyselné riadenie, spotrebnú elektroniku a aplikácie IoT.

2.4 inch BTC Miner with Cheap Yellow Display(CYD)

This ESP32 2.4-inch display module is a HMI (Human Machine Interface) touchscreen designed specifically for mining rigs, featuring a 320*240 resolution LCD screen. It uses the ESP32-WROOM-32 module as the main control processor, equipped with a dual-core LX6 microprocessor with a clock speed of up to 240MHz. Highly compatible with NMMiner Official software, it's ready to use immediately after flashing, with deeply optimized firmware that significantly boosts mining hashrate to 1000KH/s. Integrated Wi-Fi and Bluetooth functionality support independent 2.4G WiFi mining, eliminating the need for an external computer and allowing for convenient operation via Bluetooth and WiFi. The CYD uses resistive touch technology and comes with a resistive pen. For expanded functionality, the board includes a TF card slot, multiple peripheral I/O ports, a USB (TTL converter) port, a USB-C interface, a speaker port, and a battery port, providing greater expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library. It also supports openHASP, providing an efficient and reliable solution for cryptocurrency mining. Besides mining, the 2.4-inch cheap yellow display can also be used in smart furniture control panels, industrial control systems, medical device interfaces, and other IoT applications, offering a comprehensive and reliable display solution.

To purchase a license and flashing functionality, please clickthe link: https://www.nmminer.com/product/nmlotto/

NMMiner Software Compatibility

Support Solo Mining

Support Multiple Environments

Multiple Scenarios

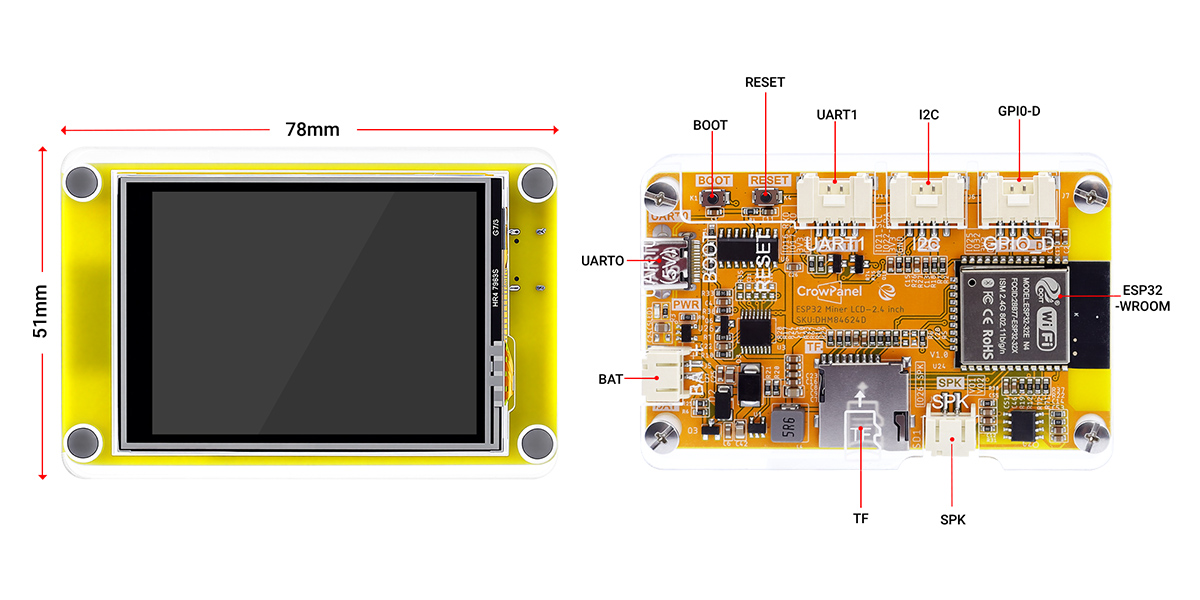

Hardware Overview

Feature

• Designed specifically for mining, its specially optimized algorithm boosts computing power to 1000KH/s.
• Highly compatible with NMMiner Official software; simply flash to use.
• Integrated ESP32-WROOM-32 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
• Operate independently using home Wi-Fi; the ESP32 is equipped with 2.4G Wi-Fi, supporting independent mining without the need for an external computer.
• Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Esphome-homeassistant/PlatformIO/Micro Python and compatible with LVGL graphics library;
• Built-in LVGL demo interface and Arduino example
• LCD 320*240 2.4inches TFT-LCD with driver IC ILI9341V;
• Integrates a TF card slot, multiple peripheral interfaces, a USB interface, a speaker interface, a battery interface, delivering plug-and-play expandability.
• Low power consumption design. Energy-saving and environmentally friendly, supports both BLE and WiFi connectivity.
• Exquisite acrylic casing, effectively protecting the screen.



Application scenarios

• Cryptocurrency mining
• Desktop ornaments/desktop decorations
• Industrial automation
• Smart city
• Smart home
• Medical equipment
• Agricultural technology
• Environmental monitoring
• Energy management
• Logistics and warehousing
• Retail and catering
• Education and research

Specification

Size	2.4inch
Main Processor	ESP32-WROOM-32-N4
Resolution	320*240
Touch Type	Resistive Touch Screen
Display Type	TN Screen
Screen	TFT-LCD Screen
Display driver	ILI9341V
External power supply	DC5V-2A
Battery voltage	3.7-4.2V
Interface	1*TF Card Slot, 1* I2C, 1* GPIO, 1*Speak, 1* UART1, 1*UART0
Button	BOOT Button and Reset Button
Active Area	36.72*48.96mm(W*H)
Dimensions	BOOT Button and Reset Button
Working Temperature	-20℃～70℃
Storage Temperature	-30℃～80℃
Net Weight (1pcs)	52g



Pin Specification



Package List

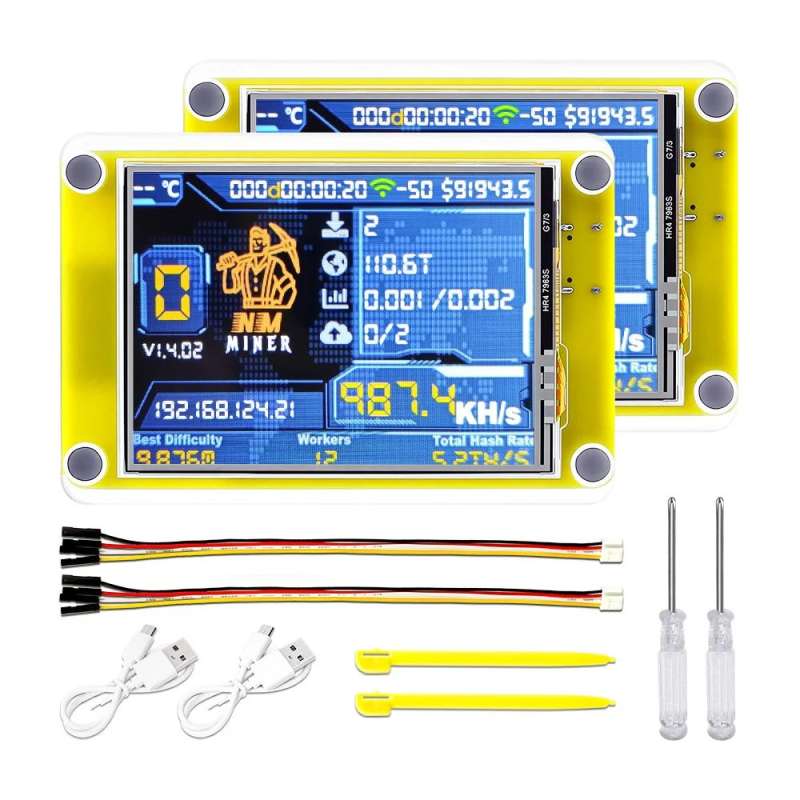

• 2x ESP32 2.4” Miner LCD Display
• 2x USB-A to Type-C Cable
• 2x Crowtail/Grove to 4pin DuPont cable
• 2x Resistive touch pen

Wiki & Documents

• Wiki
