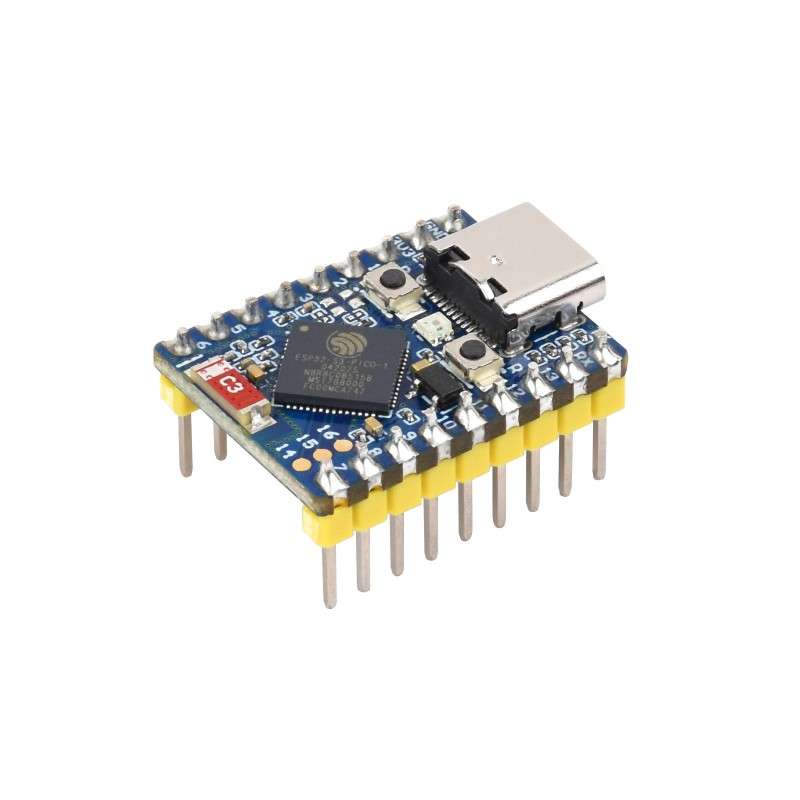

ESP32-S3 Mini Dev.Board, ESP32-S3  240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 (WS-33549)

• With pre-soldered header
• 8MB Flash & 8MB PSRAM

ESP32-S3 Mini Development Board, Based on ESP32-S3 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5

ESP32-S3-Zero Development Board

Based on ESP32-S3, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

Board specifications

• Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
• Built-in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
• Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions
• 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.

Version Options

ESP32-S3-Zero
4MB Flash and 2MB PSRAM



ESP32-S3-Zero-M
4MB Flash and 2MB PSRAM, with pre-soldered header

ESP32-S3-Zero-N8R8
8MB Flash and 8MB PSRAM



ESP32-S3-Zero-N8R8-M
8MB Flash and 8MB PSRAM, with pre-soldered header

Support MicroPython、ESP-IDF、Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started



What's On Board

1. ESP32-S3 dual-core processor
   up to 240MHz operating frequency
2. USB Type-C Port
3. ME6217C33M5G
   low dropout LDO, 800mA (Max)
4. WS2812 RGB LED



5. 2.4G ceramic antenna
6. BOOT button
   Press it and then press the RESET button to enter download mode
7. RESET button
8. ESP32-S3 pins

Pin definition

Product Show

outline dimensions

Resources & Services

Wiki: docs.waveshare.com/ESP32-S3-Zero

Balenie Obsahuje / Package Content

ESP32-S3-Zero-N8R8-M

ESP32-S3-Zero-N8R8 with pre-soldered header x1
