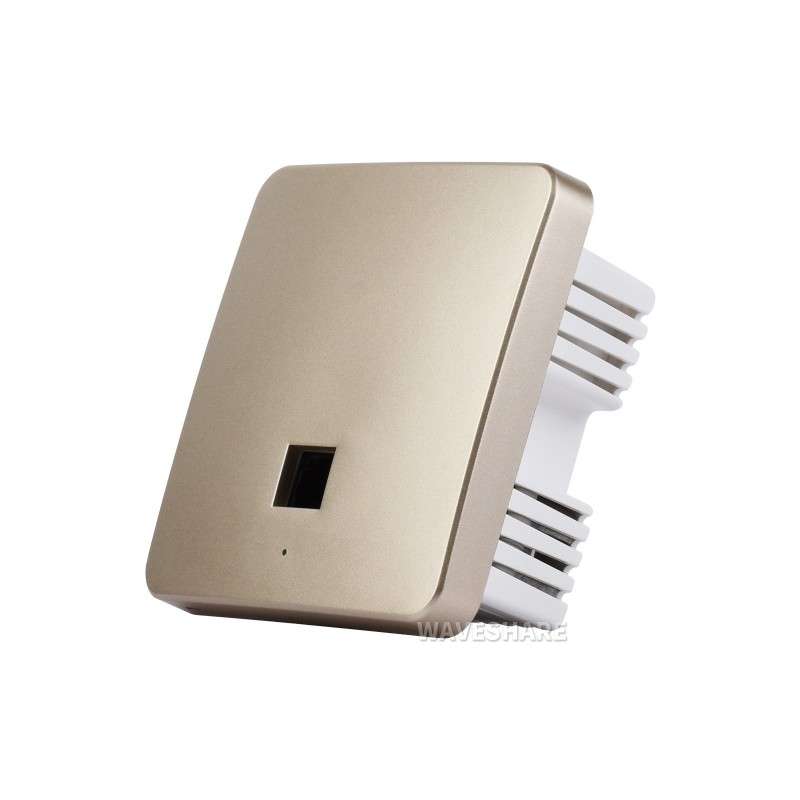

86 Type Wall-mounted Wireless Access Point, PoE Power Supply, 1500Mbps Speed, Optimized Antenna And RF Design (WS-32750)
WS-32750
€35.55
28.90 € tax excl.
86 Type Wall-mounted Wireless Access Point, PoE Power Supply, 1500Mbps Speed, Optimized Antenna And RF Design (WS-32750)
86 Type Wall-mounted Wireless Access Point, PoE Power Supply, 1500Mbps Speed, Optimized Antenna And RF Design (WS-32750)
86 Type Wall-mounted Wireless Access Point, Supports PoE Power Supply, 1500 Mbps Speed, With High-performance Processor, Optimized Antenna And RF Design
Wall-mounted Wireless Access Point
86 Type, Options for 1500M / 3000M wireless speed
Features at a glance
This product is a wall-mounted panel-type Access Point (AP), equipped with a high-performance processor and optimized RF design to ensure excellent network coverage and stability. The PoE power supply simplifies wiring, reduces installation costs, and improves overall deployment efficiency. Provides options for 1500 Mbps or 3000 Mbps speed to meet various home or commercial application requirements.
Version Options
AP-AX1500G-POE
1500 Mbps total speed
AP-AX3000G-POE
3000 Mbps total speed
Product Specifications
| Model | AP-AX1500G-POE | AP-AX3000G-POE |
|---|---|---|
| Product Description | 1500M 86-Type Wireless Access Point | 3000M 86-Type Wireless Access Point |
| Total Band Rate | 1500 Mbps | 3000 Mbps |
| AP Mode | Fit/Fat AP | |
| Physical Port | 1 × 10/100/1000 Base-T Ethernet WAN port (PoE power supply supported) 1 × 10/100/1000 Base-T Ethernet WAN port |
|
| Status Indicators | Status and activity indicators | |
| Physical Button | Hidden reset button | |
| Installation Method | Standard 86 Type Wall-Mount | |
| Color | Light gold | |
| Product Dimensions | 86mm × 86mm × 42mm | |
| Unit Weight | 155g ±10% | 190g ±10% |
| Package Weight | 185g ±10% | 215g ±10% |
| Bandwidth Support | Up to 80 MHz | Up to 160 MHz |
| Theoretical Wireless Speed | 2.4GHz: 300 Mbps 5GHz: 1201 Mbps |
2.4GHz: 574 Mbps 5GHz: 2402 Mbps |
| Recommended Connected Clients | Recommended ≤ 40, Max 128 | Recommended ≤ 64, Max 246 |
| Antenna Type | Built-in high-performance antenna | |
| Maximum Transmit Power | 2.4GHz: 21.5 ±1.5 dBm 5GHz: 23.5 ±1.5 dBm |
|
| Operating Environment | Operating temperature: 0°C – 40°C Storage temperature: -40°C – 70°C |
|
| Humidity Environment | Operating humidity: 10%–90% RH, non-condensing Storage humidity: 5%–90% RH, non-condensing |
|
Conection Reference
* the devices should be connected using standard 8-core Network cables of CAT 5 or higher.
Outline dimensions
Balenie Obsahuje / Package Content
86-Type Wireless Access Point x1
WS-32750
