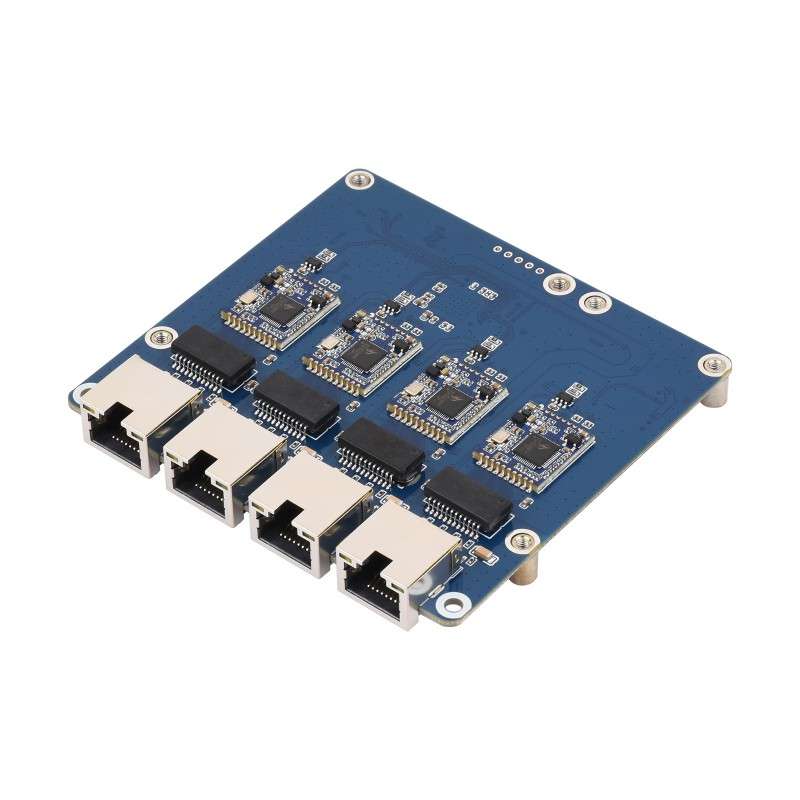

PCIe TO 4-Ch  2.5G ETH Board (B) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free (WS-33364)

• Part No.: PCIE TO 4-CH 2.5G ETH Board (B)

PCIe TO 4-Ch Gigabit / 2.5G ETH Board (B) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play

PCIe TO 4-ch ETH Port Adapter Board

Designed for Raspberry Pi 5

Supports Raspberry Pi OS, Driver-free, Plug and Play

Version Options

PCIE TO 4-CH Gigabit ETH Board (B)
4-ch Gigabit ETH ports



PCIE TO 4-CH 2.5G ETH Board (B)
4-ch 2.5G ETH ports

Specifications

Version	Gigabit ETH	2.5G ETH
CONTROLLER chip	RTL8153	RTL8156
Expansion chip	VL805
Ethernet Port	RJ45 Ethernet ports
Power supply	5V
Network standard	10/100/1000Mbps	10/100/1000/2500Mbps
Indicator status	The green indicator keeps lighting, the yellow indicator keeps blinking

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

Power Supply Method

power supply via PCIe cable by default

* for reference only, please refer to the Package Content for detailed part list

Assembly Diagram

* for reference only, the Pi5 Connector Adapter and Raspberry Pi 5 are NOT included in the package, please purchase separately.

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIE_TO_4-CH_2.5G_ETH_Board_(B)

Balenie Obsahuje / Package Content

PCIE TO 4-CH 2.5G ETH Board (B)

1. PCIE TO 4-CH 2.5G ETH Board (B) x1
2. 16P-Cable-40mm x1
3. Screws pack x1
