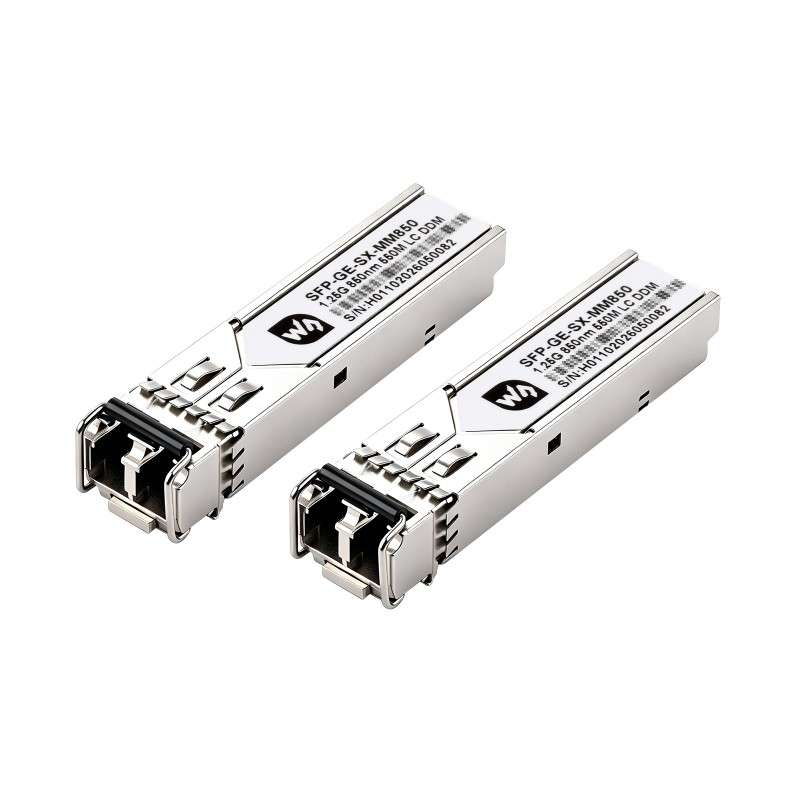

Gigabit SFP Optical Transceiver With LC Connector, Supports Hot-Swappable Operation, Plug-and-Play (WS-35305)

• Multi-mode dual-fiber

Gigabit SFP Optical Transceiver With LC Connector, Supports Hot-Swappable Operation, Plug-and-Play

Gigabit SFP optical transceiver

Simple & Convenient, Plug and Play, Supports Hot-Swappable Operation



Version Options

SFP-GE-SX
Multi-Mode Dual-Fiber SFP Optical Transceiver



SFP-GE-LX
Single-Mode Single-Fiber Optical Transceiver

Specifications

Model	SFP-GE-SX-MM	SFP-GE-LX-SM
Fiber Type	Multi-mode dual-fiber	Single-mode single-fiber
Wavelength	850nm	1310/1550nm
Transmission Distance	0.5km	20km
Receive Power	≥-18 (dBm)	≥-26 (dBm)
Data Rate	1.0625 ~ 1.25Gbps
Transmit Power	-3 ~ -9 (dBm)
Operating Voltage	+3.3V ± 5%, single power supply
Power Consumption	<0.7W
Operating Temperature	-20 ~ +70°C
Operating Humidity	5% ~ 90% RH, non-condensing
Connector Type	LC
Protocol Standard	SFP MSA
MTBF	100,000 Hours
Application	IEEE 802.3z 1000BASE-LX compliant optical interface

Digital Diagnostic Monitoring
(DDM) Technology

Real-time monitoring of optical transceiver status enables quick fault identification, simplifies maintenance, ensures system reliability, and improves work efficiency

Supports Hot-Swappable Operation

Adopts LC connector for quick connection to optical fiber devices, plug-and-play

Applicable Products

Outline dimensions

Balenie Obsahuje / Package Content

SFP-GE-SX

1. SFP-GE-SX-MM850 x2
2. Multimode duplex fiber x1
