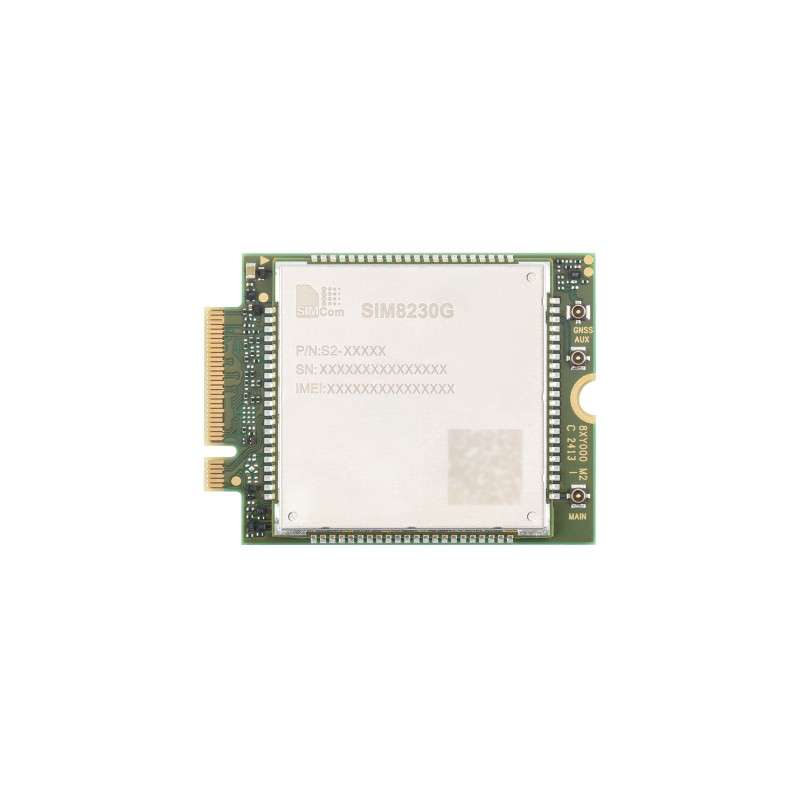

SIM8230G-M2 SIMCom Original RedCap Module Based On Qualcomm Snapdragon X35, Adopts 3GPP 5G Release 17 Technology
SIM8230G-M2
SIMCom RedCap Module Based on Qualcomm Snapdragon X35
Adopts 3GPP 5G Release 17 Technology
The SIM8230G-M2 is a multi-band 5G NR / LTE-FDD / LTE-TDD module, supports 5G Standalone (SA) mode with a download speed up to 220Mbps. This module features strong expandability with abundant interfaces including USB2.0 and GPIO, etc. The module supports multiple network protocols, and provides much flexibility and ease of integration for customer's applications.
The SIM8230G-M2 adopts M.2 form factor, and AT commands are compatible with the SIM7600 / SIM8200 / SIM8260 series modules. This also minimizes the investments of customers and enables a short time-to-market.
It is designed for applications that need efficient and reliable data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Features
- Standard M.2 B KEY interface
- Low-power and lightweight 5G RedCap module
- AT commands of the SIM8230G-M2 are compatible with SIM7600 / SIM8200 / SIM8260 series modules
Specifications
| SIM8262E-M2 | SIM8262A-M2 | SIM8260G-M2 | SIM8230G-M2 | |
|---|---|---|---|---|
| 5G Standard | 3GPP R16 | 3GPP R17 | ||
| Chip | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X35 | ||
| Frequency band | ||||
| Sub-6G | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78 |
| LTE-FDD | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B71 |
| LTE-TDD | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B48 |
| WCDMA | B1, B5, B8 | B2, B4, B5 | B1, B2, B4, B5, B8, B19 | - |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | GPS, GLONASS, Beidou, Galileo, and NavIC | ||
| Data rate | ||||
| Sub-6G | 2.4Gbps (DL) / 500Mbps (UL) | 3.47Gbps (DL) / 460Mbps (UL) | 220Mbps (DL) / 100Mbps (UL) | |
| LTE | 1Gbps (DL) / 200Mbps (UL) | 1.6Gbps (DL) / 200Mbps (UL) | 200Mbps (DL) / 50Mbps (UL) | |
| HSPA+ | 42Mbps (DL) / 5.76 Mbps (UL) | - | ||
| Software functions | ||||
| Operating systems | Windows / Linux / Android | |||
| Communication protocols | TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 | |||
| Dial Up | RNDIS, NDIS, PPP, MBIM | RNDIS, ECM, PPP | ||
| SMS | Supports MT, MO, CB, Text, PDU | |||
| Firmware upgrade | Supports firmware upgrade via USB port | |||
| Hardware Specifications | ||||
| SIM Card | 1.8V / 2.95V | |||
| Antenna | For 3G / 4G / 5G / GNSS | |||
| 6 × IPEX-4 connectors | 4 × IPEX-4 connectors | 3 × IPEX-4 connectors | ||
| Power Supply | 3.135V ~ 4.4V | 3.4V ~ 4.4V | ||
| Form Factor | M.2 | |||
| Dimensions | 42.0 × 30.0 × 2.3 (mm) | 52.0 × 30.0 × 2.3 (mm) | 42.0 × 31.4 × 3.4 (mm) | |
| Operating Temperature | -30℃ ~ +70℃ | |||
| Applications | ||||
| Applicable regions | except Americas | Americas | Global | |
| The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands | ||||
| Application examples | CPE, Smart gateway, Live streaming, Remote medical treatment, Intelligent security | |||
Compatible with multiple
expansion modules
expansion modules
Dongle Modules
USB TO M.2 B KEY
USB 3.2 Gen1 5G DONGLEHATs
5G HAT (with case)
PCIe TO 4G/5G M.2 USB3.2 HAT+
SIM8202G-M2 5G for Jetson Nano
Balenie Obsahuje / Package Content
This is an M.2 module without antenna or base board.
SIM8230G-M2 x1
