SIM8260G-M2 SIMCom Original 5G Sub-6G Module Qualcomm Snapdragon X62, Adopts 3GPP 5G Release (WS-32177)

SIM8260G-M2 SIMCom Original 5G Sub-6G module based on Qualcomm Snapdragon X62, Adopts 3GPP 5G Release 16 Technology

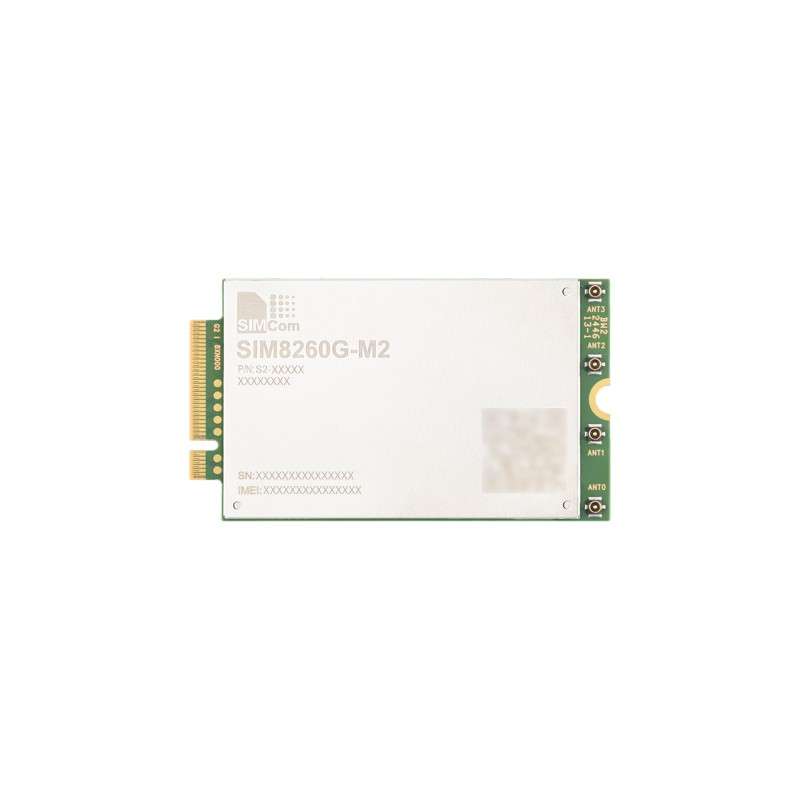

SIM8260G-M2

SIMCom 5G Sub-6G Module Based on Qualcomm Snapdragon X62
Adopts 3GPP 5G Release 16 Technology

The SIM8260G-M2 is a multi-band 5G NR / LTE-FDD / LTE-TDD / HSPA+ module, supports R16 5G NSA / SA with a download speed up to 3.47Gbps. It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

The SIM8260G-M2 adopts M.2 form factor, and AT commands are compatible with the SIM8200 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Features

Standard M.2 B KEY interface
High-throughput data communication
AT commands of the SIM8260G-M2 are compatible with SIM8200 series modules

Specifications

	SIM8262E-M2	SIM8262A-M2	SIM8260G-M2	SIM8230G-M2
5G Standard	3GPP R16			3GPP R17
Chip	Qualcomm Snapdragon X62			Qualcomm Snapdragon X35
Frequency band
Sub-6G	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78
LTE-FDD	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B71
LTE-TDD	B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41, B42, B43, B46, B48	B34, B38, B39, B40, B41, B42, B43, B48
WCDMA	B1, B5, B8	B2, B4, B5	B1, B2, B4, B5, B8, B19	-
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS			GPS, GLONASS, Beidou, Galileo, and NavIC
Data rate
Sub-6G	2.4Gbps (DL) / 500Mbps (UL)		3.47Gbps (DL) / 460Mbps (UL)	220Mbps (DL) / 100Mbps (UL)
LTE	1Gbps (DL) / 200Mbps (UL)		1.6Gbps (DL) / 200Mbps (UL)	200Mbps (DL) / 50Mbps (UL)
HSPA+	42Mbps (DL) / 5.76 Mbps (UL)			-
Software functions
Operating systems	Windows / Linux / Android
Communication protocols	TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
Dial Up	RNDIS, NDIS, PPP, MBIM			RNDIS, ECM, PPP
SMS	Supports MT, MO, CB, Text, PDU
Firmware upgrade	Supports firmware upgrade via USB port
Hardware Specifications
SIM Card	1.8V / 2.95V
Antenna	For 3G / 4G / 5G / GNSS
Antenna	6 × IPEX-4 connectors	4 × IPEX-4 connectors		3 × IPEX-4 connectors
Power Supply	3.135V ~ 4.4V			3.4V ~ 4.4V
Form Factor	M.2
Dimensions	42.0 × 30.0 × 2.3 (mm)		52.0 × 30.0 × 2.3 (mm)	42.0 × 31.4 × 3.4 (mm)
Operating Temperature	-30℃ ~ +70℃
Applications
Applicable regions	except Americas	Americas	Global
Applicable regions	The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands
Application examples	CPE, Smart gateway, Live streaming, Remote medical treatment, Intelligent security
