5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA,SA Networking, GNSS SIM8262E-M2 5G Module (WS-32255)
WS-32255
€289.05
235.00 € tax excl.
5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA,SA Networking, GNSS SIM8262E-M2 5G Module (WS-32255)
5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA,SA Networking, GNSS SIM8262E-M2 5G Module (WS-32255)
- 5G Module : SIM8262E-M2
5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA And SA Networking, GNSS Positioning, SIM8262E-M2 5G Module
5G / 4G / 3G module for Jetson Orin
Equipped with a high-performance 5G Sub-6G module
supports 5G NSA and SA networking, GNSS Positioning
Version options
SIM8260G-M2 5G for Jetson Orin
Comes with SIM8260G-M2 5G module,
applicable to countries and regions with global coverage of the 5G Sub-6G bands
SIM8262E-M2 5G for Jetson Orin
Comes with SIM8262E-M2 5G module,
applicable to countries and regions outside the Americas that support 5G Sub-6G bands
Features at a glance
- Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode multi-band support
- Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
- USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 5G network
- Onboard standard M.2 B KEY slot and module selection switches, compatible with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules
- 4 x SMA antenna connectors, easy to install the antennas
- Reserved UART solder pads for convenient data transmission and other functions with certain modules
- Onboard 1-ch Nano SIM card slot and 1-ch eSIM slot in QFN-8 (5 × 6) package, supporting dual SIM single standby, switchable via AT command
- Onboard audio interface and audio decoding chip, enabling voice operations such as making calls by using SIMXXX series modules
- Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring
- Onboard high-efficiency power supply circuit, up to 3A output current
Specifications
| 5G / 4G module | SIM8260G-M2 | SIM8262E-M2 | RM520N-GL | SIM7600G-H-M.2 |
|---|---|---|---|---|
| Images |  |
 |
 |
 |
| 5G standard | 3GPP R16 | - | ||
| Chip Solution | Qualcomm Snapdragon X62 | Qualcomm MDM9607 | ||
| Applicable regions | Global | Except Americas | Global | |
| Dimensions (mm) | 30.0 × 52.0 × 2.3 | 30.0 × 42.0 × 2.3 | 30.0 × 52.0 × 2.3 | 42.0 × 31.4 × 3.8 |
| Frequency band | ||||
| 5G SA | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | - |
| 5G NSA | n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | - |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 |
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B46, B48 | B38, B39, B40, B41, B42, B43 | B34, B38, B39, B40, B41, B42, B43, B48 | B34, B38, B39, B40, B41 |
| WCDMA | B1, B2, B4, B5, B8, B19 | B1, B5, B8 | B1, B2, B4, B5, B8, B19 | B1, B2, B4, B5, B6, B8, B19 |
| GNSS | GPS, GLONASS, Beidou, Galileo, and QZSS | |||
| Data rate | ||||
| Sub-6G SA | 2.5Gbps (DL) / 0.9Gbps (UL) | 2.4Gbps (DL) / 1Gbps (UL) | 2.4Gbps (DL) / 900Mbps (UL) | - |
| Sub-6G NSA | 3.47Gbps (DL) / 460Mbps (UL) | 3.4Gbps (DL) / 600Mbps (UL) | 3.4Gbps (DL) / 550Mbps (UL) | - |
| LTE | 1.6Gbps (DL) / 200Mbps (UL) | 150Mbps (DL) / 50Mbps (UL) | ||
| HSPA+ | 42Mbps (DL) / 5.76 Mbps (UL) | |||
|
Note: The above are the supported modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility. |
||||
multi-mode multi-band
based on the Qualcomm platform, supports 5G NSA and SA networking and multi-mode multi-band capabilities, suitable for a wide range of application scenarios
* the frequency band diagram above is for reference only,
please confirm the supported bands according to your local service provider.
Multi system support
Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use
Multi host support
Enabling 5G high speed connection for Jetson Orin / PC / Raspberry Pi
Connecting Jetson Orin to Internet
Connecting Windows to Internet
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.
Cloud Communication
supported communication protocols:
TCP / IP / IPv4 / IPv6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0
Phone Call & SMS support
allows using AT commands to make phone call via Audio jack or send SMS
Application example
What's On Board
- USB3.1 port
USB 2.0 compatible, for connecting with different hosts - M.2 slot
compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor - USB Type-C port
5V 3A power input, stable and flexible power supply - Reset button
- Module fixing holes
supports 3042 / 3052 package modules - Antenna connectors
Supports quad antennas - Module settings switch
Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;
Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules;
Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
- Power supply switch
Switch the power supply mode:
When set to USB, the module is powered via the "1. USB3.1 port"
When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port" - Indicator
Easy to monitor the operating status of module - Audio jack
SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function - eSIM card slot
QFN-8 (5 × 6) package, configurable via AT commands - Nano SIM card slot
onboard dual SIM card slots, dual card single standby - Level conversion circuit
- Reserved UART and audio interface pads
- Mounting holes
for installing this module onto the Jetson Orin board via screws - Audio drive circuit
- Power supply circuit
- Fan header
for 5V cooling fan
Installation Introduction
* for reference only, please refer to the package content for detailed part list
Outline Dimensions

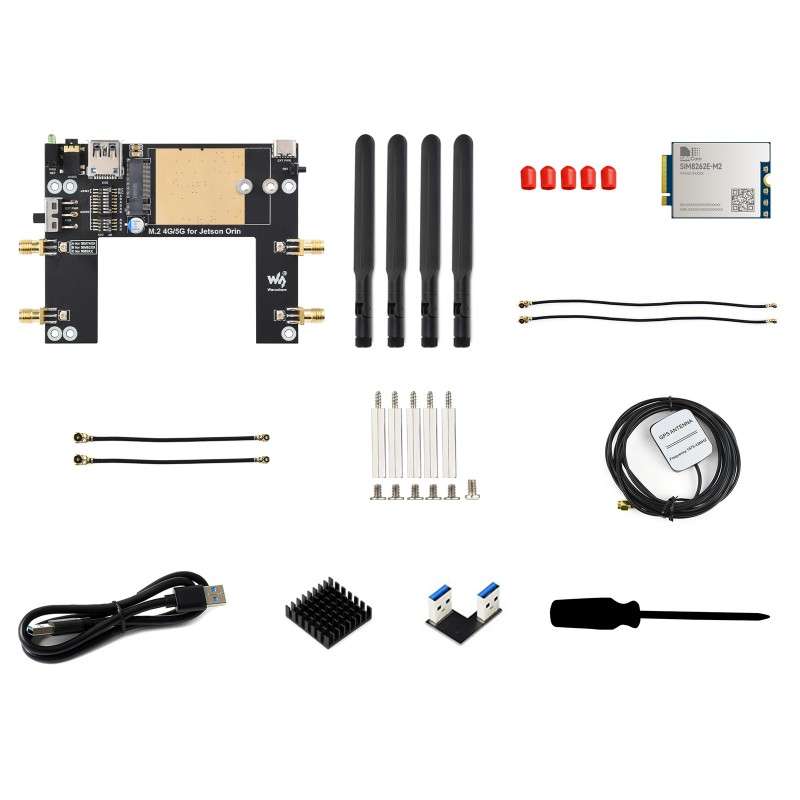

Balenie Obsahuje / Package Content
SIM8262E-M2 5G for Jetson Orin
- Jetson Orin M.2 4G / 5G expansion board x1
- 5G antenna x4
- SMA protective cap (5PCS) x1
- SIM8262E-M2 x1
- IPEX1 to IPEX4 adapter cable ~13cm x2
- IPEX1 to IPEX4 adapter cable ~5cm x2
- Screws pack x1
- GPS External Antenna (C) x1
- Dual plug USB3.0 Type-A cable x1
- Heatsink x1
- USB 3.0 Adapter (C) x1
- Screwdriver x1
WS-32255
Specific References
5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA,SA Networking, GNSS SIM8262E-M2 5G Module (WS-32255)
5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA,SA Networking, GNSS SIM8262E-M2 5G Module (WS-32255)
€289.05
235.00 € tax excl.
