RM500U-CN 5G HAT for Raspberry Pi, Quad Antennas LTE-A, Multi Band, 5G/4G/3G (WS-21705)

RM500U-CN 5G HAT For Raspberry Pi, Quad Antennas LTE-A, Multi Band, 5G/4G/3G Compatible

RM500U-CN 5G HAT FOR RASPBERRY PI

Comes With RM500U-CN, Supports 5G/4G/3G, Supports 5G NSA And SA

Features At A Glance

• Comes with RM500U-CN core module, supports 5G and LTE-A multi network types, supports 5G NSA and SA networking
• Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android
• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
• Standard M.2 B KEY slot, compatible with different 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• 2x SIM card slot, dual card single standby, switchable via AT command
• High efficiency power supply circuit, up to 3A output current

Module Specifications

FREQUENCY BAND
5G	5G NR	3GPP Release 15 NSA/SA operation, Sub-6 GHz
	5G NR NSA	n41, n78, n79
	5G NR SA	n1, n28, n41, n77, n78, n79
	Downlink 4 × 4 MIMO	n1, n41, n77, n78, n79
LTE	LTE Category	downlink Cat 12, uplink Cat 13
	LTE-FDD	B1, B2, B3, B5, B7, B8, B20, B28
	LTE-TDD	B34, B38, B39, B40, B41
	LAA	-
	Downlink 2 × 2 MIMO	B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
UMTS	WCDMA	B1, B2, B5, B8
DATA RATE
5G SA Sub-6		downlink 2 Gbps; uplink 1 Gbps
5G NSA Sub-6		downlink 2.2 Gbps; uplink 575 Mbps
LTE		downlink 600 Mbps; uplink 150 Mbps
UMTS		downlink 42.2 Mbps; uplink 11 Mbps
OTHERS
Operating temperature		-30 °C ~ +75 °C
Extension temperature		-40 °C ~ +85 °C
Module dimensions		30.0 × 52.0 × 2.3 (mm)
Module weight		8.9 (g)

Multi System Support, Easy To Use

Supports Windows / Linux / Android...

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

connecting with Raspberry Pi 4B



connecting with Raspberry Pi 3B+



connecting with CM4 IO Base

Cloud Communication

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.

High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 5G Module

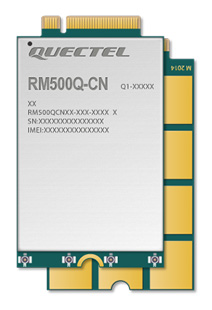

Standard M.2 B KEY Slot

Compatible With RM500U-CN, RM500Q-CN, RM500Q-GL Series Modules

5G SUB-6		RM500U-CN	RM500Q-CN	RM500Q-GL
Region / Provider		China	China	Global (except US)
Operating temperature		-30 °C ~ +75 °C
Extension temperature		-40 °C ~ +85 °C
Dimensions		30.0 × 52.0 × 2.3 (mm)
Weight		8.9 (g)		8.7 (g)
Power supply		3.3~4.4 V, typical 3.7 V	3.135~4.4 V, typical 3.7 V
Power consumption		90 μA @ shutdown 3.7 mA @ hibernate TBD @ USB 2.0, idle TBD @ USB 3.0, idle	78 μA @ shutdown 4.1 mA @ hibernate 32 mA @ USB 2.0, idle 52 mA @ USB 3.0, idle	70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle
FREQUENCY BAND
5G	5G NR NSA	n41, n78, n79		n41, n77, n78, n79
	5G NR SA	n1, n28, n41, n77, n78, n79	n1, n28, n41, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B5, B7, B8, B20, B28	B1, B3, B5, B8	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41	B34, B38, B39, B40, B41	B34, B38, B39, B40, B41, B42, B43, B48
	LAA	-		B46
UMTS	WCDMA	B1, B2, B5, B8	B1, B8	B1, B2, B3, B4, B5, B6, B8, B19
GNSS		-	GPS / GLONASS / BeiDou (Compass) / Galileo
DATA RATE
5G SA Sub-6		downlink 2 Gbps; uplink 1 Gbps	downlink 2.1 Gbps; uplink 900 Mbps
5G NSA Sub-6		downlink 2.2 Gbps; uplink 575 Mbps	downlink 2.5 Gbps; uplink 525/550 Mbps	downlink 2.5 Gbps; uplink 600/650 Mbps
LTE		downlink 600 Mbps; uplink 150 Mbps	downlink 1.0 Gbps; uplink 200 Mbps
UMTS		downlink 42.2 Mbps; uplink 11 Mbps	downlink 42 Mbps; uplink 5.76 Mbps
* means developing/planning/processing

Comes with RM500U-CN module by default, for other modules or hardware customization, feel free to contract us.

Application Examples

5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.



5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities

Outline Dimensions

Resources & Services

Wiki: RM500U-CN_5G_HAT

Balenie Obsahuje / Package Content

1. M.2 TO 4G/5G HAT x1
2. RM500U-CN x1
3. Antenna 4pcs x1
4. IPEX adapter cable 4pcs x1
5. 2*20PIN pin header x1
6. 5V 3A Type-C power adapter x1
7. Dual plug USB3.0 cable x1
8. USB3.0 adapter x1
9. USB2.0 adapter x1
10. SMA protective cap 4pcs x1
11. Screws pack x1
