Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24506) KIT-A
WS-24506
€503.07
409.00 € tax excl.
Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24506) KIT-A
Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24506) KIT-A
- Part No.: JETSON-ORIN-NANO-8G-DEV-KIT-A-EU
- JETSON-ORIN-NANO-DEV-KIT-A
Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module
JETSON-ORIN-NANO-DEV-KIT
Waveshare Jetson Orin Nano Dev Kit
Newly upgraded performance and increased computing power
This is not the N-VIDIA official Developer Kit
Based on Jetson Orin Nano Module, with JETSON-ORIN-IO-BASE base board, providing rich peripheral interfaces such as M.2, DP, USB, etc., which is more convenient for users to realize the product performance.
This kit includes the Orin Nano Module with options for 4GB / 8GB memory, no built-in storage module, provides up to 20 TOPS / 40 TOPS AI performance, and up to 34 TOPS / 67 TOPS after upgrading to the SUPER version. Comes with a Free 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.
* for reference only, the actual appearance of the Solid State Drive may be different
This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.
*please refer to the package content for detailed part list,
the NVMe Solid State Drive and wireless network card are NOT included in the JETSON-ORIN-NANO-4G/8G-BASE-KIT
| Module | 4GB | 4GB*** SUPER |
8GB | 8GB*** SUPER |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Version | 4GB Module | Waveshare Kit | 4GB Module | Waveshare Kit | 8GB Module | Waveshare Kit | 8GB Module | Waveshare Kit | Official Kit |
| AI performance | 20TOPS | 34 TOPS (sparse) 17 TOPS (dense) |
40TOPS | 67 TOPS (sparse) 33 TOPS (dense) |
|||||
| GPU | 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |||||||
| GPU Frequency | 625MHz (Max) | 1020MHz (Max) | 625MHz (Max) | 1020MHz (Max) | |||||
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | ||||||||
| CPU Frequency | 1.5GHz (Max) | 1.7GHz (Max) | 1.5GHz (Max) | 1.7GHz (Max) | |||||
| Memory | 4GB 64-bit LPDDR5, 32GB/s | 4GB 64-bit LPDDR5, 51GB/s | 8GB 128-bit LPDDR5, 68GB/s | 8GB 128-bit LPDDR5, 102GB/s | |||||
| Storage | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | Supports external NVMe | 256GB NVMe Solid State Drive | TF card slot & external NVMe via M.2 Key M |
| Power | 7W ~ 10W | 7 W | 10 W | 15W | 7W ~ 15W | 7 W | 10 W | 15W | |||||
| PCIe* | 1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) | M.2 Key M slot with x4 PCIe Gen3/ M.2 Key M slot with x2 PCIe Gen3/ M.2 Key E slot |
|
| USB* | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) |
3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 |
USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) |
|
| CSI Camera | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps) |
2x MIPI CSI-2 Camera Connector | |
| Video encode | 1080p30 supported by 1-2 CPU cores | ||||||||
| Video decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
||||||||
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | 1x 8K30 multi-mode DP 1.4a (+MST)/ eDP 1.4a/HDMI 2.1 |
1x DisplayPort 1.2 (+MST) connector | |
| Other | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack | 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, TF card slot, DC power jack |
| Networking | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | 1x GbE | 1x GbE Connector | |
| Dimensions | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
103 × 90.5 × 34mm | 100 mm x 79 mmx 21 mm |
| * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin Nano are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. *** Official kit: supports software upgrade to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.1.1 can support upgrading SUPER version); *** Orin Nano Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version); |
|||||||||
Kit Selection Guide
| Kit | Basic Kit | Dev Kit | A | B |
| JETSON-ORIN-NANO-BASE-KIT (Orin Nano Module: options for 4GB/8GB) |
√ | |||
| JETSON-ORIN-NANO-DEV-KIT (Orin Nano Module: options for 4GB/8GB) |
√ | √ | √ | |
| Built-in Solid State Drive + wireless network card | √ | √ | √ | |
| 8MP IMX219-77 Camera | √ | √ | ||
| 13.3inch HDMI LCD (H) (with case) V2 (USB cable, DP to HDMI cable, power supply) |
√ |
JETSON-ORIN-NANO-BASE-KIT
Includes Jetson Orin Nano module (options for 4GB/8GB), JETSON-ORIN-IO-BASE base board, and cooling fan. The 256GB NVMe Solid State Drive and wireless network card are NOT included in the kit.
JETSON-ORIN-NANO-DEV-KIT
Includes Jetson Orin Nano module (options for 4GB/8GB), JETSON-ORIN-IO-BASE base board, cooling fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, USB cable, Ethernet cable, Power supply, etc.
JETSON-ORIN-NANO-DEV-KIT-A: Camera kit
On the basis of the JETSON-ORIN-NANO-DEV-KIT, it is equipped with an 8MP (3280 x 2464) high-definition camera, suitable for the AI intelligent applications such as face recognition, road sign recognition and license plate recognition.
JETSON-ORIN-NANO-DEV-KIT-B: Camera + Touch display kit
On the basis of the Kit A, it is equipped 13.3inch Capacitive Touch Screen LCD (with case), 1920×1080 resolution, up to 10-point touch, built-in ferrite Hi-Fi speaker. It can display the images taken by the camera in real time, to achieve more human-computer interaction of artificial intelligence operations.
Onboard Resources
Professional application software and models
N-VIDIA Software
All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained Models
Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA Platforms for Robotics, AI Speech, and Smart Cities
N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications
N-VIDIA Isaac
Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA Riva
N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA Metropolis
N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
Product Show
Outline dimensions

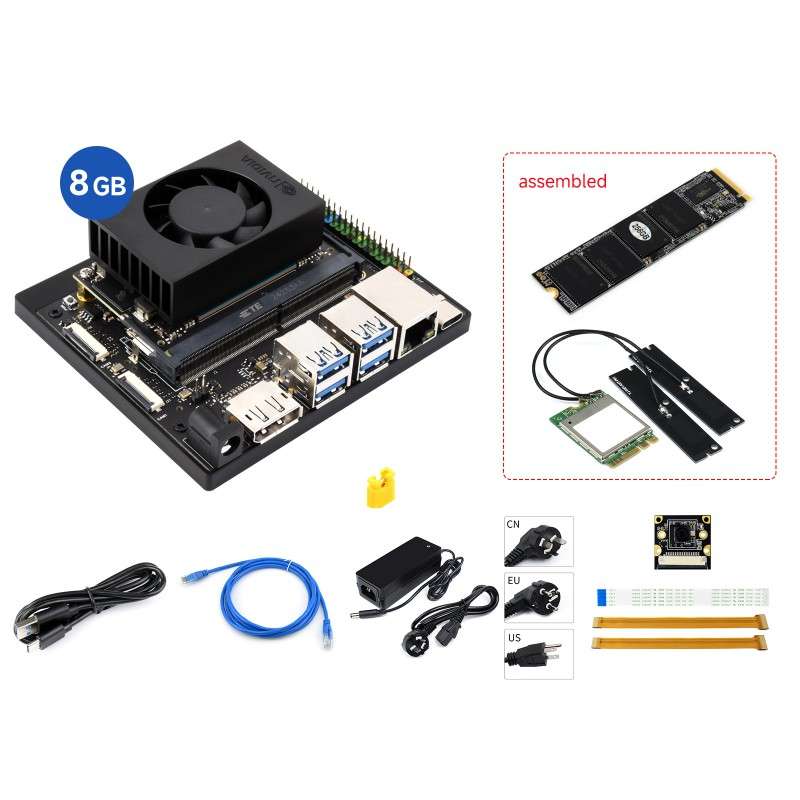

Balenie Obsahuje / Package Content
JETSON-ORIN-NANO-DEV-KIT-A
- Waveshare Orin Nano development kit:
Jetson Orin Nano Module x1
JETSON-ORIN-IO-BASE x1
Cooling fan x1
256GB NVMe Solid State Drive (assembled) x1
Wireless network card (assembled) x1 - USB Type A to Type-C cable (~1m) x1
- Ethernet cable (~1.5m) x1
- Jumper x1
- Power adapter x1
- IMX219-77 Camera (with FFC cable) x1
- Camera FPC cable ~15cm (2PCS) x1
