    UPS Power Module (B) For Jetson Nano, 5V Uninterruptible Power Supply, 5A High Current, Pogo Pins Connector

    Uninterruptible Power Supply For Jetson Nano

    Power Jetson Nano Seamlessly From Power Connection OR The Backup Batteries

    5A high current, pogo pins connector

    Features At A Glance
    • I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
    • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
    • Onboard 5V regulator, up to 5A (MAX) continuous output current, more sufficient power source for Jetson Nano
    • Batteries warning indicators, easy to check if the battery is connected correctly
    • Comes with development resources and manual
    Specifications
    OUTPUT VOLTAGE 5V CHARGER 8.4V 2A
    CONTROL BUS I2C DIMENSIONS 100 × 79mm
    BATTERY SUPPORT 4x 18650 Li battery (NOT included) MOUNTING HOLE SIZE 2.5mm
    Uninterruptible Power

    It is able to charge the batteries and provide power output at the same time from external power supply
    Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

    Product Compatibility

    Mounting Holes Are Compatible With Jetson Nano Developer Kit (B01) And Jetson Nano 2GB Developer Kit

    Pogo Pins Connector

    Communicating Via I2C Bus Through Pogo Pins, No Other IO Pin Required

    Real Time Monitoring

    Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity Via I2C

    When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

    Safe And Stable Circuit Design

    Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
    Along With The Equalizing Charge Feature, More Safe And Stable

    Longer Battery Life

    Supports 4x 18650 Batteries

    Outline Dimensions
    Resources & Services

    Package Content

    • The 18650 batteries are NOT included
    • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
    1. UPS Power Module (B) x1

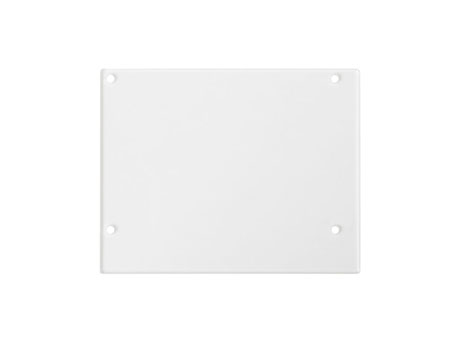

    2. Acrylic protection panel x1
    3. OPTIONS 8.4V battery charger x1
    4. Screws pack x1
