7inch 720 × 1280 Industrial HMI All-in-one Touch Display For Raspberry Pi 4/5, Dual 4K HDMI Touch, Aluminum (WS-31604)
WS-31604
€85.49
69.50 € tax excl.
7inch 720 × 1280 Industrial HMI All-in-one Touch Display For Raspberry Pi 4/5, Dual 4K HDMI Touch, Aluminum (WS-31604)
7inch 720 × 1280 Industrial HMI All-in-one Touch Display For Raspberry Pi 4/5, Dual 4K HDMI Touch, Aluminum (WS-31604)
- Part No.: RPI-HMI-7A-ACCE (EU)
- with Power Supply + TF Card
7inch 720 × 1280 Industrial HMI All-in-one Touch Display For Raspberry Pi 4 / 5, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case For Efficient Heat Dissipation
7inch Industrial HMI All-in-one touch Display
for Raspberry pi
for Raspberry pi
High Resolution | 10-point Touch | Aluminum alloy case
The display orientation is portrait by default, 720 × 1280 resolution (H×V)
Change the software config for landscape display
- Size
7″ - Resolution
720 × 1280 - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive
- Size
- Touch Points
10-Point - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding - Panel Coating
Anti-Fingerprint - Display Interface
Dual Standard HDMI
4K Output
- Touch Points
- Power Port
Type-C/Screw Terminal - Brightness
450cd/m² - Enclosure
Aluminum Alloy
- Power Port
Version Options
Pi5 All-in-one Display
(Raspberry Pi 5-4GB is included, assembled before shippment)
Pi4 All-in-one Display
(Raspberry Pi 4-2GB is included, assembled before shippment)
RPI-HMI-7A-ACCE
Touch Display + Power Supply + TF Card + Accessories pack
(the Raspberry Pi is NOT included)
RPI-HMI-7A-ACCE-B
Touch Display + Accessories pack only, without Power Supply and TF Card
(the Raspberry Pi is NOT included)
Toughened Glass Panel
Sensitive touch control with High Resolution display, durable design
Built-in Raspberry Pi (Optional)
Pi5 All-in-one Display: quad-core Arm Cortex-A76 64-bit 2.4GHz CPU
Pi4 All-in-one Display: quad-core Arm Cortex-A72 64-bit 1.5GHz CPU
Raspberry Pi 5
Raspberry Pi 4
* the Raspberry Pi is optional.
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
- Adopts anti-fingerprint panel coating, easy to clean
Adjustable brightness via software
Excellent heat dissipation
Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries
Two power supply methods
Supports power supply via screw terminal or USB Type-C Port
VESA Mounting Support
Easily adaptable to various monitor arms, enjoy a flexible installation experience
* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.
Interface Introduction
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB2.0 port x 2
- USB3.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port
Outline Dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.

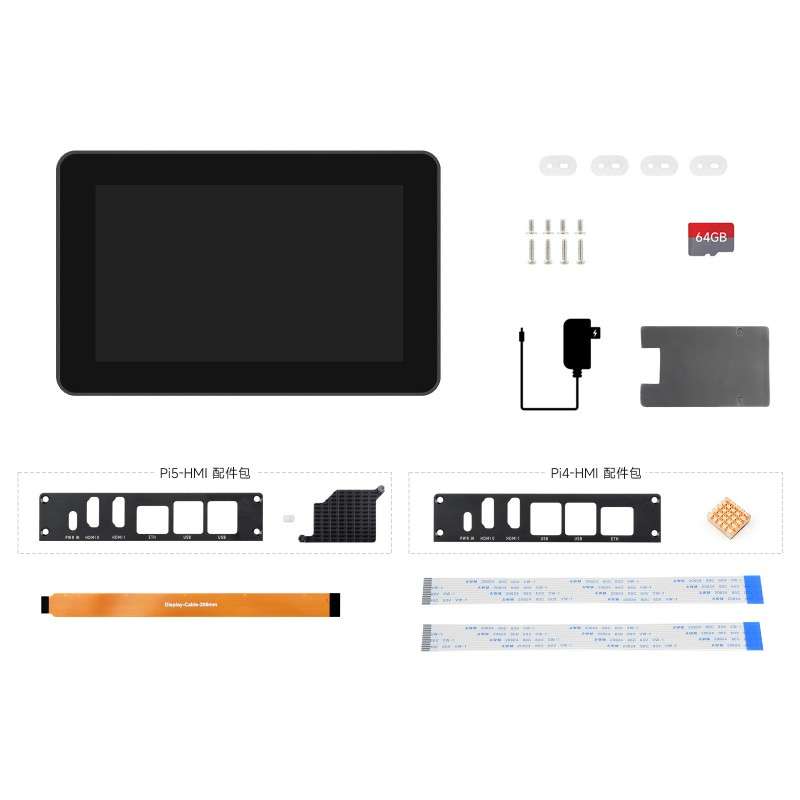

Balenie Obsahuje / Package Content
RPI-HMI-7A-ACCE
- 7inch touch display × 1
- Mounting buckle (4PCS) × 1
- Screws pack × 1
- TF card 64GB × 1
- OPTIONS 27W power supply × 1
- 5W thermal pad × 1
- Pi5-HMI Accessories Pack:
- PI5 side panel × 1
- Aluminum alloy heatsink × 1
- Silicon button × 1
- Pi4-HMI Accessories Pack:
- PI4 side panel × 1
- Copper heatsink × 1
- Pi5-Display-Cable ~200mm × 1
- 22PIN FFC Cable (2PCS) ~200mm × 1
WS-31604
