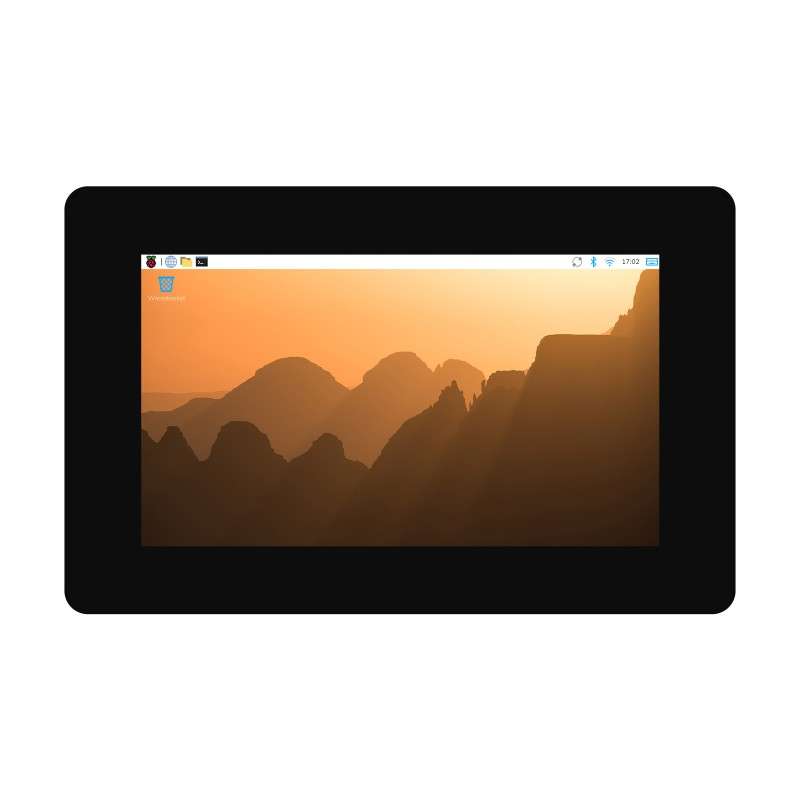

5inch DSI Capacitive Touch Display, 720×1280, IPS 5-Point Touch, Optical Bonding Toughened Glass (WS-33898)
WS-33898
€45.39
36.90 € tax excl.
5inch DSI Capacitive Touch Display, 720×1280, IPS 5-Point Touch, Optical Bonding Toughened Glass (WS-33898)
5inch DSI Capacitive Touch Display, 720×1280, IPS 5-Point Touch, Optical Bonding Toughened Glass (WS-33898)
5inch DSI Capacitive Touch Display, 720×1280 Pixels, IPS Panel, 5-Point Touch, Optical Bonding Toughened Glass Panel, optional protective case
5″ DSI Capacitive Touch Display
The display orientation is portrait by default, 720 × 1280 resolution (H×V).
Change the software config for landscape display.
- Size
5″ - Resolution
720 × 1280 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
178° - Touch Type
Capacitive - Touch Points
5-Point - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding - Touch Interface
I2C - Enclosure (optional)
ABS Material
- Size
Version Options
5-DSI-TOUCH-B
Standard version
5-DSI-TOUCH-B-WITH-CASE
with protective black case
(suitable for Raspberry Pi 5 only)
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch
ESP32-P4
Supports LVGL GUI programs, 5-point touch
RK3506
Supports Buildroot / Ubuntu, etc. 5-point touch
RK3576
Supports Buildroot / Debian / Ubuntu / Android, etc. 5-point touch
* (the case supports Raspberry Pi 5 only, due to connector layout)
connection examples
Working with Raspberry Pi 5
Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin
with protective case (suitable for Raspberry Pi 5 only)
Working with Raspberry Pi 4B
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
Working with ESP32-P4-Module-DEV-KIT
Working with Luckfox Lyra
Working with Luckfox Omni3576
* for reference only, the above controller boards or hosts are NOT included
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
5-Point Capacitive Touch
- Up to 5-point touch, depending on the operating system
- Up to 6H hardness toughened glass panel
- Optical bonding, provides clear image, dustproof
Supports backlight adjustment via software
Thinner and more space-saving
The total thickness of the LCD is only 8mm*, lightweight and nice looking
* Note: Does not include the standoff height.
interface definition
with protective case
outline dimensions
Standard version
The protective black case
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Balenie Obsahuje / Package Content
5-DSI-TOUCH-B
- 5-DSI-TOUCH-B x1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC 22PIN cable ~200mm (opposite sides) x1
- FFC 22PIN cable ~100mm (opposite sides) x1
- MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
- Standoffs x1
