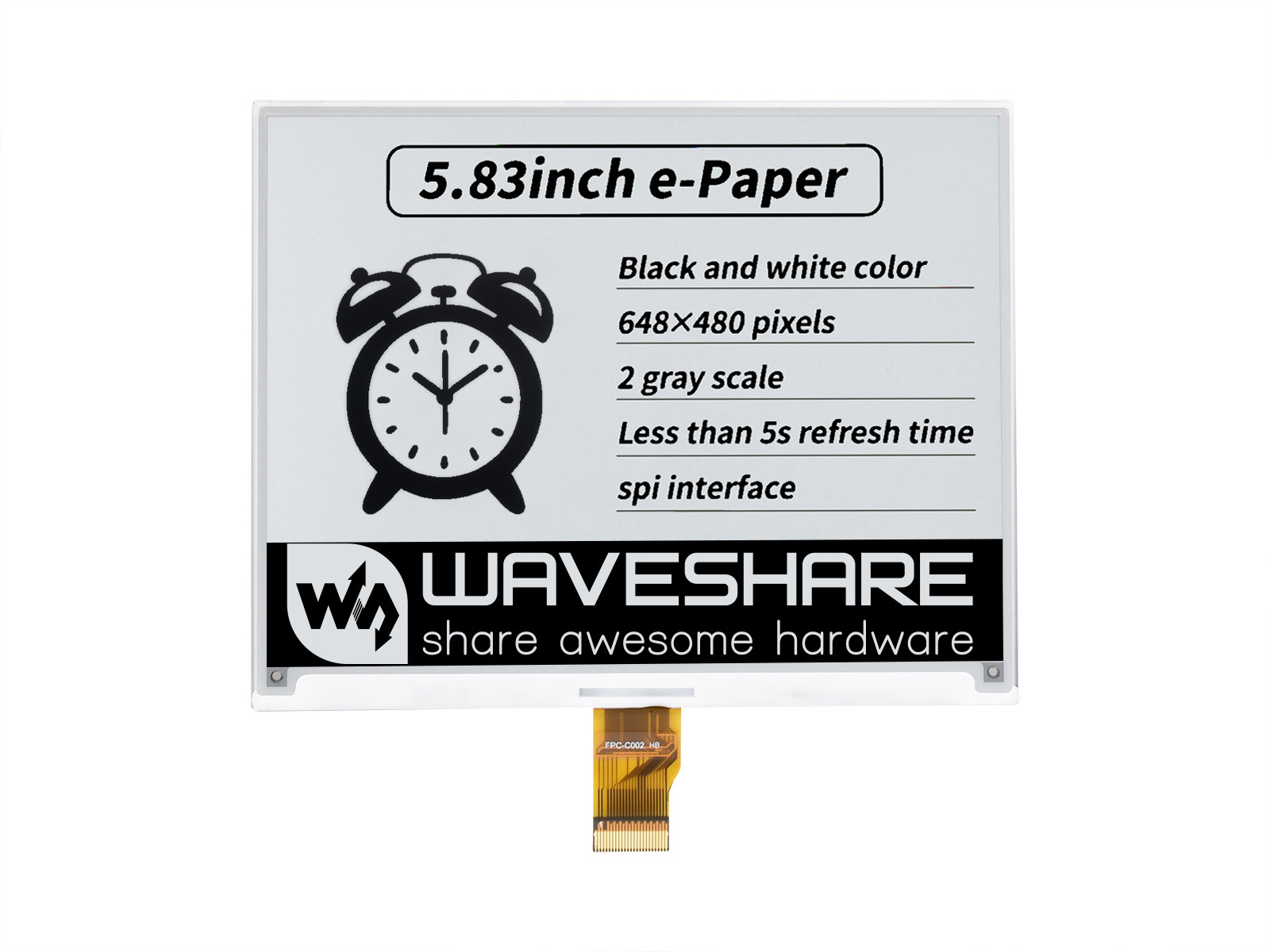

      600x448, 5.83inch E-Ink display HAT for Raspberry Pi, SPI interface

      Overview

      This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface.

      Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

      Features

      • No backlight, keeps displaying last content for a long time even when power down
      • Ultra low power consumption, basically power is only required for refreshing
      • Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
      • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
      • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

      Specifications

      • Operating voltage: 3.3V~5V
      • Interface: SPI
      • Outline dimension: 125.40mm × 99.50mm
      • Display size: 118.80mm × 88.26mm
      • Dot pitch: 0.198 × 0.197
      • Resolution: 600 × 448
      • Display color: black, white
      • Grey level: 2
      • Full refresh time: 3.5s
      • Refresh power: 26.4mW(typ.)
      • Standby power: <0.017mW
      • Viewing angle: >170°

      Interface

      SYMBOLDESCRIPTION
      VCC 3.3V~5V
      GND Ground
      DIN SPI MOSI pin
      CLK SPI SCK pin
      CS SPI chip selection, low active
      DC Data/Command selection (high for data, low for command)
      RST External reset, low active
      BUSY Busy status output, low active

      Dimensions

      5.83inch e-Paper HAT dimensions

      Package Content

      1. 5.83inch e-Paper x1
      2. e-Paper Driver HAT x1
      3. RPi screws pack (2pcs) x1
      4. PH2.0 20cm 8Pin x1

      Development Resources

      Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT

      Selection Guide

      Part NumberColorsGrey LevelResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh Time (s)InterfacePi Header1
      1.54inch e-Paper Module black, white 2 200x200 27.60 × 27.60 48.0 × 33.0 2 0.3 SPI ×
      1.54inch e-Paper Module (B) red, black, white 2 200x200 27.60 × 27.60 48.0 × 33.0 8 N/A SPI ×
      1.54inch e-Paper Module (C) yellow, black, white 2 152x152 27.51 × 27.51 48.0 × 33.0 27 N/A SPI ×
      2.13inch e-Paper HAT black, white 2 250x122 48.55 × 23.71 65.0 × 30.2 2 0.3 SPI
      2.13inch e-Paper HAT (B) red, black, white 2 212x104 48.55 × 23.71 65.0 × 30.2 15 N/A SPI
      2.13inch e-Paper HAT (C) yellow, black, white 2 212x104 48.55 × 23.71 65.0 × 30.2 15 N/A SPI
      2.7inch e-Paper HAT black, white 2 264x176 57.29 × 38.19 85.0 × 56.0 6 N/A SPI
      2.7inch e-Paper HAT (B) red, black, white 2 264x176 57.29 × 38.19 85.0 × 56.0 15 N/A SPI
      2.9inch e-Paper Module black, white 2 296x128 66.89 × 29.05 89.5 × 38.0 2 0.3 SPI ×
      2.9inch e-Paper Module (B) red, black, white 2 296x128 66.89 × 29.05 89.5 × 38.0 15 N/A SPI ×
      2.9inch e-Paper Module (C) yellow, black, white 2 296x128 66.89 × 29.05 89.5 × 38.0 15 N/A SPI ×
      4.2inch e-Paper Module black, white 2 400x300 84.80 × 63.60 103.0 × 78.5 4 N/A SPI ×
      4.2inch e-Paper Module (B) red, black, white 2 400x300 84.80 × 63.60 103.0 × 78.5 15 N/A SPI ×
      4.2inch e-Paper Module (C) yellow, black, white 2 400x300 84.80 × 63.60 103.0 × 78.5 15 N/A SPI ×
      4.3inch e-Paper UART Module black, white 4 800x600 88.00 × 66.00 118.0 × 75.0 1.5 N/A UART ×
      5.83inch e-Paper HAT black, white 2 600x448 118.8 × 88.26 125.4 × 99.5 3.5 N/A SPI
      5.83inch e-Paper HAT (B) red, black, white 2 600x448 118.8 × 88.26 125.4 × 99.5 14 N/A SPI
      5.83inch e-Paper HAT (C) yellow, black, white 2 600x448 118.8 × 88.26 125.4 × 99.5 26 N/A SPI
      7.5inch e-Paper HAT black, white 2 640x384 163.20 × 97.92 170.2 × 111.2 6 N/A SPI
      7.5inch e-Paper HAT (B) red, black, white 2 640x384 163.20 × 97.92 170.2 × 111.2 16 N/A SPI
      7.5inch e-Paper HAT (C) yellow, black, white 2 640x384 163.20 × 97.92 170.2 × 111.2 16 N/A SPI
      1. Standard Raspberry Pi header on module, allowed to be attached onto Pi directly, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
