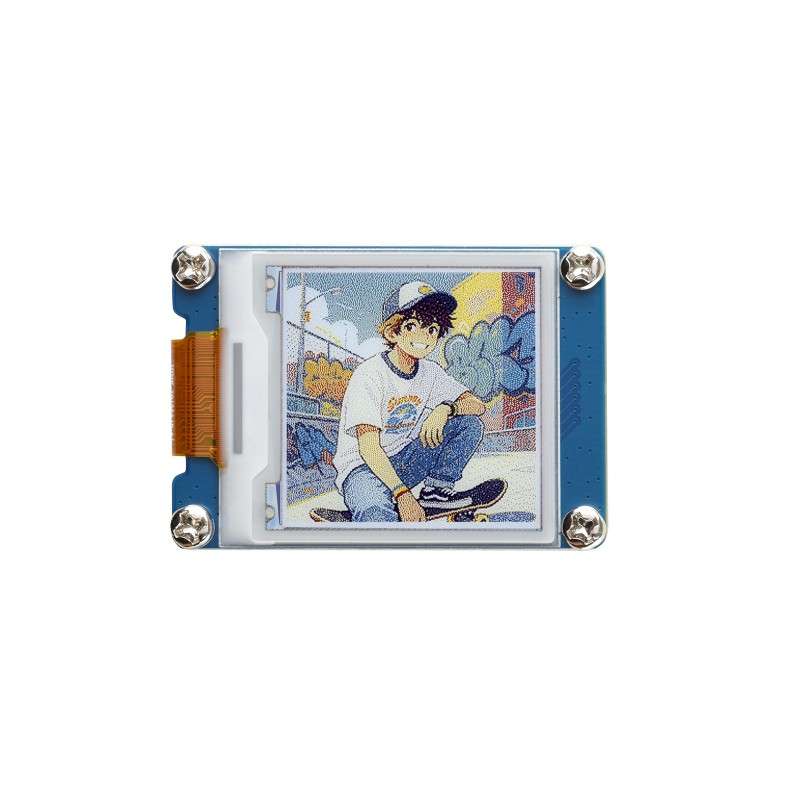

1.54inch e-Paper display (E), E Ink Spectra 6 (E6) full-color, 240×240, SPI (WS-35486) with driver board
WS-35486
€14.64
11.90 € tax excl.
1.54inch e-Paper display (E), E Ink Spectra 6 (E6) full-color, 240×240, SPI (WS-35486) with driver board
1.54inch e-Paper display (E), E Ink Spectra 6 (E6) full-color, 240×240, SPI (WS-35486) with driver board
- Part No.:1.54inch e-Paper Module (E)
- with driver board
1.54inch e-Paper display (E), E Ink Spectra 6 (E6) full-color, 240×240 pixels, SPI Interface
1.54″ Full-Color e-Paper (E)
low power, wide viewing angle, paper-like effect without electricity
Ideal for shelf labels, industrial instruments, ID badges...
Note: the driver board is optional, please refer to the Package Content for detailed part list.
- Size
1.54″ - Resolution
240 × 240 - Viewing Angle
>170° - Display Color
E6 Full Color - Grey Scale
2
- Size
- Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
Version Options
1.54inch e-Paper (E)
raw display, without driver board
1.54inch e-Paper Module (E)
with driver board
Features at a glance
- No backlight required; keeps the last displayed content visible for a long time even after power-off
- Ultra low power consumption; basically power is only required for refreshing
- Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32)
- Optional for e-Paper driver board:
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | E6 Full Color (E Ink Spectra 6) |
|---|---|---|---|
| with driver board: 3.3V / 5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 37.32 × 31.8 × 0.85 (mm) | full refresh time | 27s |
| with driver board: 48.00 × 33.00 (mm) | |||
| display size | 27.0 × 27.0 (mm) | refresh power | <40mW |
| DOT PITCH | 0.1125 × 0.1125 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 240 × 240 pixels | viewing angle | >170° |
E Ink Spectra 6 technology
E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.
More advanced performance
The resolution is up to 200ppi, features a wider range of operating temperature and faster screen refresh time. And it is more power-saving, aligning with ESG trends for energy efficiency and carbon reduction
Innovative microcup full color technology platform
Using white, red, yellow, and blue charged particles to produce six primary colors, and employing dithering technology to create vivid and saturated full color images.
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Optional for e-Paper driver board
Onboard SPI Control Interface, for use with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | GND |
| DIN | SPI MOSI pin |
| SCLK | SPI SCLK pin |
| CS | SPI chip select pin (low active) |
| DC | Data/Command control pin (high for data, low for command) |
| RST | External reset pin (low active) |
| BUSY | Busy status output pin |
| PWR | Power control pin |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Outline dimensions
1.54inch e-Paper (E)
1.54inch e-Paper Module (E)
Balenie Obsahuje / Package Content
1.54inch e-Paper Module (E)
- 1.54inch e-Paper Module (E) × 1
- MX1.25 9PIN cable ~20cm × 1
WS-35486
Specific References
