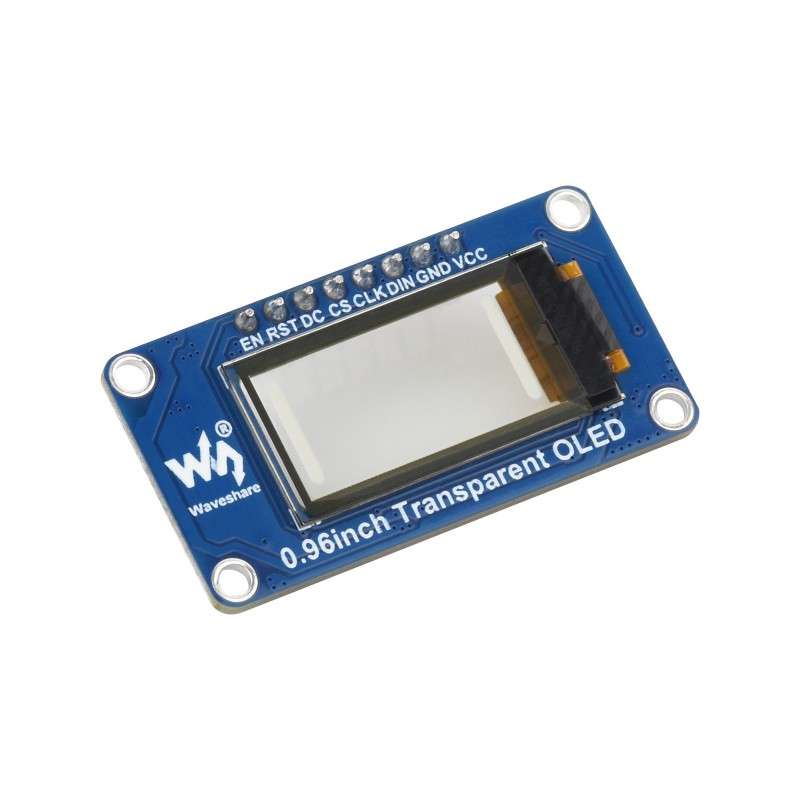

0.96inch Transparent OLED Display Module, 128 × 64 Resolution, SPI/I2C Interface, SSD1312 Driver IC (WS-33163)

0.96inch Transparent OLED Display Module, 128 × 64 Resolution, SPI/I2C Interface, SSD1312 Driver IC

0.96inch Transparent OLED Display Module

Built-in SSD1312 Driver IC, with SPI / I2C communication Interface

Comes with examples for Raspberry Pi, ESP32, STM32, etc.



• • Size0.96"
  • Resolution128 × 64
  • Display ColorWhite on Black

• InterfaceSPI/I2C
• Display PanelOLED
• DriverSSD1312

Features

• • 0.96inch transparent OLED display module with an SSD1312 driver IC
  • Uses 4-wire SPI communication by default and can be switched to I2C communication via resoldering an onboard resistor, offering good compatibility and fast data transmission
  • Comes with examples for Raspberry Pi, ESP32 and STM32, supporting text, graphics, and BMP images display for a quick start and further development

Specifications

Operating voltage	3.3V	Display panel	OLED
Resolution	128 × 64 pixels	Pixel size	0.15 × 0.15mm
Communication interface	4-wire SPI (by default) / I2C (selectable via resoldering an onboard resistor)	Driver IC	SSD1312
Display size	10.86 × 21.74mm	Outline dimensions	22.00 × 42.35mm
Display color	White

* There are non-transparent white areas on both sides of the screen as shown, but they do not affect the display.

Control Interface

VCC	Power (3.3V input)
GND	Ground
DIN	Data input
CLK	Clock signal input
CS	Chip select (low active)
DC	Data/command selection: low for command, high for data
RST	Reset (low active)
EN	Power enable, on by default

Hardware connection

Connecting to ESP32-S3 board via SPI



Connecting to RP2350 Plus board via SPI



Product Showcase

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/0.96inch_Transparent_OLED

Balenie Obsahuje / Package Content

0.96inch Transparent OLED x1
