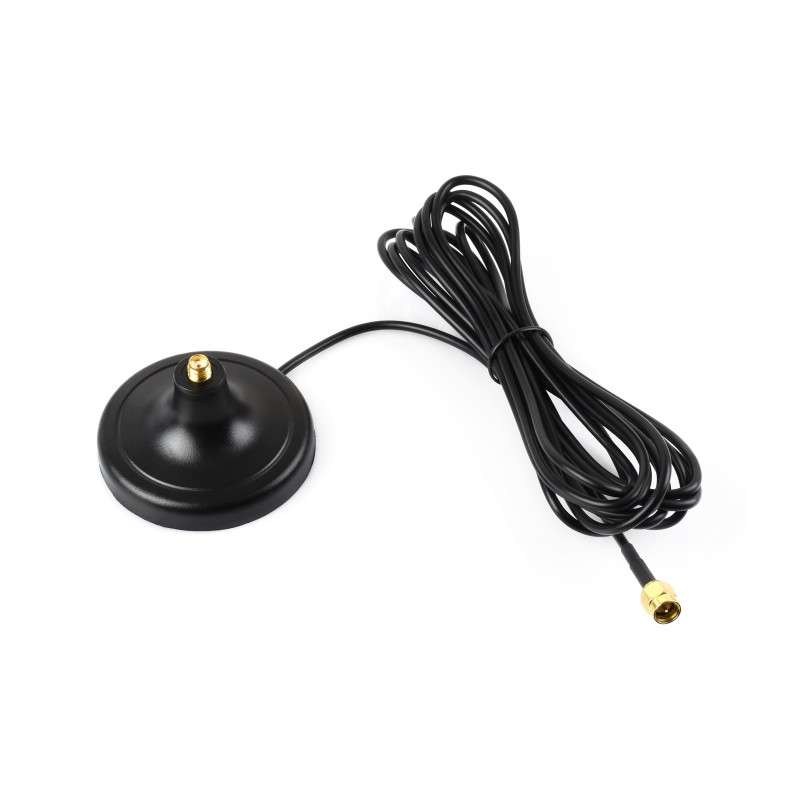

SMA Magnetic Mount Antenna Base, SMA Connector, 3m Coaxial Cable, Compatible Multiple GNSS Positioning Modules (WS-33812)

SMA Magnetic Mount Antenna Base, SMA connector, 3m coaxial cable, Compatible with multiple GNSS positioning modules

SMA Magnetic Mount Antenna Base

SMA connector | 3m coaxial cable | magnetic base



Specifications

Frequency Range	0GHz ~ 6GHz	Installation	Magnetic base mounting
impedance	50Ω	cable	RG174 coaxial cable
Power input (MAX)	50W	Cable Length	3m
Base connector	SMA female	Cable connector	SMA male
dimensions	Φ60.5 × 36 (mm)	Operating temperature	-25℃ ~ +75℃

Connection Examples

Connecting to Q39 GNSS Helical Antenna and Q25 GNSS Helical Antenna

Connecting to 5G/4G/3G/2G External Antenna



Connecting to 5G/4G/3G/GNSS External Antenna

for reference only, please refer to the part list for detailed package content

Outline dimensions

Balenie Obsahuje / Package Content

SMA Magnetic Mount Antenna Base x1
