      PAJ7620U2 Gesture Sensor, I2C Interface, Recognises up to 9 Gestures

      Overview

      The PAJ7620U2 Gesture Sensor allows to recognise up to 9 gestures via the I2C interface, it is compatible with 3.3V/5V levels.

      Compare with solutions like APDS-9960, this module is faster, more accurate, while recognising more gestures with higher anti-interference capability. It suits for low power applications such as smart home, robot interaction, etc.

      Features

      • Based on PAJ7620U2 sensor, directly recognises 9 basic gestures, supports gesture interrupt output
      • Embedded infrared LED and optical lens, be able to work in low-light even dark environment
      • I2C interface, requires only two signal pins to control
      • Onboard voltage translator, compatible with 3.3V/5V logic level
      • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

      Specifications

      • Operating voltage: 3.3V/5V
      • Communication interface: I2C
      • Recognition distance: 5cm ~ 15cm
      • Supported gestures: up, down, left, right, forward, backward, clockwise, anticlockwise, shake
      • Recognition rate: 240Hz
      • Recognition angle: 60° (diagonal)
      • Ambient light immunity: <100k Lux
      • Dimensions: 20mm × 20mm
      • Mounting hole size: 2.0mm

      Applications

      • Smart home, office and education
      • Robot interaction, toys, motion sense gaming devices

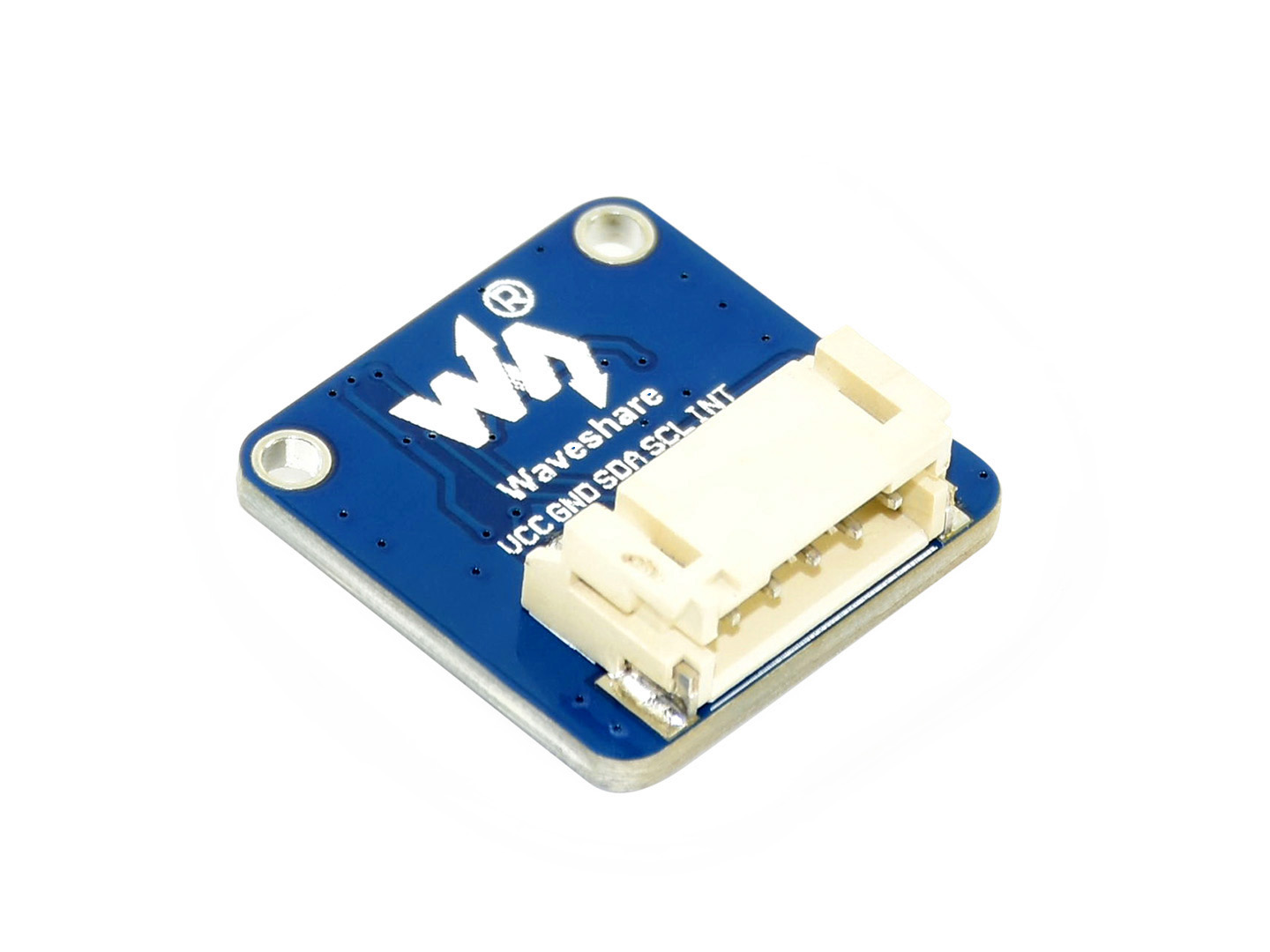

      Interface

      SYMBOLDESCRIPTION
      VCC 3.3V/5V power supply
      GND power ground
      SDA I2C data pin
      SCL I2C clock pin
      INT interrupt output, connects to I/O pin

      Dimension


      Development Resources

      Wiki: www.waveshare.com/wiki/PAJ7620U2_Gesture_Sensor

      Package Content

      1. PAJ7620U2 Gesture Sensor x1
      2. PH2.0 5PIN wire x1
