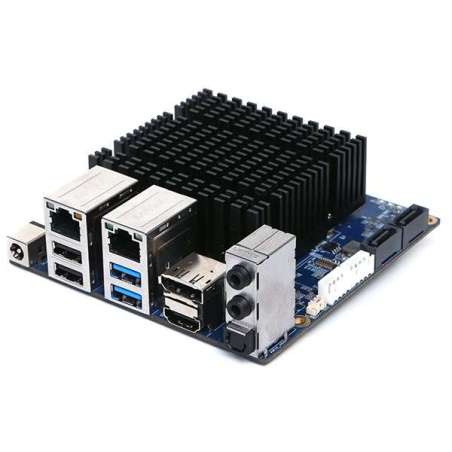

ODROID-H2 Rev B (Hardkernel) x86 Intel Celeron J4105 Processor

Key Features

2.3Ghz Quad-core processor J4105 (14nm) with 4MiB Cache
Dual-channel Memory DDR4-PC19200 (2400MT/s)
Total 32GiB RAM Space with two SO-DIMM slots
4 x PCIe 2.0 for one M.2 NVMe storage
2 x Gbit Ethernet ports
2 x SATA 3.0
SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
Intel UHD Graphics 600 (Gen9.5 LP GT1) up to 700Mhz
HDMI 2.0 and DP 1.2 multiple 4K/60Hz video outputs
G181118380416

Ubuntu 18.10 and 18.04 x86 64bit OS compatible out of the box. Download the OS image from official Ubuntu homepage.

Board Detail

A	CPU (Intel Celeron J4105 Processor)	K	1 x DisplayPort 1.2
B	2 x DDR4 SO-DIMM slots (Dual channel memory support)	L	2 x RJ45 Ethernet Ports (10/100/1000)
C	1 x M.2 PCI Express Module Socket (NGFF-2280)	M	5 x System LED Indicators
D	1 x eMMC (Embedded Multimedia-Card) Socket	N	1 x Peripheral Expansion Header (20-pin)
E	2 x SATA Power Connectors	O	1 x Power Switch
F	2 x SATA3 6.0 Gb/s Data Connectors	P	1 x Reset Switch
G	1 x DC Power Jack	Q	1 x Backup Battery Connector (2-pin)
H	2 x USB 3.0	R	1 x Active Cooling Fan Connector (4-pin)
I	2 x USB 2.0	S	1 x Audio out 1 x Audio in 1 x SPDIF out
J	1 x HDMI 2.0	S	1 x Audio out 1 x Audio in 1 x SPDIF out

Specifications

Form Factor	Dimensions: 110mm x 110mm x 47mm Weight: 285 g including heatsink
Processor	Intel Celeron J4105 Processor (14nm, 2.3Ghz Quad-Core, TDP 10W) 4MB L2 Cache UHD Graphics 600 (Gen 9.5 LP GT1 up to 700MHz) Fan-less design
Memory	2 x DDR4 1.2V SO-DIMM slots Dual Channel, up to 2400 MT/s (DDR4-PC19200) Max memory capacity 32GB DDR3 is not supported
Storage	1 x eMMC connector (bootable and selectable on BIOS) Various eMMC modules can be purchased at Hardkernel store 2 x SATA3 6Gbps 1 x M.2 NVMe slot (PCIe 2.0 x 4, supports NGFF-2280 cards) M.2 SATA SSD is not supported
Networking	2 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps) Realtek RTL8111G Supports Wake-On-Lan LED indicators (Green: Link, Amber: Traffic)
Video	1 x DisplayPort 1.2 (up to 4K@60Hz) 1 x HDMI 2.0 (up to 4K@60Hz) Dual simultaneous display support
Audio	1 x Audio out (3.5mm jack) 1 x Audio in (3.5mm jack) 1 x SPDIF out (ALC662, HDA codec)
External I/O	2 x USB 3.0 Host ports 2 x USB 2.0 Host ports 1 x Peripheral Expansion Header (20-pin, 2.54mm pitch) 1 x DC 5V, 1 x DC 3.3V, 5 x GND 2 x UART (TXD/RXD/RTS/CTS) 2 x I2C (SCL/SDA) 1 x External Power Button All 3.3V I/O signal level
Other features	Passive Heatsink BIOS Backup Battery Maintains system time and BIOS settings Power Button Reset Button System LEDS Indicators: Red (PWR) – Solid light when DC power is supplied Blue (left, ALIVE) – Solid light when System is running Blue (right, RESET) – When the RESET button is pressed Amber (SATA) – Flashes when there is data transfer Green (NVMe) – Flashes when there is data transfer Active Cooling Fan Connector (5V 4-pin, PWM input + TACHO output) Active Cooling Fan is optional Connector (4-pin, 1.25mm pitch)
Power	1 x DC jack : outer (negative) diameter 5.5mm, inner(positive) diameter 2.1mm DC 14V ~ 20V (up to 60W) DC 15V/4A power adaptor is recommended Power consumption: IDLE : ≃4W CPU Stress : ≃14W CPU+GPU Stress : ≃22W Power-off : ≃0.5W Suspend : ≃0.6W
