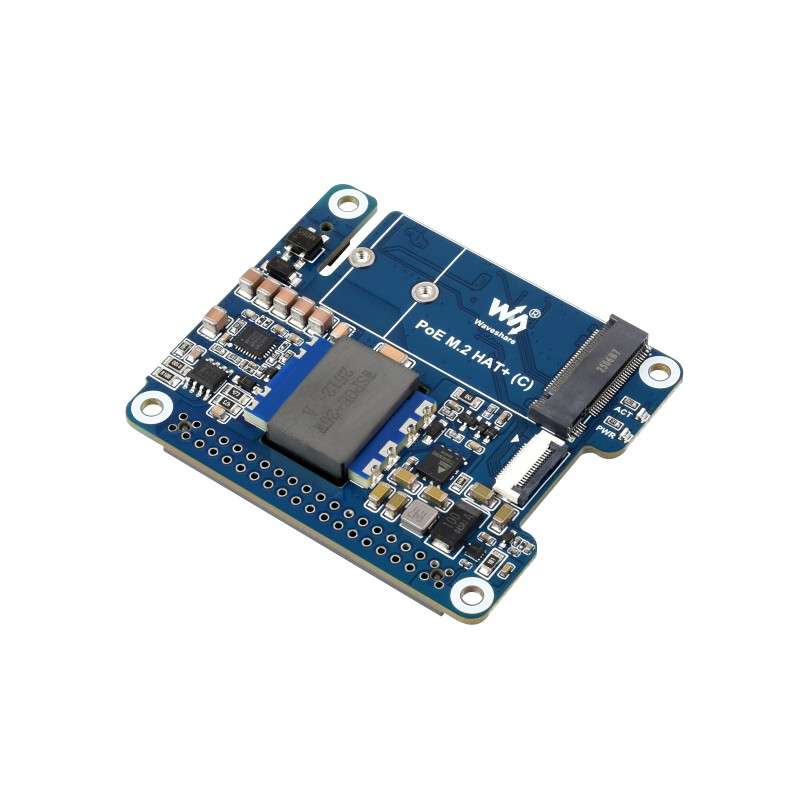

    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)
    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)
    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)
    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)
    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)
    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)

    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, NVMe M.2 Solid State (WS-31536)

    WS-31536
    €29.40

    23.90 € tax excl.

    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5,  NVMe M.2 Solid State (WS-31536)

    Quantity :
    OUT OF STOCK

    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5,  NVMe M.2 Solid State (WS-31536)

    • PoE M.2 HAT+ (C)

    PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading / Writing

    PCIe To M.2 with PoE HAT (C)

    Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

    Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

    PCIe To M.2 with PoE HAT (C), front view and features

    Specifications
    PoE power input 37V ~ 57V DC in
    Power output GPIO header: 5V 5A (MAX)
    Dimensions 56.5 × 66.0 (mm)
    Network standard IEEE 802.3af/at PoE

    Product comparison
    PoE M.2 HAT+ PoE M.2 HAT+ (B) PoE M.2 HAT+ (C)
    PoE power input 37V ~ 57V DC in
    Power output GPIO header: 5V 4.5A (MAX)
    2P header: 12V 2A (MAX)    		 GPIO header: 5V 5A (MAX)
    Network standard IEEE 802.3af/at PoE
    PoE Transformer Type Wire-wound transformer Planar transformer
    M.2 Solid State Drive support 2230 / 2242 2230 / 2242 / 2260 / 2280 2230 / 2242
    supported M.2 protocol Gen2/3
    compatible with official Pi 5 Active Cooler No (the product comes with cooling fan and heatsink) Yes Yes
    Booting PI5 From Solid State Drive supported
    Dimensions 56.5 × 70.0 (mm) 56.0 × 85.0 (mm) 56.5 × 66.0 (mm)


    Improves reading/writing speed of your Pi
    PCIe To M.2 with PoE HAT (C), improves reading/writing speed

    * for reference only, the Raspberry Pi 5 and Solid State Drive are not included.

    NVMe Drive Slot Support
    PCIe To M.2 with PoE HAT (C), NVMe Drive slot support

    * Only supports the NVMe Protocol Solid State Drives.


    Connecting to Pi 5 via 16PIN Cable

    Based on 16PIN PCIe Interface of Raspberry Pi 5.
    Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

    PCIe To M.2 with PoE HAT (C), connecting to PI 5 via 16PIN cable

    * for reference only, the Raspberry Pi 5 is not included.


    Onboard Dual LED Indicators

    Easy to monitor the Working Status

    PCIe To M.2 with PoE HAT (C), onboard dual LED indicators
    NVMe Drive Protocol Support

    Compatible With 2230 / 2242 Size M.2 Solid State Drive
    Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

    PCIe To M.2 with PoE HAT (C), compatible With 2230 / 2242 Size M.2 Solid State Drive
    Power Over Ethernet

    providing both network connection and power supply for your Raspberry Pi
    in one cable

    PCIe To M.2 with PoE HAT (C), Power Over Ethernet
    * for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.

    How to Install

    Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT

    PCIe To M.2 with PoE HAT (C), how to install

    * for reference only, please refer to the Package Content for detailed part list


    PCIe To M.2 with PoE HAT (C), Hat+ standard

    Outline dimensions
    PCIe To M.2 with PoE HAT (C), outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(C)

    Balenie obsahuje / Package Content

    1. PoE M.2 HAT+ (C) × 1
    2. 2*2PIN header × 1
    3. 2*20PIN header × 1
    4. Screws pack × 1
    5. SSD mounting screw × 1
