      PCIe To M.2 Multifunctional Adapter (E) For Raspberry Pi 5, 4K Output, PoE PCIe To M.2 Interface NVMe SSD (WS-35344)

      PCIe To M.2 Multifunctional Adapter (E) for Raspberry Pi 5, 4K Output, onboard PoE power supply and PCIe to M.2 interface circuits, supports NVMe Solid State Drives

      PCIe To M.2 Multifunctional Adapter (E)

      Supports Raspberry Pi 5, 4K Output

      onboard PoE power supply and PCIe to M.2 interface circuits, Supports NVMe Protocol Solid State Drive, High-Speed Reading / Writing, Improves Working Efficiency

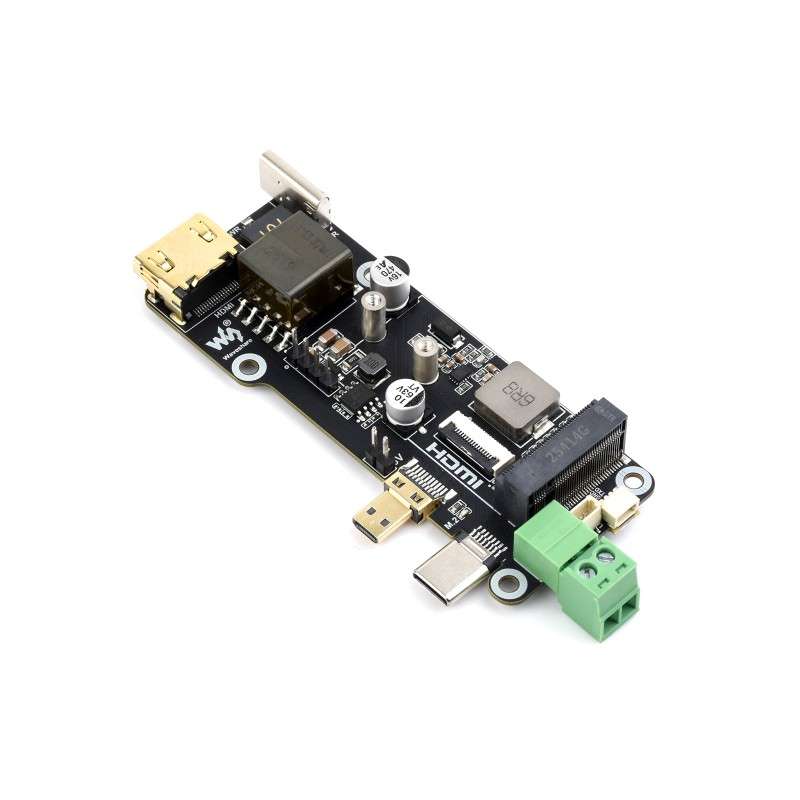

      PCIe To M.2 Multifunctional Adapter, front view
      M.2 Slot Expansion via Raspberry Pi 5 PCIe Interface

      Based on 16PIN PCIe Interface of Raspberry Pi 5

      PCIe To M.2 Multifunctional Adapter, Adapting M.2 slot via the PCIe interface of Pi 5

      * for reference only, please refer to the Package Content for detailed part list

      Onboard PoE circuit connected to Pi 5
      via adapter board

      Based on PoE Interface of Raspberry Pi 5

      PCIe To M.2 Multifunctional Adapter, Onboard PoE circuit connected to Pi 5 via adapter board

      * for reference only, please refer to the Package Content for detailed part list

      NVMe Solid State Drives Support

      Compatible With 2230 / 2242 Size M.2 Solid State Drives
      Supports Gen2 and Gen3 Modes, Supports Booting Pi 5 From Solid State Drive

      PCIe To M.2 Multifunctional Adapter, compatible With / 2242 / 2230 Size M.2 Solid State Drive
      Supports PoE power supply

      providing both network connection and power supply for your Raspberry Pi in one cable

      PCIe To M.2 Multifunctional Adapter, supports PoE power supply

      * for reference only, the Raspberry Pi 5 and switch are NOT included.

      Easy to connect the HDMI screen

      Converts Micro HDMI port to HDMI female port for easier connection

      PCIe To M.2 Multifunctional Adapter, connecting to Raspberry Pi 5

      * for reference only, please refer to the Package Content for detailed part list

      Three Power Supply Methods

      Supports Power Supply via Type-C port, 7 ~ 24V Screw Terminal, and PoE Ethernet port

      PCIe To M.2 Multifunctional Adapter, Three power supply methods
      Supports 4K Output
      PCIe To M.2 Multifunctional Adapter, dual 4K output
      Assembly Example
      PCIe To M.2 Multifunctional Adapter, assembly example

      * for reference only, please refer to the Package Content for detailed part list


      Outline dimensions
      PCIe To M.2 Multifunctional Adapter, outline dimensions

      Balenie Obsahuje / Package Content

      1. Pi5 Connector Adapter (E) x1
      2. PoE Adapter x1
      3. SH1.0 3PIN cable (opposite) 100mm x1
      4. SH1.0 3PIN cable 100mm x1
      5. 16PIN FFC cable 100mm (same direction) x1
      6. Solid State Drive mounting screw x1
      Waveshare Electronics
      WS-35344
