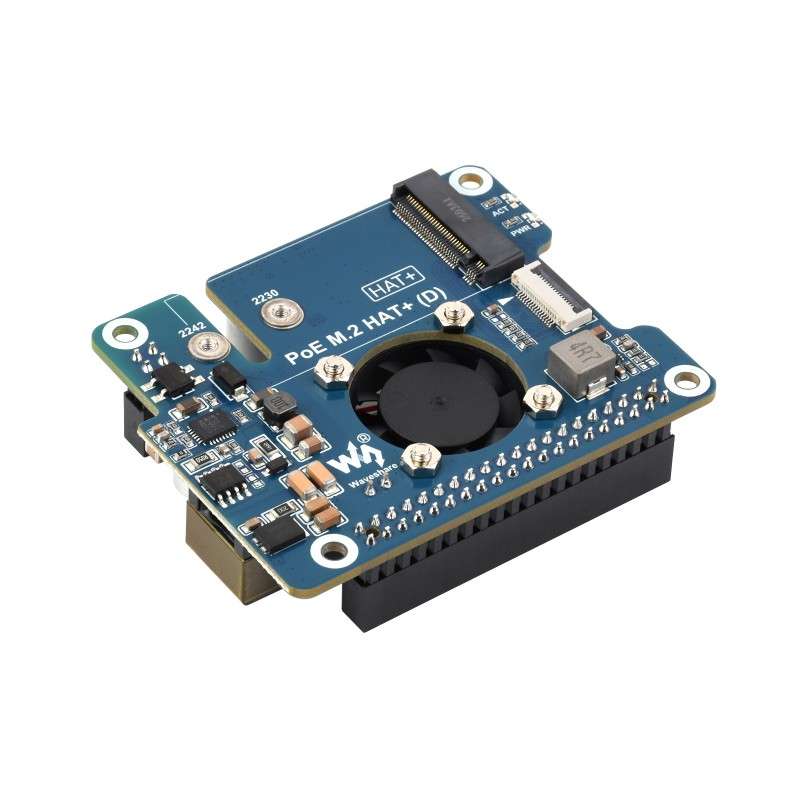

PCIe To M.2 Adapter With PoE Raspberry Pi 5, NVMe M.2 Solid State Drive, High-speed PoE HAT (WS-35421)
WS-35421
€25.71
20.90 € tax excl.
PCIe To M.2 Adapter With PoE Raspberry Pi 5, NVMe M.2 Solid State Drive, High-speed PoE HAT (WS-35421)
PCIe To M.2 Adapter With PoE Raspberry Pi 5, NVMe M.2 Solid State Drive, High-speed PoE HAT (WS-35421)
- Part No.:PoE M.2 HAT+ (D)
- without GPIO stackable headers
PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Supports 802.3af/at network standard, Raspberry Pi 5 PoE HAT
PCIe To M.2 with PoE HAT
Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard
Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing
Version Options
PoE M.2 HAT+
with 40PIN GPIO stackable headers, for peripheral expansion
PoE M.2 HAT+ (D)
without GPIO stackable header
Specifications
| PoE power input | 37V ~ 57V DC in |
|---|---|
| Power output | GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) |
| Dimensions | 56.5 × 70.0mm |
| Network standard | IEEE 802.3af/at PoE |
Product comparison
| Model | PoE M.2 HAT+ | PoE M.2 HAT+ (B) | PoE M.2 HAT+ (C) | PoE M.2 HAT+ (D) | |
|---|---|---|---|---|---|
| PoE power input | 37V ~ 57V DC in | ||||
| Power output (MAX) | GPIO header: 5V 4.5A 2P header: 12V 2A |
GPIO header: 5V 5A | GPIO header: 5V 4.5A 2P header: 12V 2A |
||
| Network standard | IEEE 802.3af/at PoE | ||||
| PoE Transformer Type | Wire-wound transformer | Planar transformer | Wire-wound transformer | ||
| M.2 Solid State Drive support | 2230 / 2242 | 2230 / 2242 / 2260 / 2280 | 2230 / 2242 | ||
| supported M.2 protocol | Gen2/3 | ||||
| compatible with official Pi 5 Active Cooler | No (the product comes with cooling fan and heatsink) | Yes | Yes | No (the product comes with cooling fan and heatsink) | |
| Booting PI5 From Solid State Drive | supported | ||||
| Dimensions (mm) | 56.5 × 70.0 | 56.0 × 85.0 | 56.5 × 66.0 | 56.5 × 70.0 | |
Improves reading/writing speed of your Pi
* for reference only, the Raspberry Pi 5 is not included.
NVMe Drive Slot Support
Note: Only supports the NVMe Protocol Solid State Drives.
M.2 Slot Expansion via Raspberry Pi 5
PCIe Interface
PCIe Interface
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list
Onboard Dual LED Indicators
Easy to monitor the Working Status
NVMe Drive Protocol Support
Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive
Power Over Ethernet
providing both network connection and power supply for your Raspberry Pi in one cable
* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.
Onboard 5V & 12V header outputs
5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi
Active Cooling fan
Accelerate Cooling Effect, More Stable Performance
* for reference only, the Raspberry Pi 5 is not included.
How to Install
Attach the thermal tapes first, then install the metal heatsink and fix the HAT
* for reference only, please refer to the Package Content for detailed part list
Outline dimensions
Balenie Obsahuje / Package Content
PoE M.2 HAT+ (D)
- PoE M.2 HAT+ (D) x1
- Metal heatsink x1
- 16P-Cable-40mm x1
- Thermal tape (3PCS) x1
- Screws pack x1
- Solid State Drive mounting screw x1
