Power Over Ethernet HAT (G) For Raspberry Pi 5, 5V 5A Output, Supports 802.3af/at PoE HAT (WS-27823)
WS-27823
€28.62
23.85 € tax excl.
Power Over Ethernet HAT (G) For Raspberry Pi 5, 5V 5A Output, Supports 802.3af/at PoE HAT (WS-27823)
Power Over Ethernet HAT (G) For Raspberry Pi 5, 5V 5A Output, Supports 802.3af/at PoE HAT (WS-27823)
S oficiálnou krabičkou Raspberry Pi 5 (With Raspberry Pi 5 Official Case)
Power Over Ethernet HAT (G) For Raspberry Pi 5, 5V 5A Output, Stable Performance, Supports 802.3af/At Network Standard, Raspberry Pi 5 PoE HAT, Optional For Raspberry Pi 5 Official Case
PoE HAT (G) For Raspberry Pi 5
Suitable For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard
5V 5A Output, Compatible With Raspberry Pi 5 Official Case
Version Options
PoE HAT (G)
the PoE HAT only
PoE HAT (G) Acce A
PoE HAT (G) + Raspberry Pi 5 Official Case (with cooling fan)
Features At A Glance
The PoE HAT (G) is an IEEE 802.3af/at-compliant PoE (Power Over Ethernet) HAT for Raspberry Pi 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header
- PoE capability，IEEE 802.3af/at-compliant
- Onboard original IC solution for more stable PoE power performance
- Adopts non-isolated switched-mode power supply (SMPS)
- Compact and easy to assemble
Specifications
| POE HAT (G) | |
|---|---|
| POE POWER INPUT | 38V ~ 57V DC in |
| POWER OUTPUT | GPIO header: 5V 5A (MAX) |
| DIMENSIONS | 56.5 × 64.98mm |
| NETWORK STANDARD | IEEE 802.3af/at PoE |
| RASPBERRY PI 5 OFFICIAL CASE | |
|---|---|
| INPUT VOLTAGE | 5V DC (supplied via four-pin fan header on Raspberry Pi 5) |
| FAN SPEED CONTROL | Pulse width modulation control with tachometer |
| MAXIMUM AIRFLOW | 2.79 CFM |
| MAXIMUM FAN SPEED | 8000 RPM ±15% |
| CASE MATERIAL | ABS (base, frame, lid) and PC (fan assembly) |
Suitable For Raspberry Pi 5
Standard Raspberry Pi 40PIN GPIO Header, Easy To Assemble Into The Official Case
Power Over Ethernet
Providing Both Network Connection And Power Supply For The Raspberry Pi 5 In One Cable
* for reference only, the Raspberry Pi 5 and the 120W switch are NOT included.
Compatible With Raspberry Pi 5 Official Case
Compact Size Design, Can Be Directly Installed Into The Raspberry Pi 5 Case
How To Install
Application Example
With This Product, You Can Use An Ethernet Cable With PoE Function To Power The Raspberry Pi Directly
* for reference only, please refer to the Package Content for detailed part list
Outline Dimensions

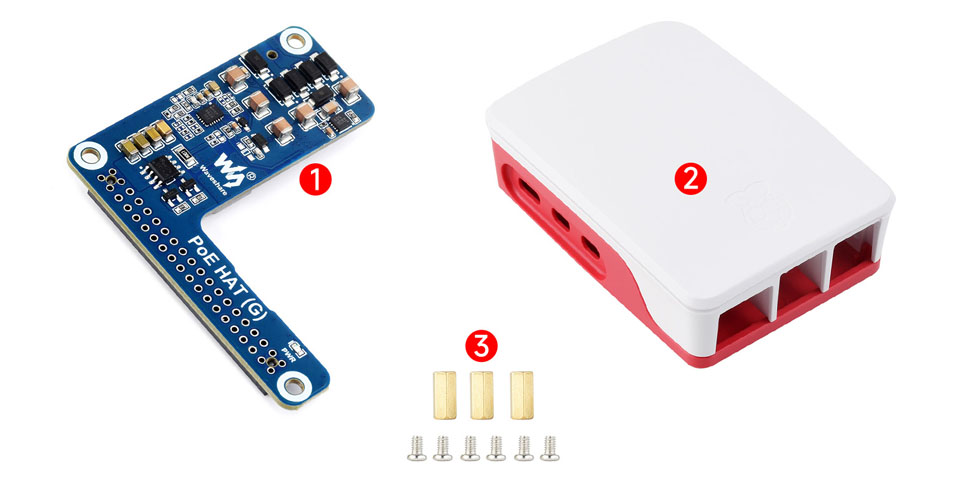

Balenie Obsahuje / Package Content
PoE HAT (G) Acce A
- PoE HAT (G) x1
- Raspberry Pi 5 Official Case x1
- Standoffs pack x1
