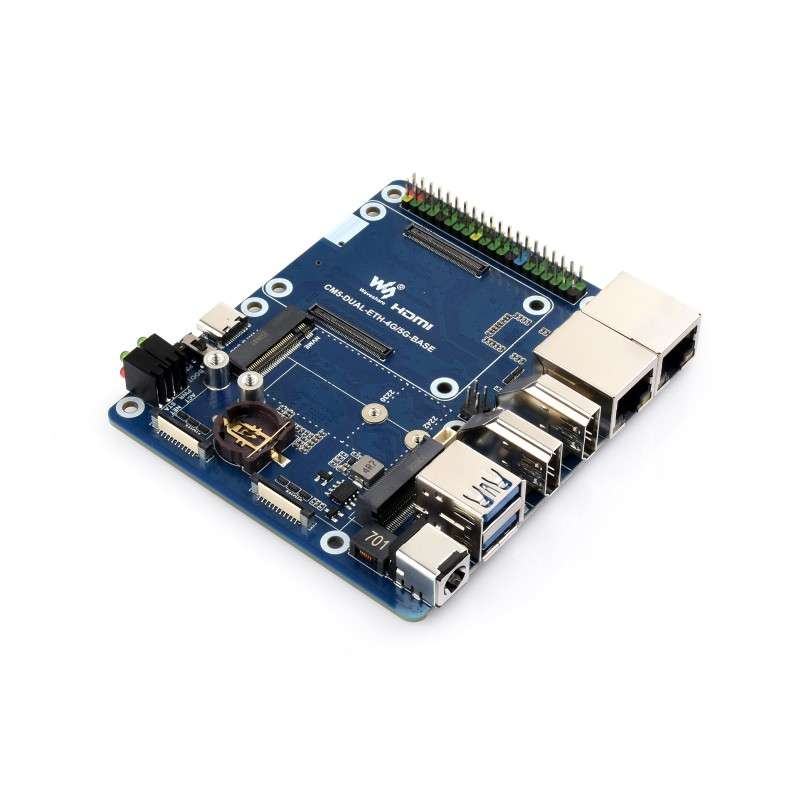

Dual Ethernet Base Board For Raspberry Pi CM5, 4G/5G, Dual 4K Display MIPI Interfaces, GPIO USB 3.2 Gen1 Ports, PoE (WS-32580)
WS-32580
€68.76
55.90 € tax excl.
Dual Ethernet Base Board For Raspberry Pi CM5, 4G/5G, Dual 4K Display MIPI Interfaces, GPIO USB 3.2 Gen1 Ports, PoE (WS-32580)
Dual Ethernet Base Board For Raspberry Pi CM5, 4G/5G, Dual 4K Display MIPI Interfaces, GPIO USB 3.2 Gen1 Ports, PoE (WS-32580)
Dual Ethernet Base Board For Raspberry Pi CM5, Supports 4G / 5G module, Dual 4K Display Outputs and Dual MIPI Interfaces, Onboard 40PIN GPIO Header And Dual USB 3.2 Gen1 Ports, PoE Module Support
Dual Ethernet Base Board for CM5
Designed for Raspberry Pi Compute Module 5
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | 1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1 |
| Connector | Raspberry Pi 40PIN GPIO header |
| USB | USB 3.2 Gen1 × 2 |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| Video | HDMI port × 2, supports dual 4K display outputs |
| M.2 | M.2 M KEY (PCIe Gen2/3 x 1) |
| M.2 (4G / 5G) | M.2 M KEY, supports connecting 4G / 5G communication module |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan Header | 5V, 4PIN JST-SH PWM fan connector |
| Power Input | 7V~36V wide voltage range DC jack, 5V 5A Type-C port |
| Dimensions | the base board: 99.60 × 87.00 (mm) |
Check the Compute Module 5 variants
What's the differences
| CM5 Base Board | Interface count and specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PoE | Gigabit ETH |
40PIN GPIO |
PCIe | USB① | MIPI | HDMI | RTC | Fan Header② |
Power Input |
Features | ||
 NANO A |
√ | 3.0×1 | ×2 | SH1.0 | √ | 5V | CM5 sized | |||||
 NANO B |
×1 | √ | 16PIN PCIe | 3.0×1 | ×2 | √ | SH1.0 | √ | 5V | CM5 sized | ||
 mini Base A |
×1 | √ | 16PIN PCIe | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | mini size | ||
 mini Base B |
×1 | √ | M.2 M KEY | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | mini size, onboard EEPROM and encryption chip | ||
 Mini Dual Gigabit |
×2 | √ | 3.0×1 | SH1.0 | √ | 5V | dual ETH | |||||
 Dual ETH |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×1 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH, onboard EEPROM and Encryption chip | ||
 Dual ETH 4G/5G |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH and 4G/5G support | ||
 PoE Base |
√ | ×1 | √ | M.2 M KEY | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | USB×4 | |
 Raspberry Pi official |
③ | ×1 | √ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | Official IO base board | |
| Note | ① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). |
|||||||||||
Connecting with Compute Module 5
standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
4G / 5G module compatibility
compatible with communication modules with M.2 B KEY interface
* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8200EA-M2, and SIM8262E-M2.
Supports connecting to M.2 NVMe Drive
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
Applicable M.2 drive sizes
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
More rich interfaces
What's On Board
- CM5 socket
suitable for all variants of Compute Module 5 - 40PIN GPIO header
suitable for connecting to various HAT / HAT+ modules - M.2 M key
supports 2242 / 2230 NVMe Solid State Drives or AI modules - Programming
used for eMMC burning or USB OTG - BOOT switch
switch to ON: burning mode
switch to OFF: system normal startup mode - PSW power button
Long press to force power off, short press to soft power off or on - System indicators
- M.2 M key status indicators
- RTC battery holder
supports CR / ML 1220 button cell - Dual MIPI interfaces
for connecting to DSI displays or CSI cameras - DC power jack
DC 5.5 2.1 jack, supports DC 7V ~ 36V power supply - M.2 B key
supports connecting 4G/5G communication module - Dual USB 3.2 Gen1 ports
USB 3.2 Gen1 Type-A ports, up to 5Gbps
- FAN header
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector - M.2 M key status indicator
keeps blinking when NVMe drive is reading / writing - Dual HDMI ports
supports dual 4K outputs - PoE header
for connecting PoE module, supports PoE power supply through 1000M Ethernet port using PoE switch - 1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections - 2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections - USB to 2500M Ethernet chip
- IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V - Other function pins
Hardware disable function, write protection and chip address selection - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - NANO SIM card slot
- USB3.0 HUB
Outline dimensions
About Compute Module 5
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Balenie Obsahuje / Package Content
- CM5-DUAL-ETH-4G/5G-BASE x1
- Screws pack x1
