Gigabit / 2.5G Dual Ethernet Base Board For Raspberry Pi CM5. Dual RJ45 Ethernet Ports, Dual 4K Display Outputs Dual MIPI (WS-33060)

Base Board + Metal Case + Power Supply

Gigabit / 2.5G Dual Ethernet Base Board For Raspberry Pi CM5. Dual RJ45 Ethernet Ports, Supports Dual 4K Display Outputs And Dual MIPI Interfaces, Onboard 40Pin GPIO Header

Dual Ethernet Base Board for CM5

Designed for Raspberry Pi Compute Module 5

Version Options

CM5-DUAL-ETH-BASE
the base board only

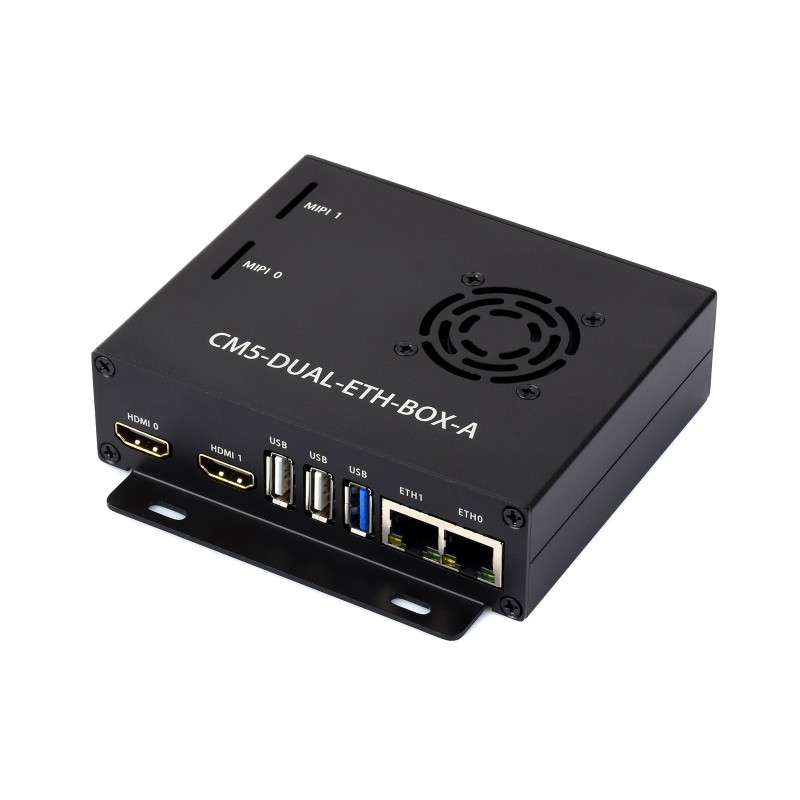

CM5-DUAL-ETH-BOX-A
the base board + metal case + cooling fan + power supply

Specifications

CM5 socket	Suitable for all variants of Compute Module 5
Networking	1000M Ethernet RJ45 port 2500M Ethernet RJ45 port
Connector	Raspberry Pi 40PIN GPIO Header
USB	USB 3.2 Gen1 × 1 USB 2.0 × 2
MIPI	4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
Video	HDMI port × 2, supports dual 4K display outputs
M.2	M.2 M KEY (PCIe Gen2/3 x 1)
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Fan Header	5V, 4PIN JST-SH PWM fan connector
Others	Onboard EEPROM and Encryption chip
Power Input	7V~36V wide voltage range
Dimensions	the base board: 109.0 × 91.5 (mm) the box: 114.6 × 91.5 × 32.9 (mm)

Check the Compute Module 5 variants

What's the differences

CM5 Base Board	Interface count and specifications
CM5 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	MIPI	HDMI	RTC	Fan Header②	Power Input	Features
NANO A			√		3.0×1	×2		SH1.0	√	5V	CM5 sized
NANO B		×1	√	16PIN PCIe	3.0×1	×2	√	SH1.0	√	5V	CM5 sized
mini Base A		×1	√	16PIN PCIe	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size
mini Base B		×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size, onboard EEPROM and encryption chip
Mini Dual Gigabit		×2	√		3.0×1			SH1.0	√	5V	dual ETH
Dual ETH		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×1 2.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH, onboard EEPROM and Encryption chip
Dual ETH 4G/5G		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH and 4G/5G support
PoE Base	√	×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
Note	① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list

Applicable M.2 drive sizes

Suitable with M.2 Solid State Drive dimensions

NVMe Drive Slot Support

Suitable with Solid State Drive Interface

* Only supports the NVMe Protocol Solid State Drives.

More rich interfaces

Features multiple interfaces including ETH / MIPI / HDMI / Micro SD / USB / M.2 B KEY / M KEY , for easy to use

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Dual Ethernet Base Board For Raspberry Pi CM5, Precise hole positioning design

Cooling fan included

comes with cooling fan, combined with the airflow vent, better heat dissipation

Dual Ethernet Base Board For Raspberry Pi CM5, The top of the case is reserved for ventilation openings, built-in fans for better heat dissipation.

* for reference only, please refer to the package content for detailed part list

wall mount support

Wall Mount Holes On Two Sides, handy for mounting.
Reserved Rail-mount buckle mounting holes on the Back for Rail-mount Installation

* for reference only, the rail-mount buckle is not included, please purchase separately if needed

What's On Board

1G / 2.5G Dual Ethernet Base Board designed for CM 5, onboard components

CM5 socket
Suitable for all variants of Compute Module 5
40PIN GPIO header
Suitable for connecting to various HAT / HAT+ modules
Programming
used for eMMC burning
PSW power button
Long press to force power off, short press to soft power off or on
BOOT button
Press before powering on and release it after powering on to enter burning mode
STAT LED
Dual LED indicators
DC power jack
DC-DC power chip
M.2 M KEY
Supports 2280 / 2260 / 2242 / 2230 NVMe Solid State Drives or AI modules
M.2 LED
keeps blinking when NVMe drive reading / writing
MIPI Interfaces
for connecting to DSI displays or CSI cameras
HDMI ports
Supports dual 4K outputs

RTC battery header
for connecting an external RTC battery to maintain real-time clock operation
USB 2.0 HUB chip
USB 2.0 ports
USB 3.2 Gen1 port
supports up to 5 Gbps reading / writing speed
2500M Ethernet RJ45 port
supporting 10M / 100M / 1000M / 2500M network connections
1000M Ethernet RJ45 port
supporting 10M / 100M / 1000M network connections
FAN header
for connecting the cooling fan, 5V, 4PIN JST-SH PWM fan connector
EEPROM and encryption chip
USB to 2500M Ethernet chip
TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
Other function pins
Hardware disable function, write protection and chip address selection
IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V

Application Example

Suitable for Raspberry Pi applications in remote communications or other industrial situations

Dual Ethernet Base Board For Raspberry Pi CM5, Suitable for Raspberry Pi applications in remote communications or other industrial settings

* for reference only, the display and camera module are not included, please purchase separately if needed

Outline dimensions

About Compute Module 5

Raspberry Pi Compute module 5, front view

Newly upgraded, more powerful

Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
More options for RAM (2GB / 4GB / 8GB / 16GB)
More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
Faster eMMC Flash storage, up to 200 Mbps data rate
Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
Adopts B to B connectors, most compatible with Compute Module 4
Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
