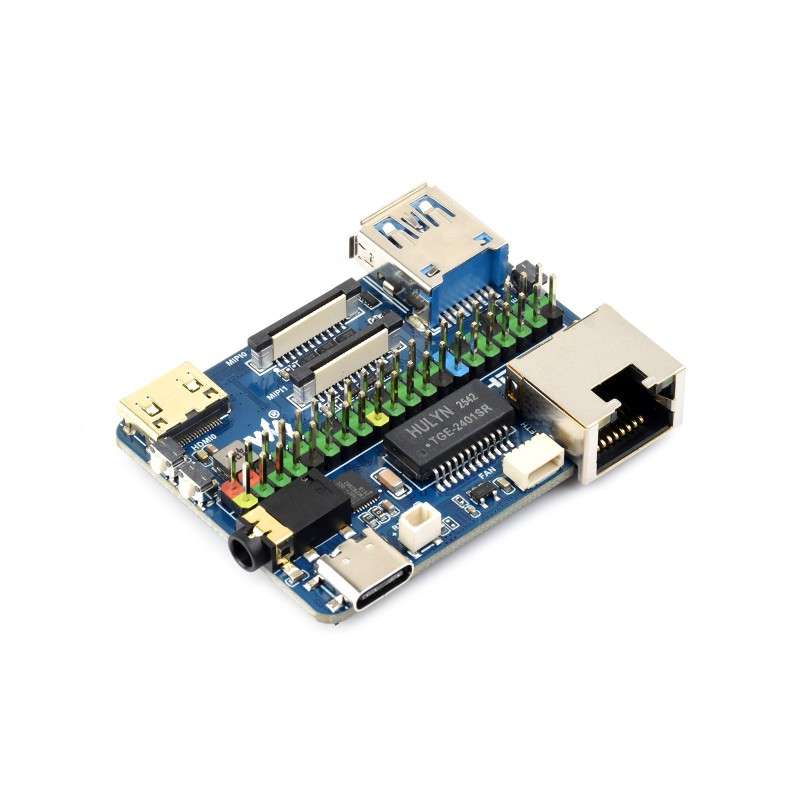

CM5-NANO-B Mini Expansion Board Raspberry Pi Compute Module 5, CM5, 4K HDMI, USB 3.2, Gigabit Ethernet Dual MIPI (WS-33760)

• With pre-soldered header

CM5-NANO-B mini expansion board for Raspberry Pi Compute Module 5, Same Size As The CM5, supports 4K HDMI, USB 3.2, Gigabit Ethernet port, and dual MIPI interfaces

Nano Base Board (B) for CM5

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Base Board for Compute Module 5 Lite / eMMC

Version Options

CM5-NANO-B
standard version



CM5-NANO-B-M
with pre-soldered header

Same Size As The CM5

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments

Note: the CM5 is NOT included. Please buy it separately.

Specifications

CM5 socket	Suitable for all variants of Compute Module 5
Networking	Gigabit Ethernet RJ45 connector
Connector	Raspberry Pi 40PIN GPIO interface × 1
USB	USB 3.2 Gen1 Type A port × 1
MIPI	MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Video	Mini HDMI port × 1, supports 4K output
Audio	USB audio 3.5mm jack
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input	DC 5V 5A
PCIe	16PIN PCIe connector (PCIe Gen2/3 x1)
Dimensions	55 × 41mm

What's On Board

1. CM5 socket
   Suitable for all variants of Compute Module 5
2. PCIe interface
   16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards
3. TF card slot
   for connecting a TF card with pre-burnt image (Lite variant ONLY)
4. Other function pins
   Supports for extended functions
5. Mini HDMI port
   Supports 4K output
6. BOOT button
   Press before powering on and release after powering on to enter the burning mode
7. PSW button
   power button
8. 3.5mm jack
   Audio output



9. Power supply / Programming
   5V power supply, or used for eMMC burning
10. 2PIN JST-SH RTC battery header
11. FAN header
    4PIN JST-SH PWM fan header for connecting a cooling fan
12. RJ45 Gigabit Ethernet port
    for network access
13. Dual-color LED indicator
    Red light: Raspberry Pi power indicator
    Green light: Raspberry Pi working status indicator
14. User button
    connected to GPIO21
15. USB port
    USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
16. Dual MIPI interfaces
    for connecting to DSI displays or CSI cameras
17. 40PIN GPIO interface
    suitable for connecting to various HAT modules

Outline dimensions

About Compute Module 5

Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules



Resources & Services

---

WIKI: www.waveshare.com/wiki/CM5-NANO-B

Balenie Obsahuje / Package Content

CM5-NANO-B-M

1. CM5-NANO-B with pre-soldered headers x1
