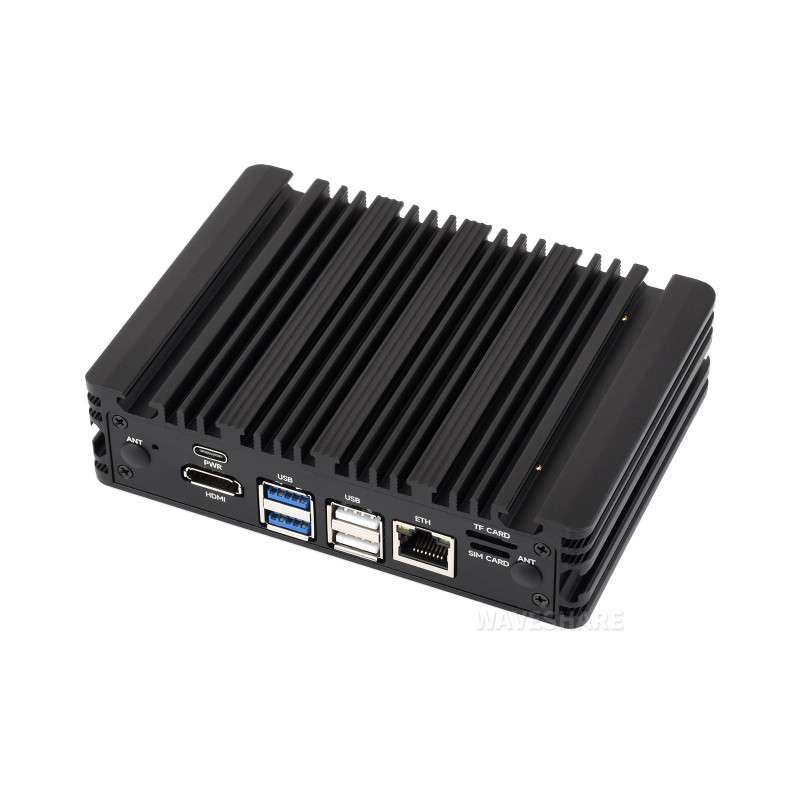

Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45,RS485,4/5G (WS-35749) B

Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45,RS485,4/5G (WS-35749) B

Name: Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45,RS485,4/5G (WS-35749) B
Brand: Waveshare Electronics
SKU: WS-35749
Price: 98.28 EUR
Availability: BackOrder

Reference WS-35749

€98.28

79.90 € tax excl.

Description
Product Details

Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45,RS485,4/5G (WS-35749) B

Part No.:CM5-HMI-BOX-B (EU)
Version : CM5-HMI-BOX-B (2 × RS485 + 2 × RS232)

Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45 port, Supports RS485 And 4G/5G Communication, with aluminum alloy heat dissipation case

Industrial Computer based on
Compute Module 5

Designed for Raspberry Pi Compute Module 5

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, front view

* the Raspberry Pi CM5 is NOT included.

Version Options

CM5-HMI-BOX-A
Onboard 4 × RS485 interfaces

CM5-HMI-BOX-B
Onboard 2 × RS485 + 2 × RS232 interfaces

All versions come with an aluminum alloy case and power supply adapter,
please refer to the package content for the detailed part list.

Specifications

CM5 socket	Suitable for all variants of Compute Module 5
Networking	1000M Ethernet RJ45 port
USB	USB 3.2 Gen1 port × 2
USB	USB 2.0 port × 2
Video	HDMI port × 1, supports 4K display output
M.2	M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242 / 2260 / 2280)
M.2	M.2 B KEY, supports connecting 4G / 5G communication module
Storage	TF card socket for Compute Module 5 Lite (without eMMC) variants
Serial Interface	Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
Serial Interface	1 × CAN with up to 1Mbps communication rate
Digital Input/Output	2 × digital outputs + 2 × digital inputs
Analog Input	2 × ADC analog inputs (Supports 4 ~ 20mA current acquisition by desoldering components)
Fan header	5V, 2 × 4PIN JST-SH PWM fan headers (Select one)
Buzzer	1-ch controllable buzzer
Other	Onboard EEPROM and encryption chip
Power Input	7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
Dimensions	132.50 × 92.00 × 34.50 (mm)

What's the differences

CM5 Base Board	Interface count and specifications
CM5 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	MIPI	HDMI	RTC	Fan Header②	Power Input	Features
NANO A			√		3.0×1	×2		SH1.0	√	5V	CM5 sized
NANO B		×1	√	16PIN PCIe	3.0×1	×2	√	SH1.0	√	5V	CM5 sized
mini Base A		×1	√	16PIN PCIe	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size
mini Base B		×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size, onboard EEPROM and encryption chip
Mini Dual Gigabit		×2	√		3.0×1			SH1.0	√	5V	dual ETH
Dual ETH A		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×1 2.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH, onboard EEPROM and Encryption chip
Dual ETH B		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×1 2.0×1	×2	×1	SH1.0	√	5V	dual ETH ports
Dual ETH 4G/5G		1G ×1 2.5G ×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	7V~36V	dual ETH and 4G/5G support
PoE Base	√	×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M KEY	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
IPCBOX-CM5		1G ×1 2.5G ×1		M.2 M KEY	3.0×1 2.0×3		×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support, RS485/RS232, Encryption chip, EEPROM, CAN, digital inputs, digital outputs, audio, an buzzer
CM5 Dual ETH Multi-function		1G ×1 2.5G ×1		M.2 M KEY	3.0×1 2.0×2	×2	×1	SH1.0	√	7V~36V	dual ETH, 4G/5G support, RS485, Encryption chip, digital input, relay, and buzzer
CM5 Wireless Extension		1G ×1		M.2 M KEY, M.2 B KEY/Mini-PCIe	3.0×1 2.0×2	×2	×1	ML/CR1220	√	5V or 7V~36V	5G/4G, Lora, RS485, CAN, and rail-mount support
CM5-HMI-BOX		1G ×1		M.2 M KEY	3.0×2 2.0×2	×2	×1	SH1.0	√	7V~36V	4G/5G support, RS485/RS232, Encryption chip, EEPROM, CAN, digital inputs, digital outputs, an buzzer, power-Loss protection
Note	① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

* for reference only, please refer to the package content for detailed part list

4G / 5G module compatibility

compatible with communication modules with M.2 B KEY interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Supports M.2 NVMe Solid State Drive

* for reference only, please refer to the package content for detailed part list.

Applicable M.2 drive sizes

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable with M.2 Solid State Drive dimensions

NVMe Drive Slot Support

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable with Solid State Drive Interface

* Only supports the NVMe Protocol Solid State Drives.

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Precise hole positioning design

Supports Rail mounting and VASE mounting

Reserved Rail-mount buckle and VASE mounting holes for more convenient installations

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, The top of the case is reserved for ventilation openings, built-in fans for better heat dissipation.

* for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

Heat Dissipation Design

Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

What's On Board

Dual Ethernet 4G/5G Base Board designed for CM 5, onboard components

CM5 socket
suitable for all variants of Compute Module 5
TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY)
Type-C port
for power supply, eMMC flashing, or USB OTG
FAN connector
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ⑧, only one connector can be used to connect a fan at a time)
Serial communication indicators
Dual MIPI interfaces
for connecting to DSI displays or CSI cameras
RTC Batt header
supports RTC Batt for powering the RTC
FAN connector
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ④, only one connector can be used to connect a fan at a time)
5V output header
PSW power button
Long press to force power off, short press to soft power off or on
BOOT button
press before powering on to enter the burning mode
System function indicators
M.2 M KEY
supports 2280 / 2260 / 2242 / 2230 NVMe Solid State Drives or AI modules

M.2 B KEY
supports connecting 4G/5G communication module
RS485 terminal resistor jumper
No function for RS232
RS485 / RS232 interface
Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
CAN terminal resistor jumper
Multi-function interface
1 × CAN interface with up to 1Mbps, 2 × digital inputs, 2 × digital outputs, and 2 × analog inputs
DC power screw terminal
supports DC 7V ~ 36V power supply
Buzzer
Power-Loss protection capacitors
Charging enable jumper
Set the jumper to ON to charge the supercapacitor. Charging automatically stops when the capacitor is fully charged
HDMI port
supports 4K output
Dual USB 3.0 ports
2 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
Dual USB 2.0 ports
2 × standard USB 2.0 Type-A port
1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections
Nano SIM card slot

How to install

Step 1: Install the standoffs ① at the positions shown.

Step 2: Install the CM5 module on the back of baseboard, and attach the pink thermal tapes.

Step 3: Install the baseboard with the CM5 installed onto the top cover and secure it with the silver screws ②.

Step 4: Install the front and rear covers and secure them with the black screws ③, then install the antenna rubber plugs ④, and remove the sticker from the buzzer.

Step 5: Install the bottom cover and secure it with the black screws ③, then install the double-layer terminal blocks ⑧.

Step 6: Secure the rail-mount buckle ⑦ to the host with the T-nuts ⑥ and black screws ⑤, then connect the power adapter cable ⑨.

* for reference only, please refer to the package content for detailed part list.

Application Example

Suitable for Raspberry Pi applications in remote communication or other industrial situations

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable for Raspberry Pi applications in remote communications or other industrial settings

* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.

Outline dimensions

About Compute Module 5

Raspberry Pi Compute module 5, front view

Newly upgraded, more powerful

Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
More options for RAM (2GB / 4GB / 8GB / 16GB)
More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
Faster eMMC Flash storage, up to 200 Mbps data rate
Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
Adopts B to B connectors, most compatible with Compute Module 4
Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
