RP2350-Touch-AMOLED-2.41 is a high-performance, highly integrated MCU board designed by Waveshare. It features a compact size with an onboard 2.41inch AMOLED capacitive touch display, RTC chip, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), TF card slot and so on, making it easy to develop and integrate into products quickly.

• RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
• 520KB of SRAM, 16MB onboard Flash memory and 2MB PSRAM
• Type-C connector for easier use

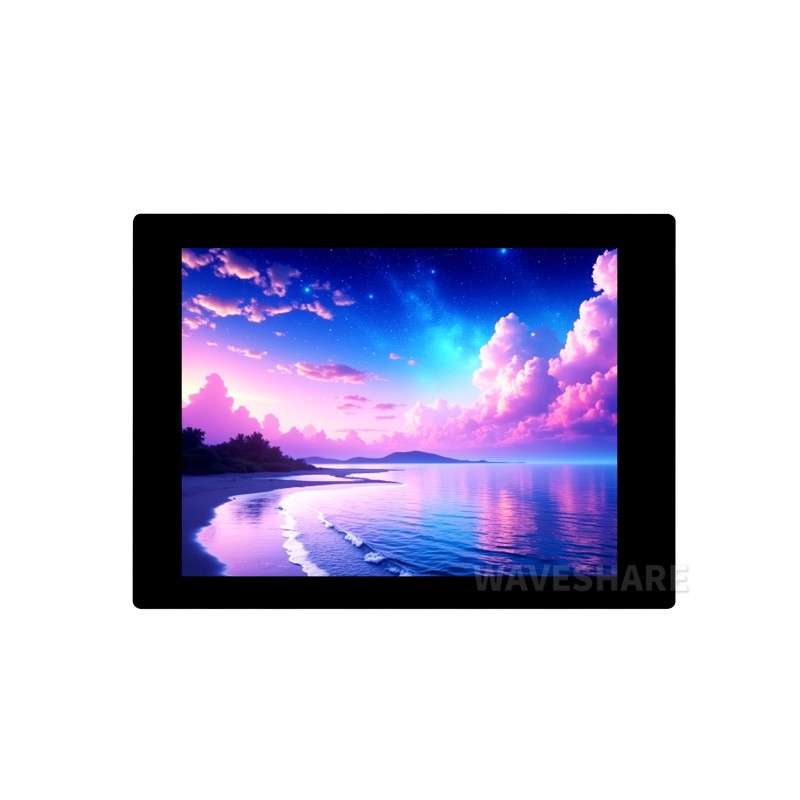

• Onboard 2.41inch AMOLED capacitive touch display for clear color picture display, 450 × 600 resolution, 16.7M color
• Built-in RM690B0 display driver and FT6336 capacitive touch chip, using QSPI and I2C communication respectively
• Lithium battery recharge/discharge header, suitable for mobile applications
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 21 × multi-function GPIO pins
• 2 × I2C, 2 × UART, 6 × 12-bit ADC, 15 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support
