RP2350-Touch-LCD-1.46 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.46inch capacitive touch IPS screen, RTC chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), TF card slot, and so on, which makes it easy for you to develop and integrate into the products quickly.

• RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
• 520KB of SRAM, 16MB onboard Flash memory
• Type-C connector for easier use

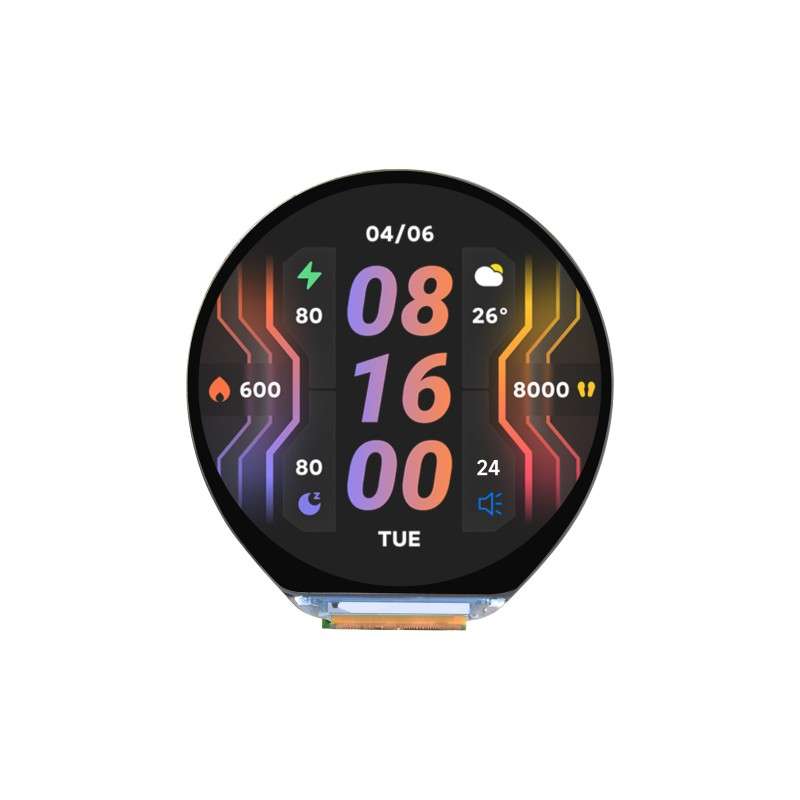

• Onboard 1.46inch LCD display, 412×412 resolution, 65K color
• Supports 5-point touch function controlled via I2C interface, with interrupt support
• Onboard 3.7V MX1.25 lithium batt. recharge/discharge header
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 14 × Multi-Function GPIO Pins
• 2 × I2C, 2 × UART, 7 × 12-bit ADC and 12 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• 12 × Programmable I/O (PIO) state machines for custom peripheral support
