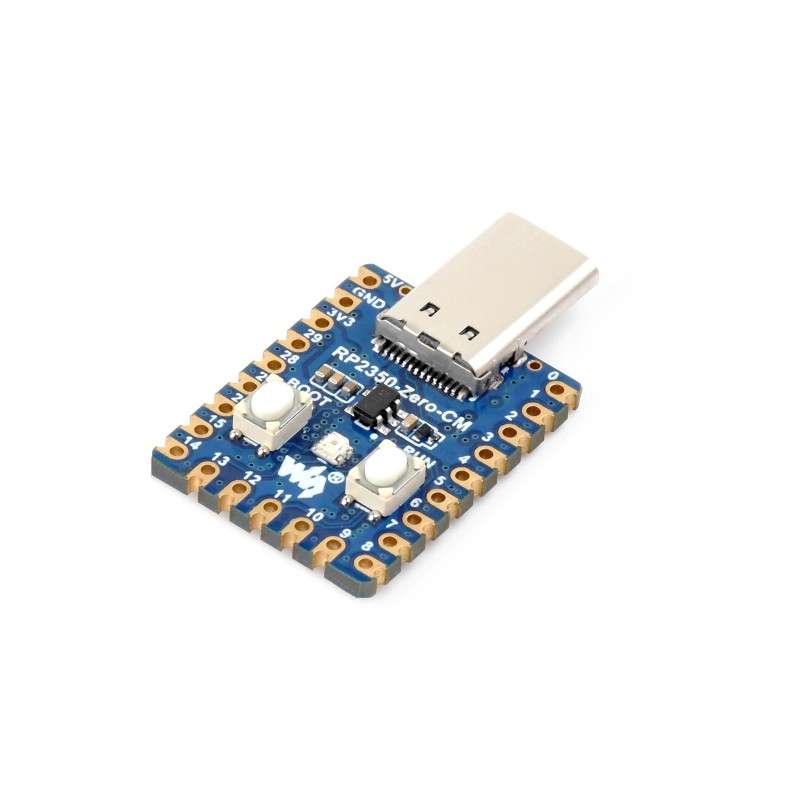

RP2350-Zero-CM Mini Dev.Board USB-C Male Port, Castellated Module, 12x Programmable I/O (PIO) State Machines (WS-34959)
WS-34959
€4.91
3.99 € tax excl.
RP2350-Zero-CM Mini Dev.Board USB-C Male Port, Castellated Module, 12x Programmable I/O (PIO) State Machines (WS-34959)
RP2350-Zero-CM Mini Dev.Board USB-C Male Port, Castellated Module, 12x Programmable I/O (PIO) State Machines (WS-34959)
- Part No.: RP2350-Zero-CM
RP2350-Zero-CM Mini Development Board, dual-core and dual-architecture, onboard Type-C male port, castellated module, 12 × Programmable I/O (PIO) state machines
RP2350-Zero-CM Mini Development Board
Adapting all GPIOs and onboard USB Type-C port, based on Raspberry Pi RP2350A
Castellated module, suitable for SMD applications
Board specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor or dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
- 520KB Static RAM, and onboard 4MB Flash memory
- Type-C male port design
- Supports power supply via Type-C port (PD compatible)
- Castellated module allows soldering directly to carrier boards
- USB1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20 × via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Built-in temperature sensor for real-time monitoring of chip temperature
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
C/C++, MicroPython, Arduino support
Comprehensive SDK, dev resources, tutorials to help you easily get started
dual-core, dual-architecture
The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
29 × multi-function GPIO pins
configurable pin function, allows flexible development and integration
What's On Board
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency - 4MB NOR Flash
- Debug interface
- RP2350A GPIO pins
Adapting 10 × solder points, including 9 GPIO pins - USB Type-C male port
for downloading programs, USB 1.1 with device and host support
- ME6217C33M5G
Low dropout regulator, 800mA output (Max.) - RUN reset button
- BOOT button
press it when resetting to enter download mode - WS2812
Cool RGB LED
outline dimensions
Balenie Obsahuje / Package Content
RP2350-Zero-CM x1
WS-34959
