20kg.cm Large Torque 180° Digital Servo WP5320, Waterproof,Dustproof (WS-31512)
WS-31512
€14.64
11.90 € tax excl.
20kg.cm Large Torque 180° Digital Servo WP5320, Waterproof,Dustproof (WS-31512)
20kg.cm Large Torque 180° Digital Servo WP5320, Waterproof,Dustproof (WS-31512)
- WP5320
20kg.cm Large Torque 180° Digital Servo, Copper Gear / Steel Gear, Comes With Multiple Servo Arms For Flexible Assembly, Waterproof And Dustproof Design
20kg.cm
Large Torque 180° digital servo
Large Torque 180° digital servo
Large Torque | Copper gear or Steel gear | Metal middle case
version options
WP5320
20kg.cm@7.4V torque, adopts copper gears
WP5335
35.5kg.cm@7.4V torque, adopts steel gears
Specifications
| Model | WP5320 Servo | WP5335 Servo |
|---|---|---|
| Product type | PWM digital servo | |
| Torque | 20kg.cm@7.4V | 35.5kg.cm@7.4V |
| Protection level | IP54 | |
| Rotation angle | 180° (500μsec → 2500μsec) | |
| Mechanical limited angle | No Limit | |
| Operating voltage | 4V ~ 8.4V | |
| Encoder type | Carbon film potentiometer | |
| Signal frequency | 50Hz | |
| Gear material | Copper gear | Steel gear |
| No-load speed | 0.151sec/60° (66RPM) @7.4V | 0.192sec/60° (52RPM) @7.4V |
| No-load current | 120mA | 180mA |
| Locked-rotor current | 3A@7.4V | 3.9A@7.4V |
| Kt | 6.5kg.cm/A | 10kg.cm/A |
Two gear material options, with dual ball bearings
The gear shaft is reinforced to 5.9mm, and features dual ball bearings design for longer lifespan
WP5320
Adopts a combination of copper and aluminum gears, lightweight and durable
WP5335
Adopts all steel gears for high strength and impact tolerance
Comes with multiple servo arms for more flexible assembly methods
Allows Controlling Up To 16 Servos At The Same Time via Raspberry Pi Servo HAT
* for reference only, the Raspberry Pi and Servo Driver HAT are NOT included.
Waterproof and dustproof design, suitable for various usage environments
The protection level of the servo is IP54, with internal sealing process and added waterproof rubber rings at joints to enhance protection and adapt to various environments
application scenarios
RC Car
RC Boat
Aircraft Model
* for reference only, please refer to the Package Content for the detailed part list.
Pin definition
Outline Dimensions

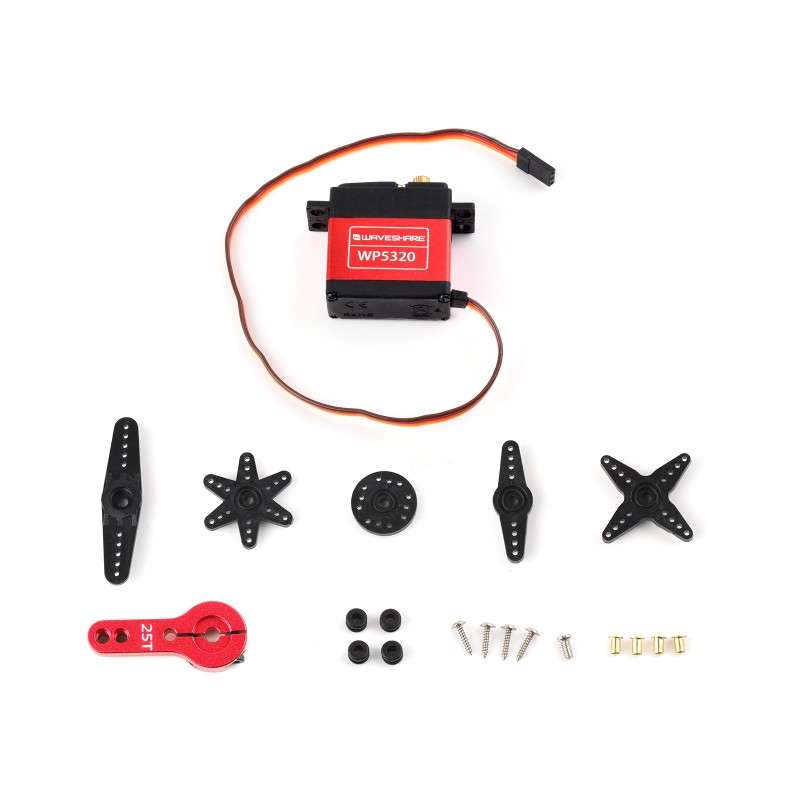

Balenie Obsahuje / Package Content
WP5320
WP5320 × 1
WS-31512
