    WS-34170
    €15.87

    12.90 € tax excl.

    PCIe To M.2 HAT With I2S Audio Extension For Raspberry Pi,  NVMe, 3.5mm Headphone Jack And RCA Connector, Driver-free (WS-34170)

    Quantity :
    OUT OF STOCK

    PCIe To M.2 HAT With I2S Audio Extension For Raspberry Pi,  NVMe, 3.5mm Headphone Jack And RCA Connector, Driver-free (WS-34170)

    PCIe To M.2 HAT With I2S Audio Extension For Raspberry Pi, Supports NVMe Protocol Solid State Drive, Onboard 3.5mm Headphone Jack And RCA Connector, Driver-free

    PCIe To M.2 HAT With I2S Audio

    Designed For Raspberry Pi 5, Driver-free, Plug and Play

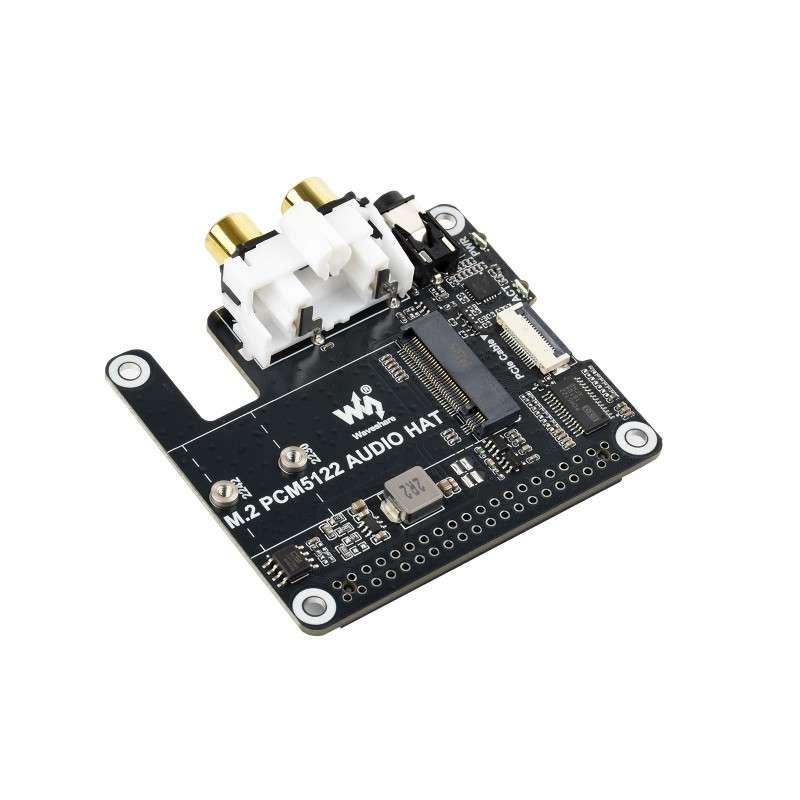

     M.2-PCM5122-AUDIO-HAT, front view
    Features
    • Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
    • Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
    • Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
    • Built-in RCA connector for use with speaker and other devices in a variety of scenarios
    • Supports sampling frequency up to 384KHz
    • Supports up to 32-bit resolution audio data
    • Supports 2230 / 2242 size M.2 Solid State Drive or M.2 M KEY AI module
    • Supports M.2 M KEY with up to 8 Gbps data rate
    Connecting to PI5 via 16PIN Cable

    Based on 16PIN PCIe Interface of Raspberry Pi 5

    M.2-PCM5122-AUDIO-HAT, Connecting to Pi 5 via 16PIN Cable

    * for reference only, please refer to the package content for detailed part list.

    NVMe Drive Protocol Support

    Compatible With 2230 / 2242 Size M.2 Solid State Drive, supports Gen2 Mode,
    Supports M.2 M Key AI modules and Booting PI5 From Solid State Drive

    M.2-PCM5122-AUDIO-HAT, NVMe Drive Protocol Support
    PCM5122 Audio Chip

    Stereo decoder, controlled through I2C, with audio transmitted via I2S

    M.2-PCM5122-AUDIO-HAT, onboard PCM5122 Audio Chip
    NVMe Drive Slot Support
    M.2-PCM5122-AUDIO-HAT, NVMe Drive Slot Support

    * Only supports the NVMe Protocol Solid State Drives.

    Improves reading/writing speed of your Pi

    Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

    M.2-PCM5122-AUDIO-HAT, Supports booting Pi5 from NVME Solid State Drive

    *for reference only, the Raspberry Pi 5 board and other accessories are NOT included,
    please refer to the package content for detailed part list.

    Onboard Dual LED Indicators

    Easy to monitor the Working Status

    M.2-PCM5122-AUDIO-HAT, Onboard Dual LED Indicators


    Onboard Headphone Jack & RCA connector

    Onboard standard 3.5mm headphone jack, supports audio playback via external headphones, and features RCA connector for connecting external speaker

    M.2-PCM5122-AUDIO-HAT, Onboard Headphone & RCA connector
    Onboard EEPROM Chip

    Used for automatic driver loading in Raspberry Pi OS

    M.2-PCM5122-AUDIO-HAT, onboard EEPROM Firmware
    Pin definition
    M.2-PCM5122-AUDIO-HAT, pin definition

    Outline dimensions
    M.2-PCM5122-AUDIO-HAT, outline dimensions
    Resources & Services

    Balenie Obsahuje / Package Content

    1. M.2 PCM5122 AUDIO HAT x1
    2. 2*20pin header 2.54 mm pitch x1
    3. 16P-Cable-40mm x1
    4. Screws pack x1
