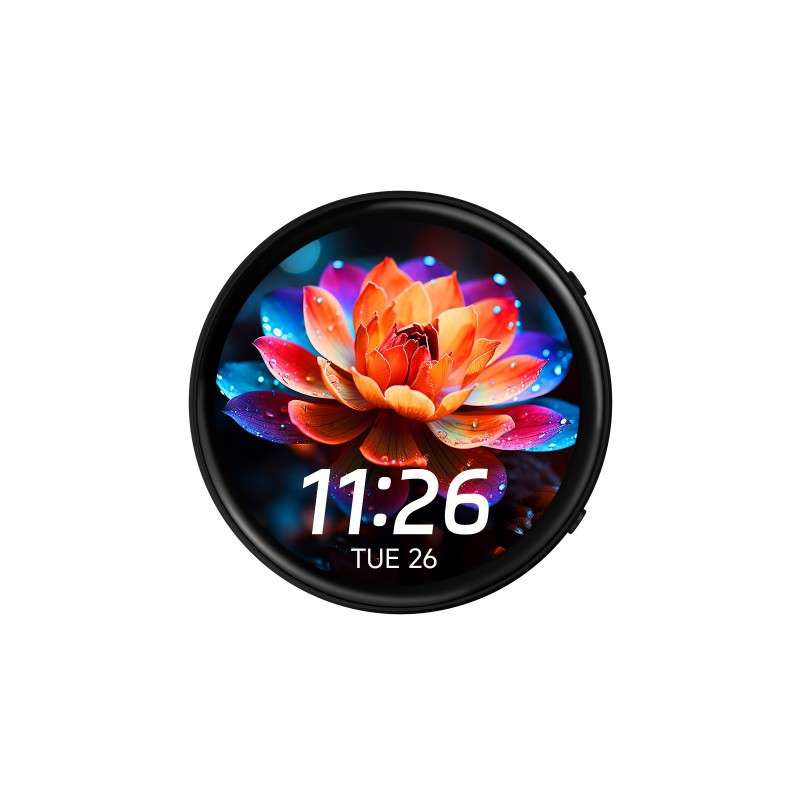

The T5-E1-Touch-AMOLED-1.75 a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.75inch capacitive AMOLED display, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC, dual audio ADC chips, audio DAC chip, and so on, which makes it easy for you to develop and integrate it into products quickly.

• Equipped with Armv8-M STAR-MC1 MCU, up to 480MHz frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n/ax) and Bluetooth 5.4 (Bluetooth LE), with onboard antenna
• Built-in 640KB Static RAM and 64KB ROM, with onboard 16MB PSRAM and external 8MB Flash memory
• Onboard 1.75inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
• Built-in CO5300 display driver and CST9217 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Type-C port, easier to use
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion posture, step counting, and other functions
• Onboard PCF85063 RTC chip for precise timekeeping and automatic leap year handling
• Onboard PWR and KEY programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
• Onboard 8PIN 2.54mm pitch female header, adapting 5 × GPIO pins with reserved pads for connecting external devices and debugging, flexible peripheral configuration
• Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit design
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
