Wireless MINIPCIE RTL8852BE NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX, Bluetooth 5.2 (WS-31594)
WS-31594
€11.06
8.99 € tax excl.
Wireless MINIPCIE RTL8852BE NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX, Bluetooth 5.2 (WS-31594)
Wireless MINIPCIE RTL8852BE NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX, Bluetooth 5.2 (WS-31594)
Wireless MINIPCIE RTL8852BE NIC, Gigabit Dual-Band Wi-Fi 6, 802.11AX Standard, Bluetooth 5.2
Wi-Fi 6 Wireless MiniPCIe RTL8852BE NIC
Dual-Band
Bluetooth 5.2
Wi-Fi 6
Features at a glance
- Supports 2.4GHz / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band
- Supports Bluetooth 5.2 standard, compatible with Bluetooth 2.1 + EDR
- Adopts MiniPCIe interface
- Supports 802.11ac/ax 2×2 Wave-2 MU-MIMO
- Supports Linux, Windows 10/11, etc.
Parameters Comparison
| Model |  AX210 |
 AX200 |
 RTL8852BE |
|||||
|---|---|---|---|---|---|---|---|---|
| Wi-Fi Version | Wi-Fi 6E | Wi-Fi 6 | ||||||
| Wi-Fi Band | 2.4GHz | 5GHz | 6GHz | 2.4GHz | 5GHz | 2.4GHz | 5GHz | |
| Wi-Fi Rate | 574Mbps | 2400Mbps | 2400Mbps | 574Mbps | 2400Mbps | 574Mbps | 1200Mbps | |
| Interface | MiniPCIe Interface | |||||||
| Bluetooth Version | 5.3 | 5.2 | ||||||
| Technical Support | MU-MIMO | |||||||
| Antenna Connector | IPEX-4 Connector | |||||||
| System Support | Linux, Windows 10/11 | |||||||
| Dimensions | 29.9 × 26.8 × 3.24 (mm) | |||||||
Adopts RTL8852BE Core
Supports IEEE 802.11a/b/g/n/ac/ax
Dual-band Wi-Fi
Supports 2.4GHz / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band
Bluetooth 5.2, More Stable Connection
Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission
Support MU-MIMO Technology
Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency

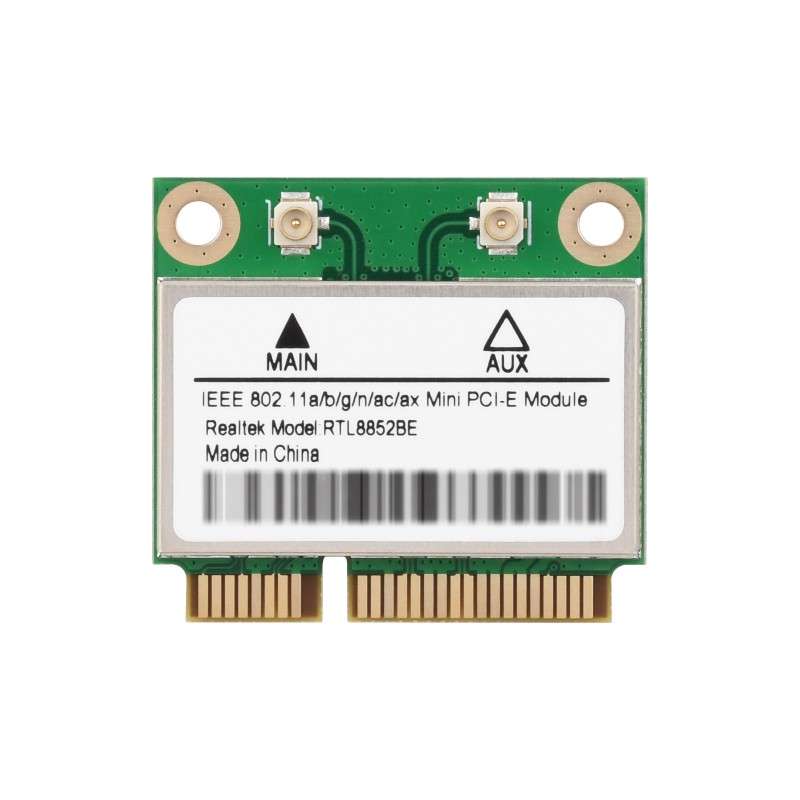

Interface Introduction
Access to antenna via IPEX connector
Outline dimensions
Balenie Obsahuje / Package Content
- Wireless-MINIPCIE-RTL8852BE × 1
- IPEX 1 to SMA cable × 2
- 6DB antenna × 2
- Screwdriver × 1
- MINIPCIe mounting bracket × 1
- Screws pack × 1
