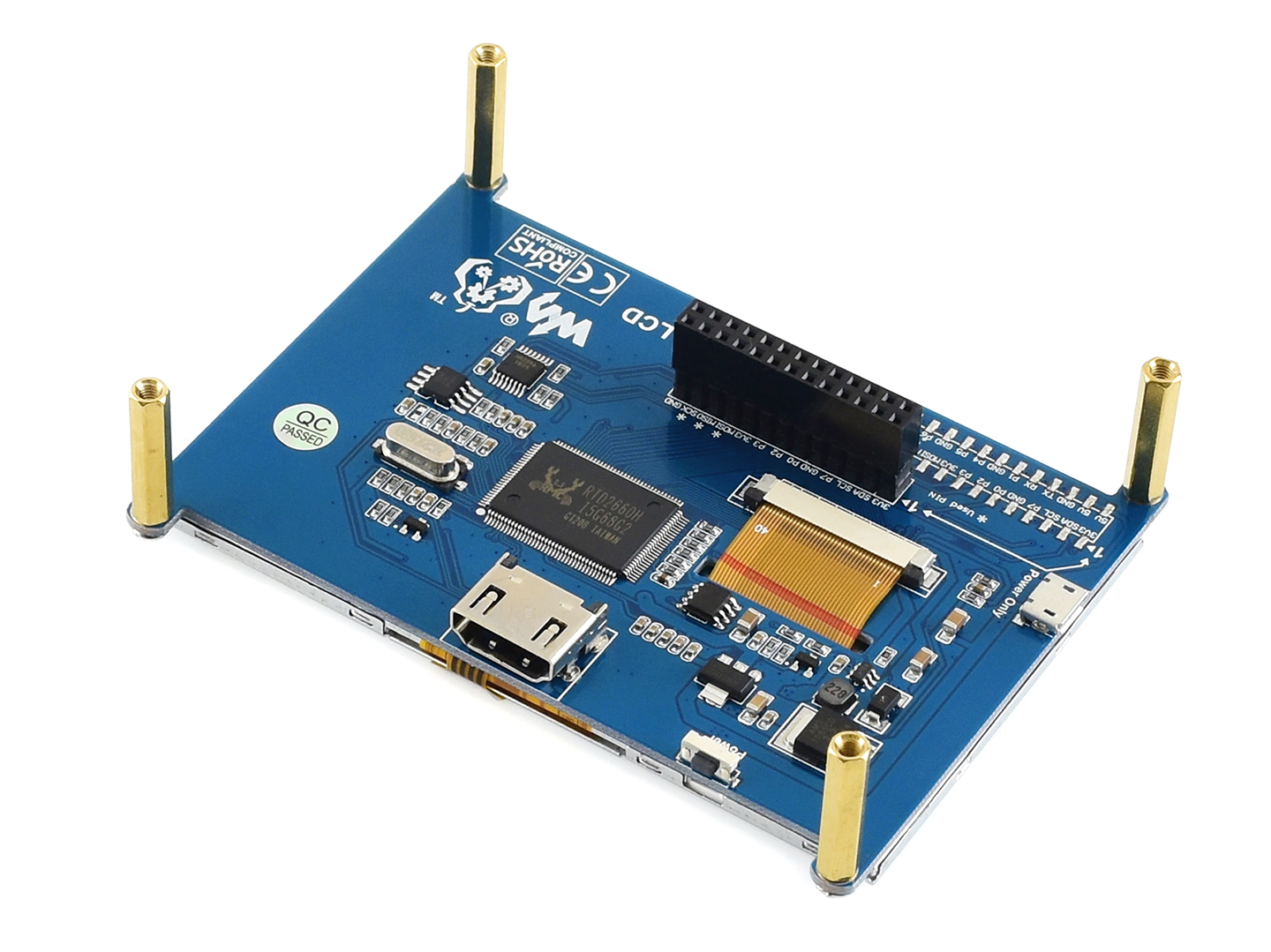

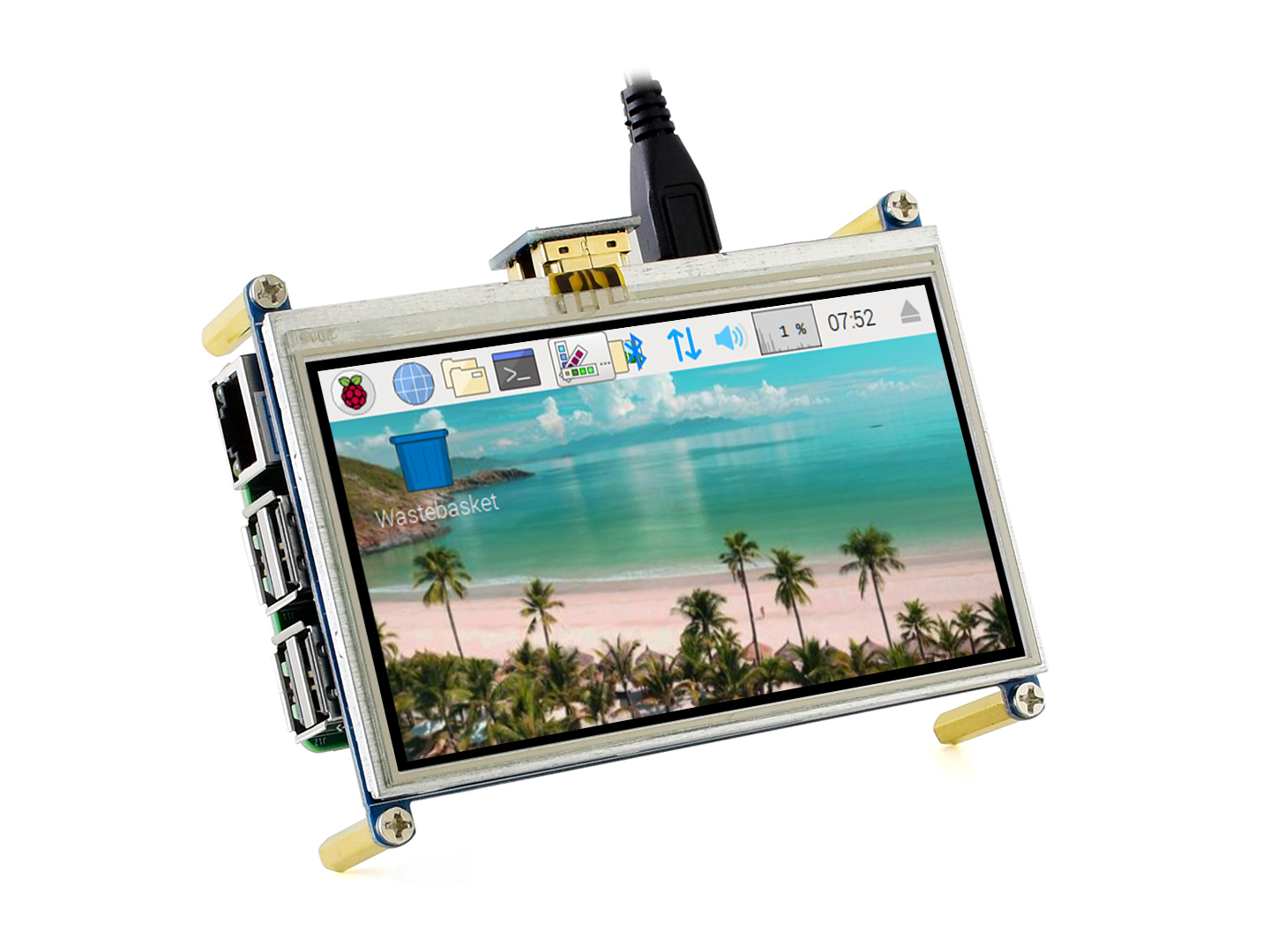

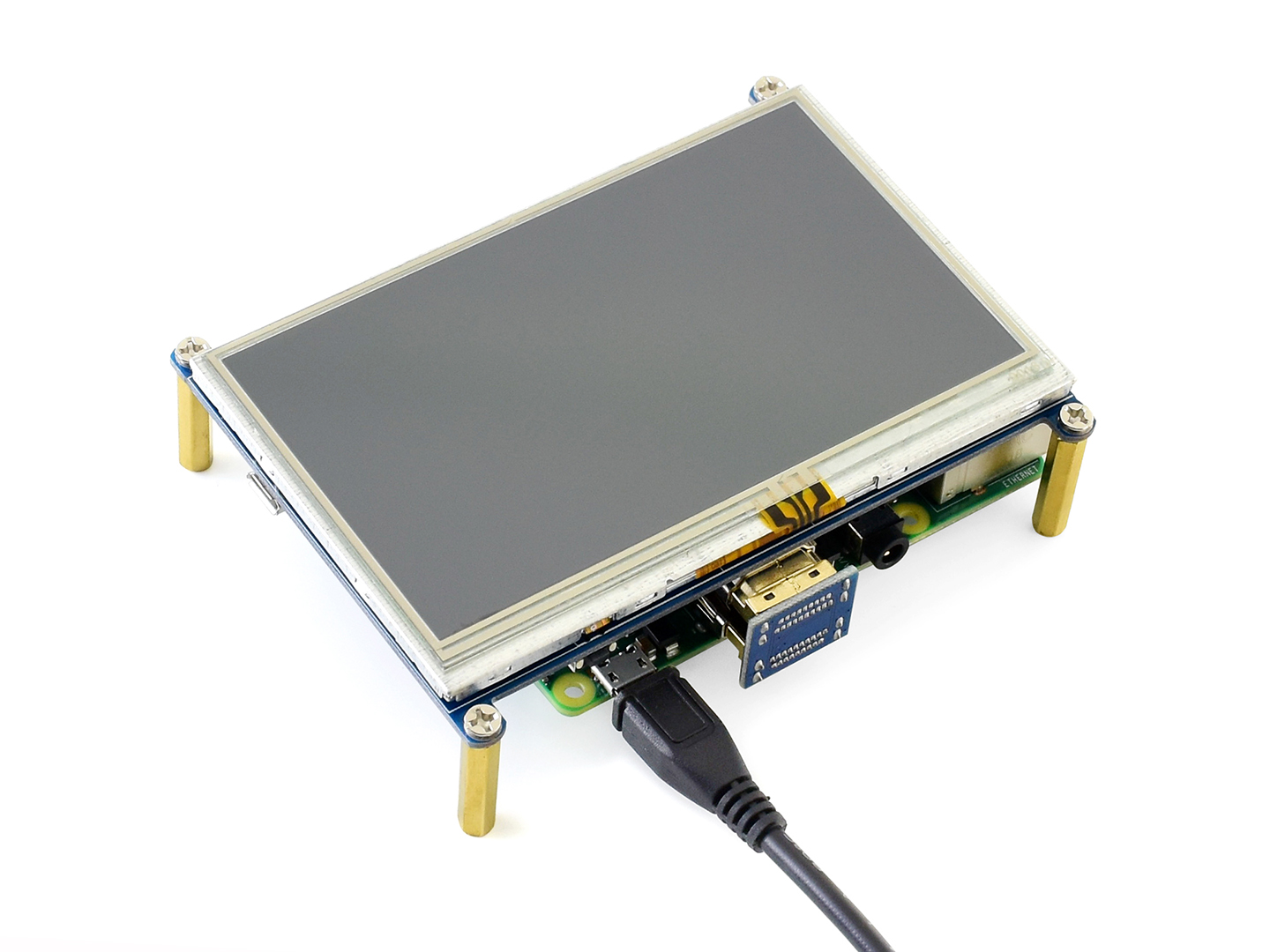

      DESCRIPTION

      4.3inch Resistive Touch Screen LCD, HDMI interface, Designed for Raspberry Pi

      Features

      • 480×272 high resolution
      • Resistive touch control
      • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
      • Drivers provided (works with your own Raspbian/Ubuntu directly)
      • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
      • Backlight can be turned off to lower power consumption

      Photos

      4.3inch-HDMI-LCD-1_180.jpg4.3inch-HDMI-LCD-2_180.jpg4.3inch-HDMI-LCD-3_180.jpg4.3inch-HDMI-LCD-4_180.jpg4.3inch-HDMI-LCD-5_180.jpg4.3inch-HDMI-LCD-6_180.jpg4.3inch-HDMI-LCD-7_180.jpg4.3inch-HDMI-LCD-8_180.jpg

      Interface

      PIN NO.SYMBOLDESCRIPTION
      1, 17 3.3V Power positive (3.3V power input)
      2, 4 5V Power positive (5V power input)
      3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
      6, 9, 14, 20, 25 GND Ground
      19 TP_SI SPI data input of Touch Panel
      21 TP_SO SPI data output of Touch Panel
      22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
      23 TP_SCK SPI clock of Touch Panel
      26 TP_CS Touch Panel chip selection, low active

      External Dimension

      4.3inch-HDMI-LCD-dimension

      Development Resources

      Wiki : www.waveshare.com/wiki/4.3inch_HDMI_LCD

      FAQ

      Why the LCD doesn't work with my Raspbian?
      To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
      However, for the first testing, you may want to use our provided image directly.
      Why the LCD still doesn't work with the Waveshare provided image?
      Make sure the hardware connection is correct and connects fine.
      Make sure the image in TF card is burnt correctly.
      The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
      Which power supply should I use?
      It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.

      For more info, please check the wiki page.

      Selection Guide

      Part NumberResolutionLCD InterfaceTouch Panel InterfaceFor use withDimension (mm)Touch Panel TypeHow you feelFeature
      2.8inch RPi LCD (A) 320x240 I/O I/O Pi As the Pi 3B Resistive ★★ Low cost
      3.2inch RPi LCD (B) 320x240 I/O I/O Pi As the Pi 3B Resistive ★★ -
      3.5inch RPi LCD (A) 480x320 I/O I/O Pi As the Pi 3B Resistive ★★★ Cost effective
      3.5inch RPi LCD (B) 480x320 I/O I/O Pi As the Pi 3B Resistive ★★★ IPS screen
      3.5inch HDMI LCD 480x320 HDMI I/O Pi As the Pi 3B Resistive ★★★★☆ IPS screen
      4inch RPi LCD (A) 480x320 I/O I/O Pi 94 x 61 Resistive ★★★☆ IPS screen
      4inch HDMI LCD 800x480 HDMI I/O Pi 99 x 58 Resistive ★★★★☆ IPS screen
      4.3inch HDMI LCD 480x272 HDMI I/O Pi 106 x 68 Resistive ★★★★ Cost effective
      5inch HDMI LCD 800x480 HDMI I/O Pi 121 x 78 Resistive ★★★★ Low cost
      5inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 121 x 76 Resistive ★★★★ Supports various systems
      7inch HDMI LCD 1024x600 HDMI I/O Pi 165 x 107 Resistive ★★★★☆ Cost effective
      7inch HDMI LCD (B) 800x480 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★☆ Supports various systems
      7inch HDMI LCD (C) 1024x600 HDMI USB Not only Pi 165 x 107 Capacitive ★★★★★ IPS screen, Supports various systems
      7inch HDMI LCD (H) 1024x600 HDMI USB Not only Pi 191 x 115 Capacitive ★★★★★ IPS screen, Supports various systems
      10.1inch HDMI LCD 1024x600 HDMI I/O Pi 235 x 144 Resistive ★★★★☆ Cost effective
      10.1inch HDMI LCD (B) 1280x800 HDMI USB Not only Pi 274 x 187 Capacitive ★★★★★ IPS screen, Supports various systems
      10.1inch HDMI LCD (D) 1280x800 HDMI USB Not only Pi 258 x 177 Capacitive ★★★★★ IPS screen, Supports various systems
      10.1inch HDMI LCD (H) 1024x600 HDMI USB Not only Pi 257 x 162 Capacitive ★★★★☆ Supports various systems
      13.3inch HDMI LCD (H) 1920x1080 HDMI USB Not only Pi 330 x 208 Capacitive ★★★★★ IPS screen, Supports various systems

      Note :
      Pi 3B = Raspberry Pi 3 Model B
      If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.

      Have a look :
      RPi LCD Comparing

      Waveshare Electronics
      WS-11865
